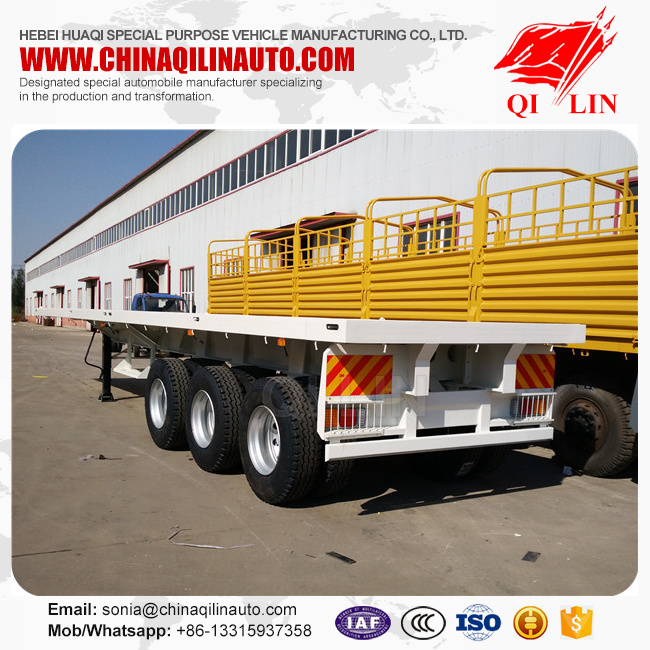

Model Number

QLG9400GHY

Rated Load

55000 kg

Tare Weight

8000 kg

Wheel Base

6810+1310+1310 (mm)

Tyre Specifications

1100R20-18/12R22.5-18

No. Of the Tyres

12

Axle Brand

FUWA (BPW optional)

No. Of the Axles

3

Axle-load

13000kg

King Pin

50#/90#

Landing Leg

28ton

Pieces of leaf-spring

10 (8)

Suspension

Independent stamping steel rigid suspension ( air suspension)

Departure Angle

13

Front/Rear Overhang

2200 mm

Outside Dimensions (LxWxH)

13000X2500X1650 (mm)

Interior Dimensions (LxWxH)

Material of the Main Beam

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system /ABS

Brake Air Chamber

Six double chamber

Electrical

24V  7 ways(7 wire harness)

Optional

12 sets twistslocks can be installed for transporting 2x20' or 40'containers

Usage

is suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.

Other Descriptions

The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing.

Other Specifications

The max height of the rear guard from ground is 550mm, and the cross section is 180mmx70mm.
