Model Number

QLG9402GLT

Rated Load

35000 kg-45000 kg

Tare Weight

8000 kg

Wheel Base

9270+1310, 8770+1310(mm)

Tyre Specifications

8.25R20 16PR（Vacuum tyre or rail tyre)

No. Of the Tyres

8

Axle Brand

FUWA (BPW optional)

No. Of the Axles

2

King Pin

50#/90#

Landing Leg

28ton

Pieces of leaf-spring

10 /9/13

Suspension

Independent stamping steel rigid suspension

Departure Angle

17

Front/Rear Overhang

1820 mm

Outside Dimensions (LxWxH)

13000,12500X3000, 2800X3150,1710 (mm)

Material of the Main Beam

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system/ABS

Brake Air Chamber

Four double chamber

Electrical

24V  7 ways(7 wire harness)

Usage

Is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.

Other Descriptions

The cargo platform is lower than others, is applicable for unsound road condition, ensuring the stablenessof the transportation.

Other Specifications

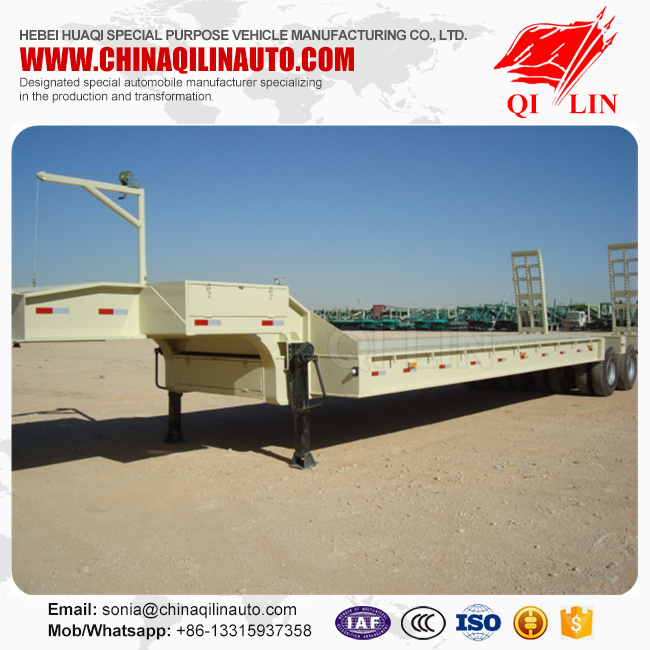

It's concave structured with tyre appeared style, the height of the  cargo's carrying platform from ground is 900mm (the ladders belong to optional components), with the overall height of 1710 mm. The max height of the rear guard from ground is 420mm.
