Manufacturer Name | Hebei Huaqi Special Automobile Manufacturing Co.,LTD | |

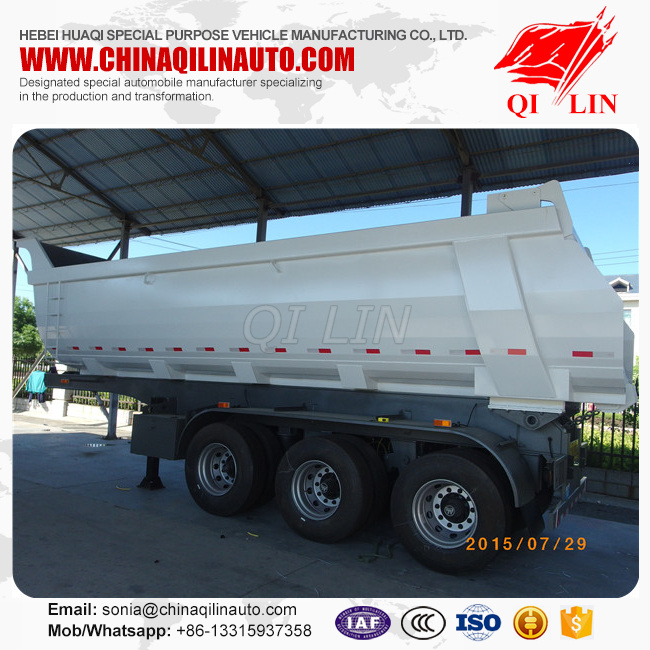

Type | Gooseneck dump trailer | |
Weight: | ||
Tare Weight | 8.5T-10T | |
Payload | 80T-100T(25m3--37m3) | |
Axle Weight Load | 14T/16T/20T per axle | |
Specification: | ||
Axle number | Three | |
Axle specs. | FUWA /BPW brand | |
Suspension | mechanical suspensions | |
King Pin | 50#/90# | |
Dimensions | 11280×2495×3970mm(Outside) | |
Rim | 9.00*22.5 | |
Lifting system | Full set of Hyva/Jiuzhouzhongli hydraulic system | |
Steel Spring | 10pieces | |
Tire: | ||
Tire specs. | 12.00R22.5-18 | |
Number of Tire | 12pieces | |
Spare Tire Carriers | 2 pieces | |
Frame: (specs. and materials) | Main frame is height 500mm . | |
Frame Beam | Upper and lower plate is20mm,middle is10mm(Double+three plate).height is 500 mm | |
Frame Floor | The Thickness is 3mm flat bed | |
Brake Chamber | ||
Two double and two single chamber | ||
Electrical: | ||
Voltage | 24V | |
Receptacle | 7 ways(7 wire harness) | |
Light color: | ||
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Landing Leg support: | 28ton | |
Miscellaneous: | ||
Side Guard | According to the requirement of the buyer | |
