MAIN DESCRIPTION | |
Overall Dimension | 11000*2500*3600MM ( L*W*H ) |
Tare Weight | 9000kg |
Pay Load | 50T |
Axle Weight Load | 13 T |
RUNNING GEAR | |
Suspension | 3 axle mechanical suspension with 10 pcs leaf spring ( Optional : air suspension ) |
Axle | 13T FUWA Brand (Optional : BPW ) |
Rims & Tires | 12.00R20 12 Pcs |
Brakes | Dual lines pneumatic brake system, (Optional: ABS); 6 air chamber; parking brake |
UNDER FRAME | |
Main Beam | The height of the beam is 500mm, |
King Pin | Welded king pin, size 50# (2'') or 90# (3.5’’) |
Landing Gear | 28T Manual operating |
Spare Tire Carriers | 2 pieces |
CARGO BODY | |
Steel sheet | Floor thickness 6mm, side wall thickness 4mm |

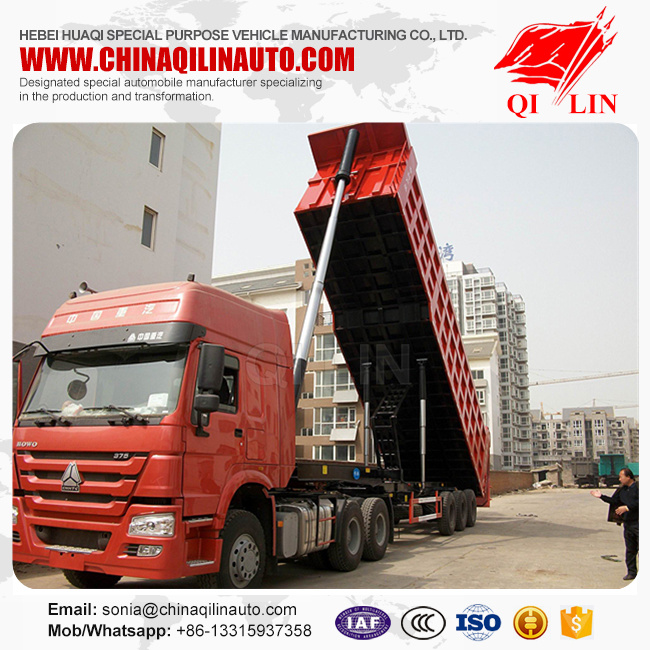

Hydraulic Jack | Full set of HYVA hydraulic system, front setting telescopic jack |
Tailgate | One-piece tailgate with upper articulation, safety lock system |
ELECTRICAL & PAINT | |
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Wiring | 24V, 6 lines |
Air / Elec. Connector | ISO standard air connector, 24V 7 pin plug socket |
Paint | Sand blasting before painting, color upon request |
Accessories | 2 sets standard tool box |
