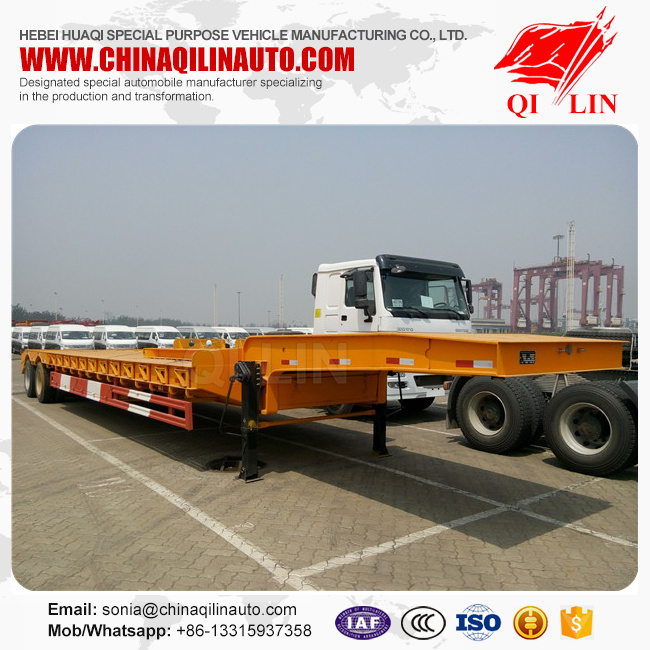

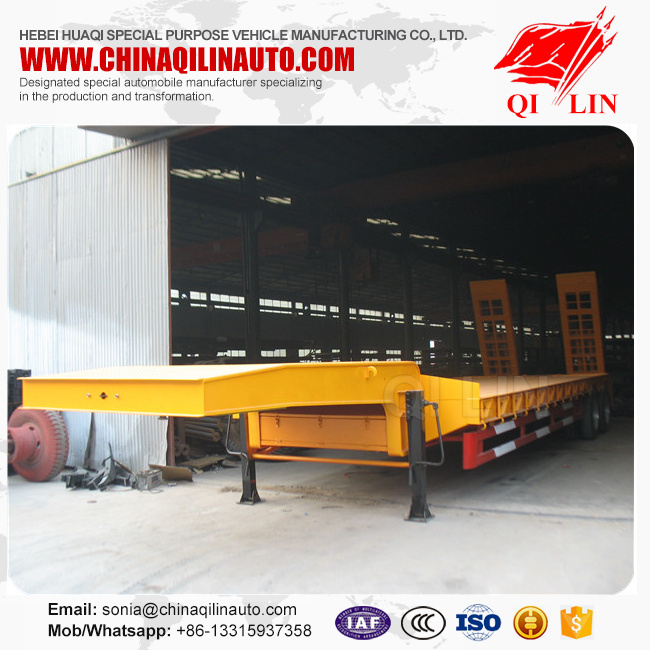

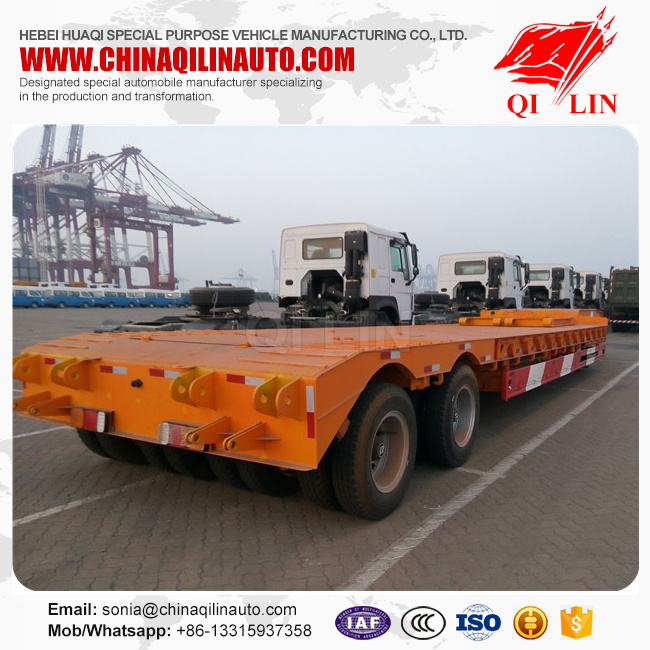

| Factory made cheap price 2 line 4 axle low bed trailer | |||||||||
| Trailer Model | QLG9402TYR | ||||||||
| Function | Load heavy duty machinery | ||||||||
| Overall dimension | 14500*3500*1650mm | ||||||||
| Main Beam | 500mm height ,upper/down plate is 12/14mm, middle plate is 10mm | ||||||||
| Max payload | 60Ton | ||||||||
| Curb weight | 10.5Ton | ||||||||
| Side Beam | 200mm I-beam steel . | ||||||||

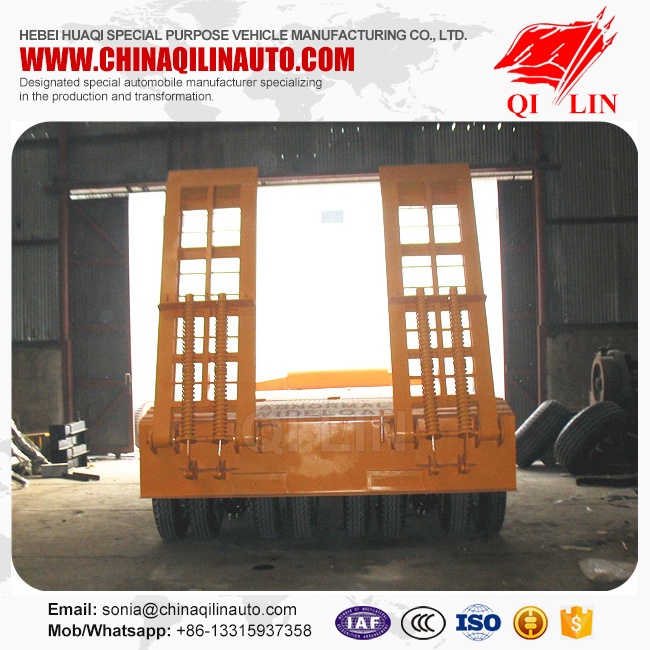

| Rear ladder | manual type. 2pcs | ||||||||
| Running constructon | |||||||||
| Axle | Yonglitai Fuwa 13T (brand is optional) | ||||||||
| Axle Number | 2 sets | ||||||||
| tyre | 8.25R20 | ||||||||
| Number of Tyre | 17 pieces ( 1 spare tire included) | ||||||||
| rim | 6.0-22.5/17 | ||||||||
| Twist lock | 12 pieces | ||||||||
| rear ladder | manual | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| Landing gear | 28T Made in China | ||||||||
| suspension | Mechanical suspension | ||||||||
| Tool box | 1 pcs standard | ||||||||
| Braking system | with ABS system made in China | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||
