Brand | Qi Lin |
Model | QLG9408GFW |

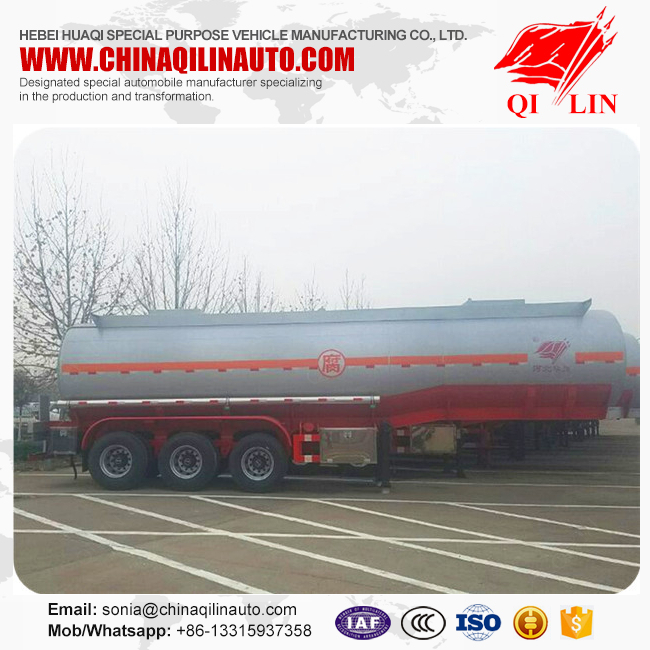

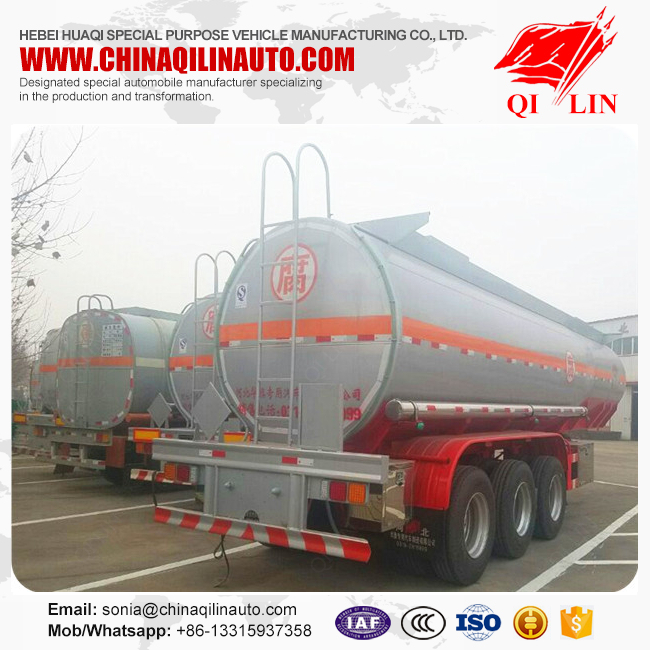

Usage | Load sodium hydroxide solution |
Total weight | 40000kg |
Tare weight | 8800kg |
Max payload | 31200kg |
Tank volume | 28.4cbm |
Overall dimension | 10800mm*2490mm*3850mm |
Tank dimension | 10350mm*2080mm*2080mm |
Side protective device | Q235 steel,screw bolt connection |
Rear protective device | Q235 steel,welding connection |
Bottom edge height | 520mm |
Axle load | 24000kg |

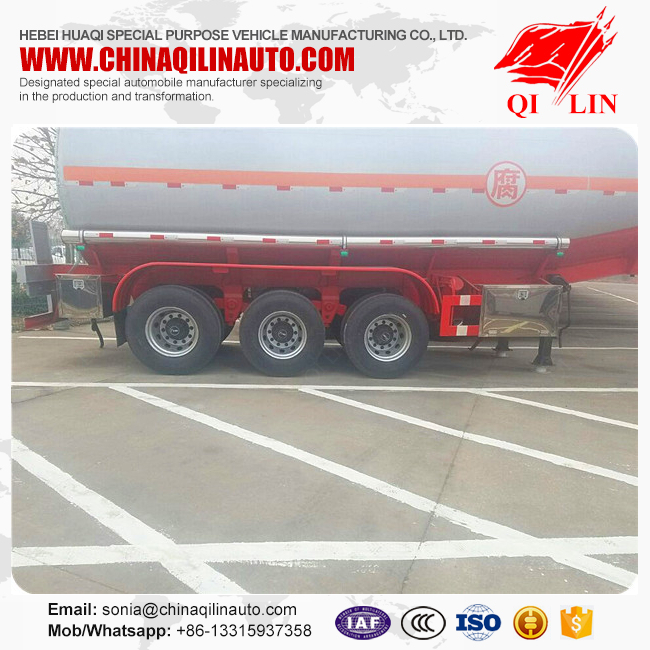

Axle number | 3pcs |
Tire | 12R22.5 12PR/12pcs |
Leaf spring number | -/10/10/10,-/9/9/9,-/13/13/13 |
Wheelbase | 5250mm+1300mm+1300mm |
Rear tread | 1840mm/1840mm/1840mm |
Rear suspension | 1450mm |
Departure angle | 22° |
Braking system | |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
