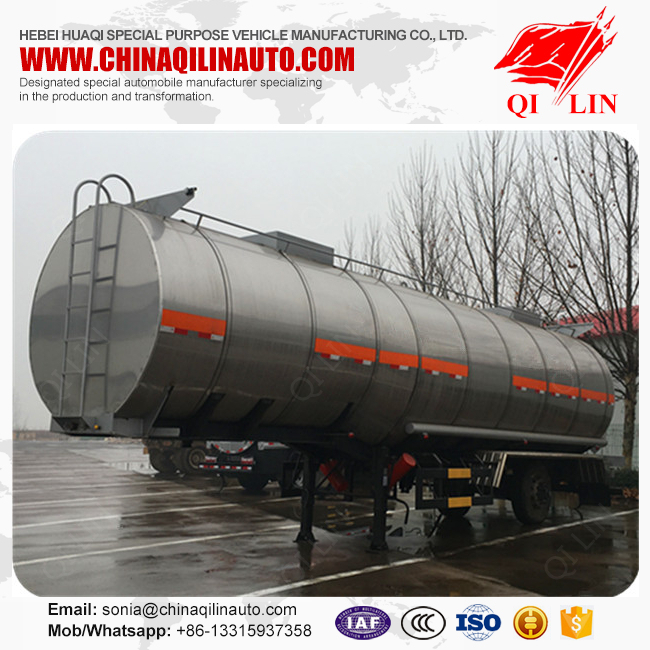

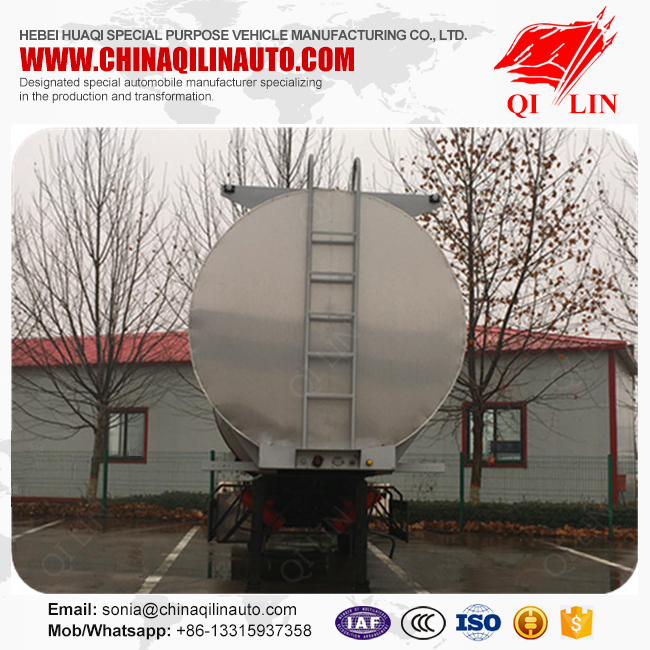

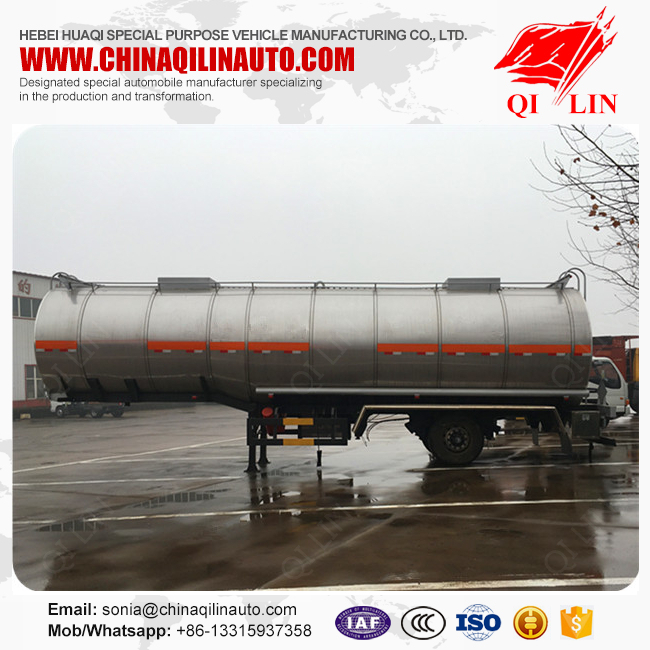

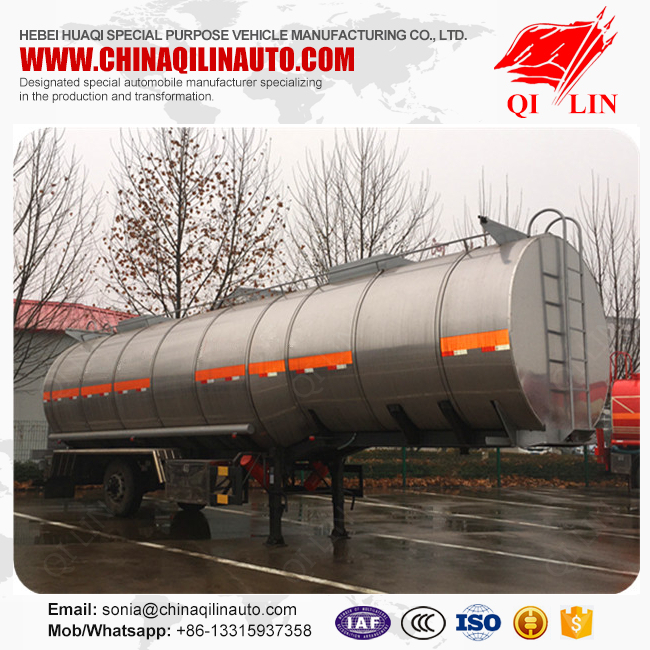

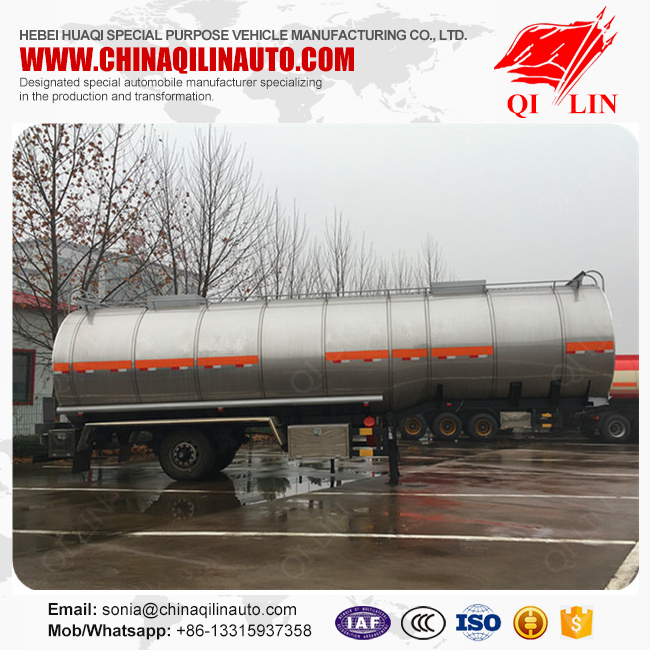

Model

QLG9402GRYA

Usage

Load epoxy propane

Total weight

40000kg

Tare weight

9000kg

Max payload

31000kg

Tank volume

38.58cbm

Overall dimension

12000mm*2500mm*3980mm

Tank dimension

11600mm*2490mm*2490mm

Tank insulating layer

100mm thickness

Side protective device

Q235 steel, screw bolt connection

Rear protective device

Q235 steel, welding connection

Bottom edge height

520mm

Axle load

24000kg

Axle number

3pcs

Tire

12R22.5 12PR/12pcs

Leaf spring number

-/10/10/10,-/9/9/9,-/13/13/13

Wheelbase

6250mm+1310mm+1310mm

Rear tread

1840mm/1840mm/1840mm

Rear suspension

1520mm

Departure angle

21°

Braking system

With ABS system(CM2XL-4S/2M)

Electrical system

24 voltage,7 wire harness.

Light

LED type

Painting

With shot blasting and 4 layers painting,color is optional.

Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.
