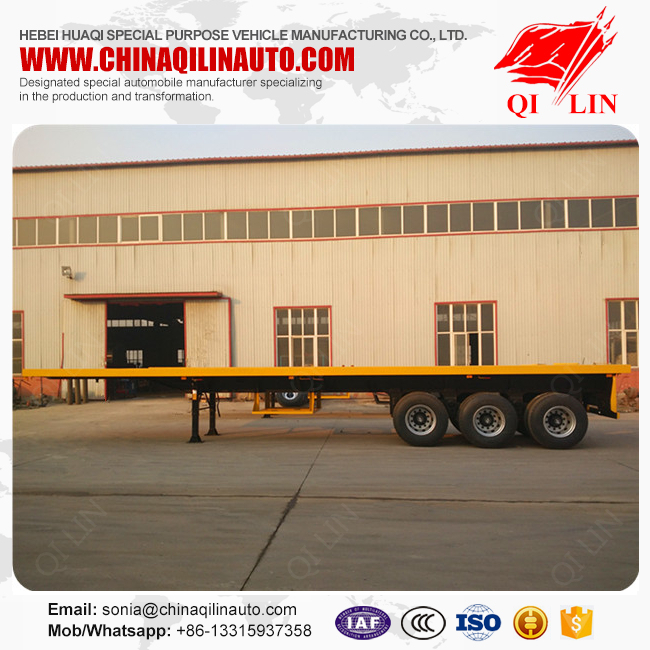

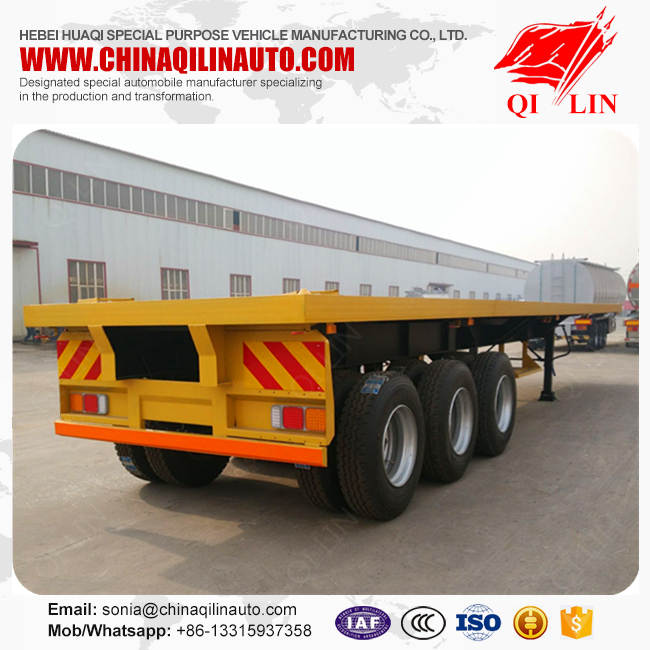

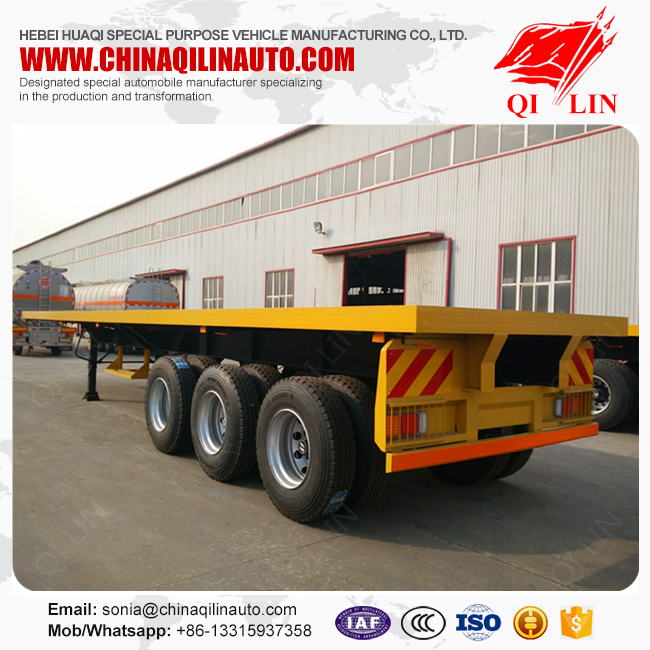

Brand | Qi Lin |
Model | QLG9400TJZ |

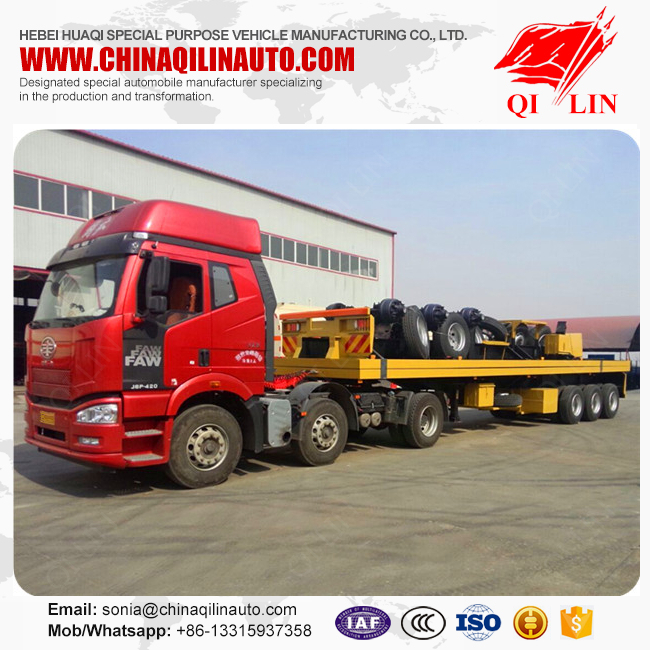

Function | Load 2*20ft / 1*40ft container |
Tare weight | 7000kg |
Max payload | |
Overall dimension | 12350mm*2500mm*1550mm |
Platform | 3mm steel checkered plate |
Main beam | The height of the beam is 500mm,upper plate is 14mm, down plate is 16mm,middle plate is 8 mm. |
Cross beam | 100mm channel steel |
Side beam | 160mm channel steel |
Kingpin | Interchangeable 90#/50# |
Axle | YLT 12T/3pcs |
Tire | Triangle 12R22.5/12pcs |
Rim | 8.5-22.5/12pcs |
Leaf spring | 90mm*13mm*10pcs/6sets |
Suspension | Mechanical suspension |

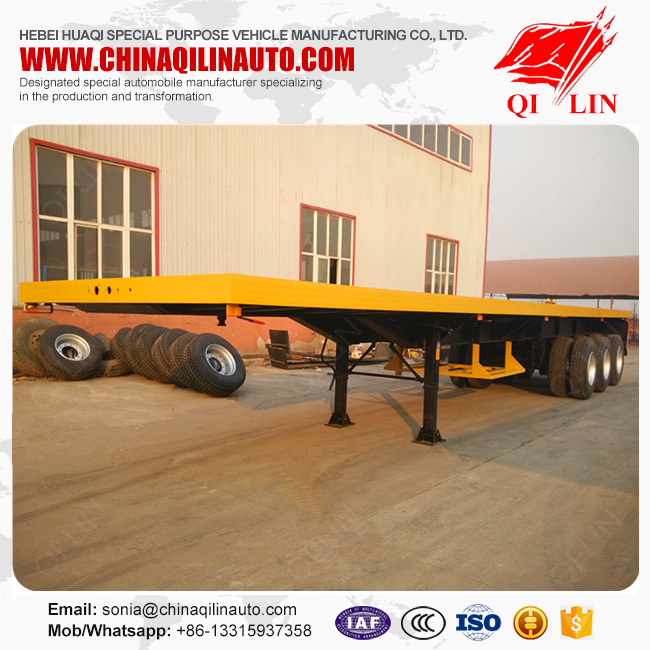

Landing gear | 28T made in China |
Twist lock | 12pcs |
Diesel tank | 1000L |
Tool box | 1pc |
Braking system | |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Packing | Nude,polish with wax before shipment. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
