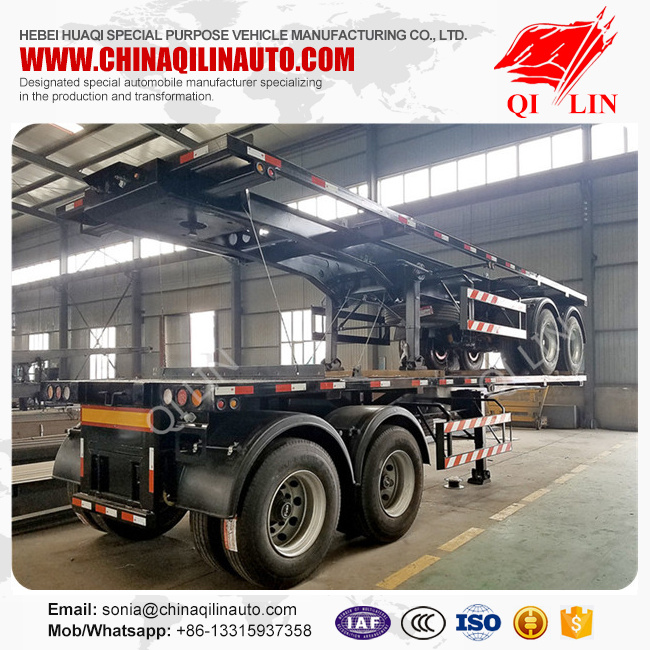

2 axle 28ft skeleton chassis semi trailer for Thailand Market
넳
넲
Overall Dimension(mm) | 8500*2428*1510mm |
Curb Weight | 4 Ton |
Main beam | Q345B steel ,height is 500mm ,upper/down flange plate is 10/10mm*140mm . Middle plate is 6mm . |
Suspension | FUWA air suspension with WEWELER brand air bag . 2 axles |
Landing Gear | SAF HLD30 |
Tyre | Double Coin 11R22.5 *9pcs |
Braking system
| WABCO |
Kingpin | JOST 2” /KZ1010 |
Tyre Tachometer
| TEMCO brand |
Spare tyre Carrier | 2 standard follow customer’s drawing |
Spring Brake chamber
| T30/30 ,NPT3/8 |
Electric system | 24Volt Electrical system.7pin electrical connector.Parking stop,reverse,number plate and Indicator lights.rear lights conform to European standard. Rear front and side reflectors. |
Painting | 2 layers of anti-rust painting , 2 layers of outer black color painting , |
Fire Extinguisher | 8Kg/ piece--2 pcs—on each side of the chassis |
Guard Rail | Conform to GB11567.1 ,GB11567.2 standard .
|
Packing | Nude, polish with water wax before shipment |
Remark | Other specifications are strictly conform to customer’s drawing |
