Brand | Qi Lin |

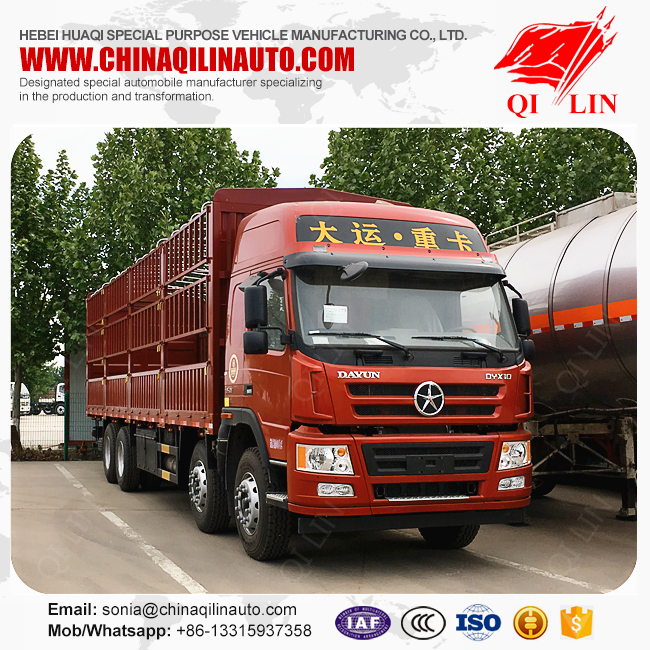

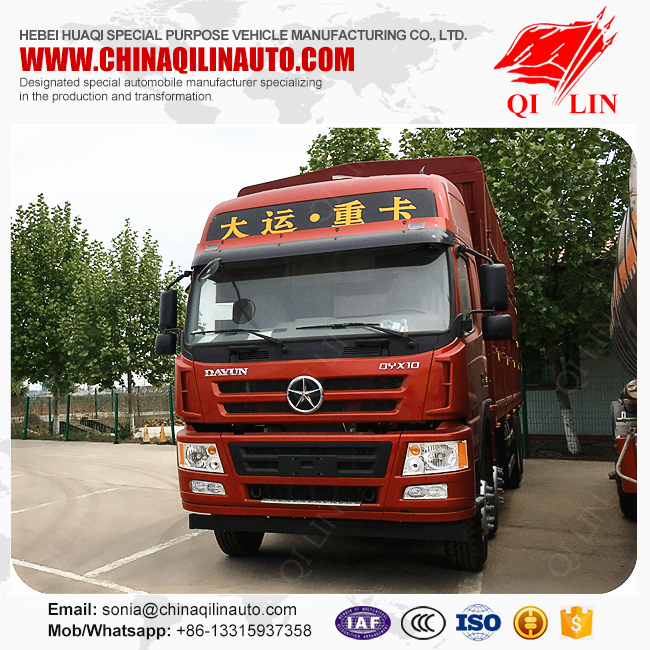

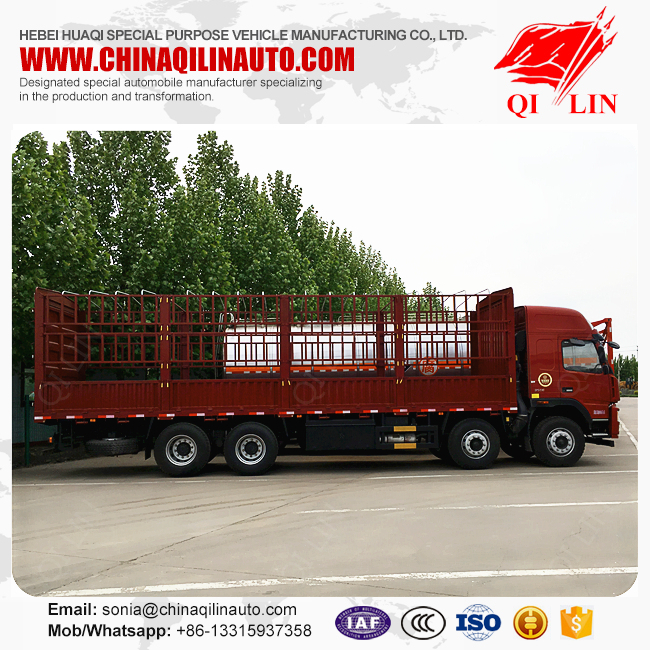

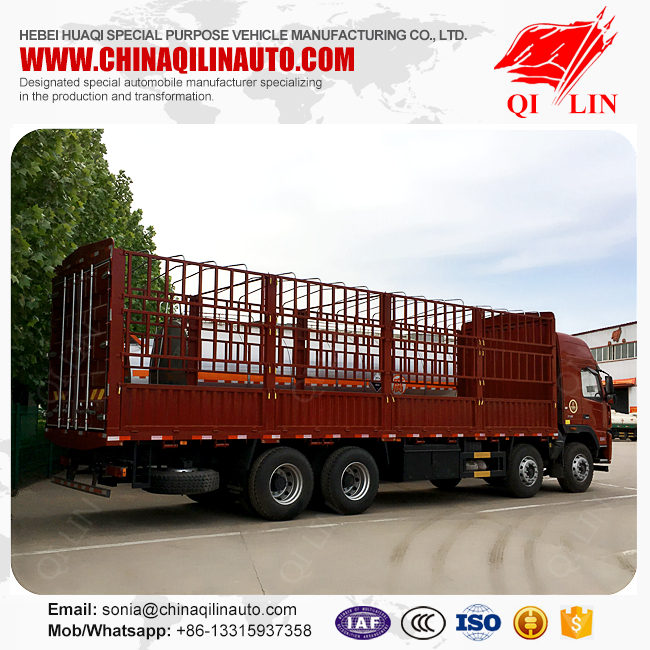

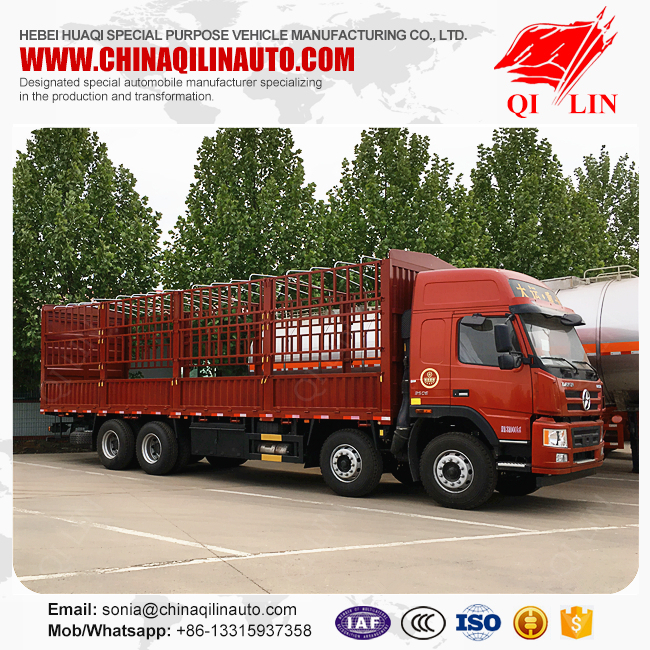

Model | QLG5253CCY |
Function | Load container or bulk cargo |
Total weight | 31000kg |
Tare weight | 13045kg |
Max payload | 17825kg |
Overall dimension | |
Van dimension | 9600mm*2400mm*800mm |
Down edge height | 430mm |
Axle | 6500kg/6500kg/18000kg payload/4pcs |
Tire | 10.00R20/12pcs |
Front/rear tread | 1965mm/1860mm |
Front/rear suspension | 1450mm/2100mm |
Wheelbase | 2050mm+4000mm+1350mm |
Approach/departure angle | 22°/13° |
Braking system | with ABS system(3631010-C2000) |
Max speed | 90km/h |
Passenger limit | 3 persons |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
