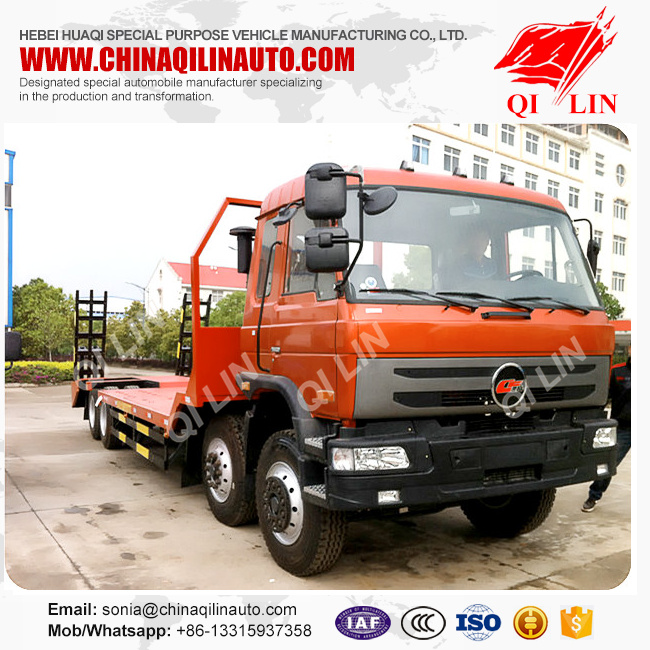

QILIN 8X4 24 tons payload low bed truck Date: | |
Vehicle specifications | |
Brand | QI LIN |
Name | Low bed truck |
Model | QLG5203TDP |
Overall dimension | 11600mmX2500mmX2980mm |
Curb weight | 10500kg |
Max payload | 24000kg |
Platform specifications | |
Platform dimension | 8800mmX(2500mm+500mm) |
Pattern plate thickness | 8mm |
Extended (left and right side) | Manual |
Channel steel frame | 12# |
Square steel tube | 120mmx120mm |
Square tube spacing | 350mm |
Rear climbing ladders | Mechanical |
Concave plate dimension | 3000m |
Min ground clearance | 900mm |
Standard configuration | Chassis,sub frame,pattern plate,rear climbing ladders. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Chassis specifications | |
Drive form | 8X4 |
Steering wheel | Left hand drive |
Steering device | Power assisted steering |
Transmissions | 8 forward gears,1 backward gear |
Chassis dimension | 11500mmX2470mmX2980mm |
Front/Rear wheel track | 1950mm/1950mm/1860mm/1860mm |
Front/Rear suspension | 1205mm/3100mm |
Wheel base | 1700mm+5600mm+1350mm |
Approach/Departure angle | 34°/ 17° |
Max speed | 90km/h |
Cab | One and a half deluxe cab,with sleeping berth,electric glass,mechanical flip,channel type instrument panel,allowable 3 passengers,color is optional |
Engine model | YC6A260-33 |
Emission | Euro 3 |
Engine type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine. |
Rated power | 260hp,rated power speed 2300rpm |
Displacement | 7255ml |
Max.torque | 960N·m |
Bore X stroke | 108mmX132mm |
Front/Rear axle | 5 tons/10 tons |
Tire | 9.00R20 radial tire/12+1pcs |
Clutch | Diameter 430mm |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Price and delivery | |
FOB price | |
Price validity | 10 days |
Payment terms | By T/T 30% as deposit,balance before shipment. |
Delivery time | Within 30 days after received deposit. |
Packaging | Nude,polish with wax before shipment. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. | |
