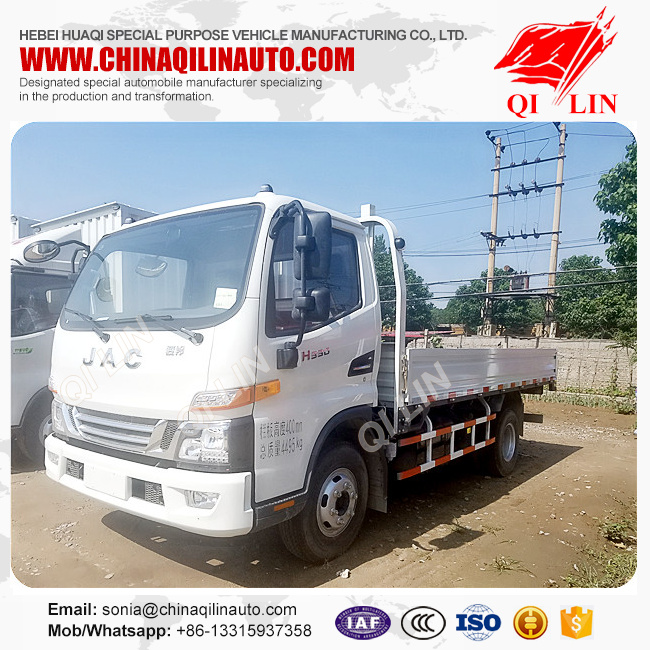

5-6Ton Light truck
| |
Brand | Qi Lin |
Name | 5-6Ton light truck |
Model | QLG5043GJY |
Overall dimension | 5995mm*1990mm*2200mm |
Overall G.W | 8500KGS |
Curb weight | 3365KGS |
Tank specifications: | |
Loading capacity | 5-6Ton |
Side door | 1mm , 400mm height |
Front portal | Huaqi reinforced 1 standard |
material | Q235b Carbon steel |
Chassis specifications: | |
Chassis Brand | Dongfeng EQ1060TJ20D3 |
Drive Type | Manual,Right hand drive |
Chassis Dimension | 5820*1940*2080mm |
Drive wheel | 4X2 |
Max payload | 5000KGS |
Transmission | Five speed levers, 5 speed forward with 1 reverse |
Tire | 7.00-16/6pcs |
Cab | 3 passengers , without air-conditioner |
Front/rear tread | 1506mm/1466mm |
Front/rear suspension | 1032mm/1488mm |
Wheelbase | 3300mm |
Approach/departure angle | 19°/15° |
Leaf spring number | 8/9+5,6/8+4 |
Engine | Model: CY4100-E3F |
Emission | Euro 3 |
Horse Power | 90HP |
Braking system | With ABS system |
Max speed | 80Km/H |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
