Product Description
| 3 axle low bed semi Trailer | |
| Main parameters | |
| Trailer Model | QLG9401TDP |
| Overall dimension | 14500*3000*3300mm |
| Platform height(mm) | 1200 |
| Curb weight (KGS) | 10900 |
| Effective platform | 10000mm length |
| Main Beam | The height of Main beam is 500mm,The upper/down plate is 20 /20mm, width is 140mm.double middle plate is 8 mm |
| Side beam | 250mm I-beam |
| Cross beam | 16# I-beam |
| Platform | 5mm checkered plate |
| Max Payload | 50-60Tons |
| Frame and running constructon | |
| Axle | FUWA 13T /2pieces |
| tyre | 10.00R20/12 pieces |
| Number of Tyre | 13 pieces ( 1 spare tire included) |
| rim | 7.5-20/12 pieces |
| leaf-spring | 90mmwidth*10pieces*13mm/6 sets |
| Kingpin | Interchangeable 50# & 90# |
| Landing gear | 28T standard made in China |
| suspension | Mechanical suspension |
| rear ladder | 1 set /manual type |
| Accessories | Huaqi Reinforced |
| Electrical and braking system | |
| Braking system | with ABS system |
| Electrical system | 24 volt electrical system. LED lights, 7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors |
| Color | Optional |
| Packing | Nude,Polish with Wax before Shipment |
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |

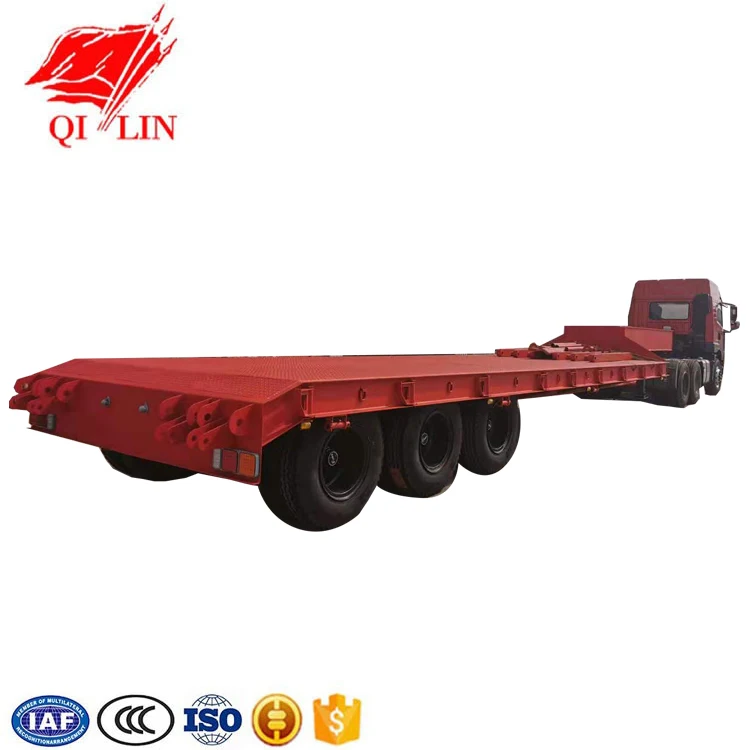

Product Image
Other Products
Company Information
Packaging & Shipping
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer.
2. Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4. Can you supply some quick-wear parts?
Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
5. Do you have any used products for sale?
We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
6. What's the payment terms?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
7. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
8. How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
