Product Description
| brand | QI LIN |

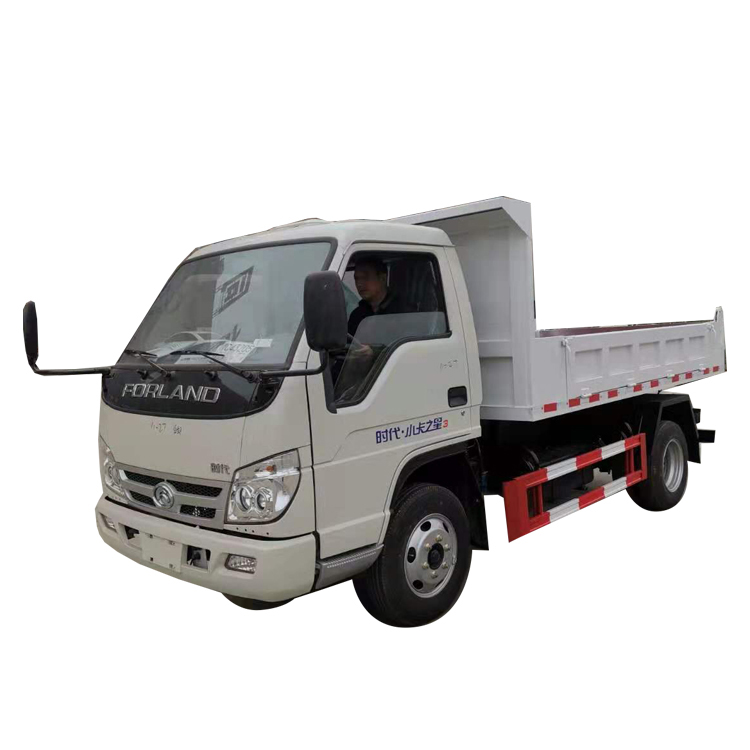

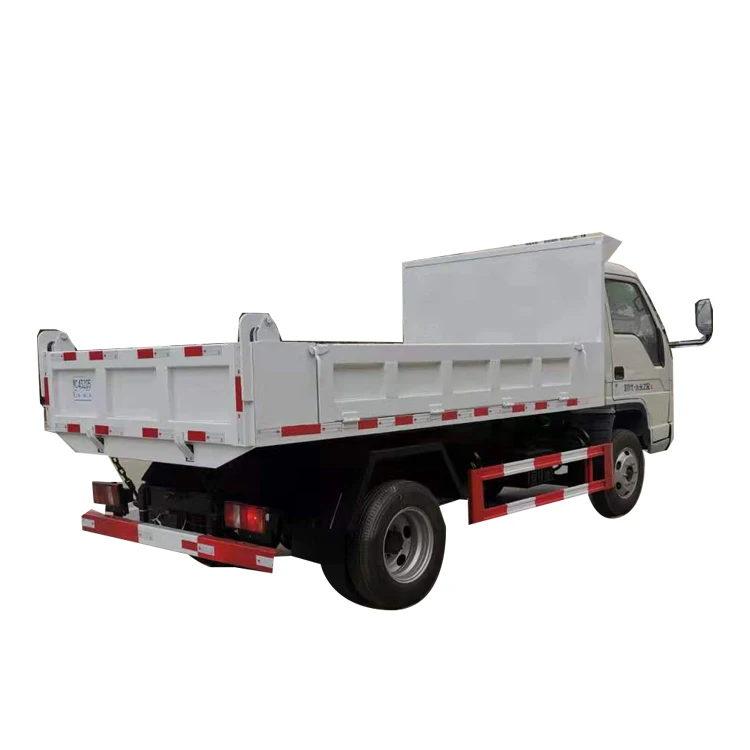

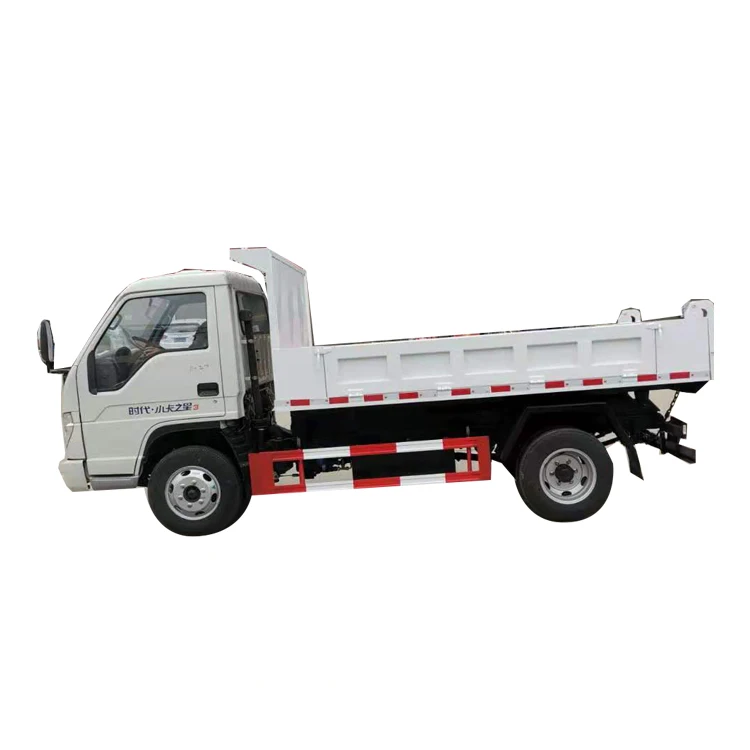

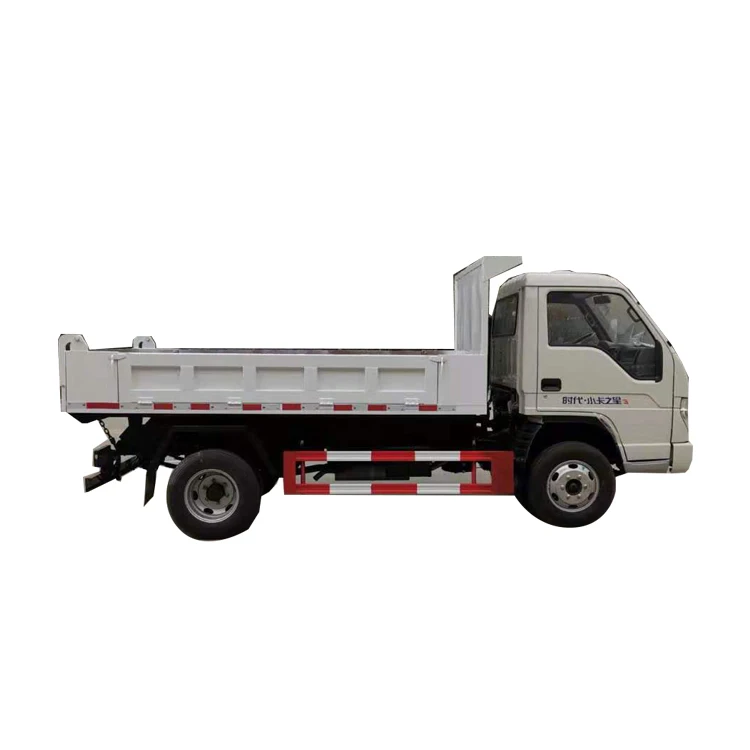

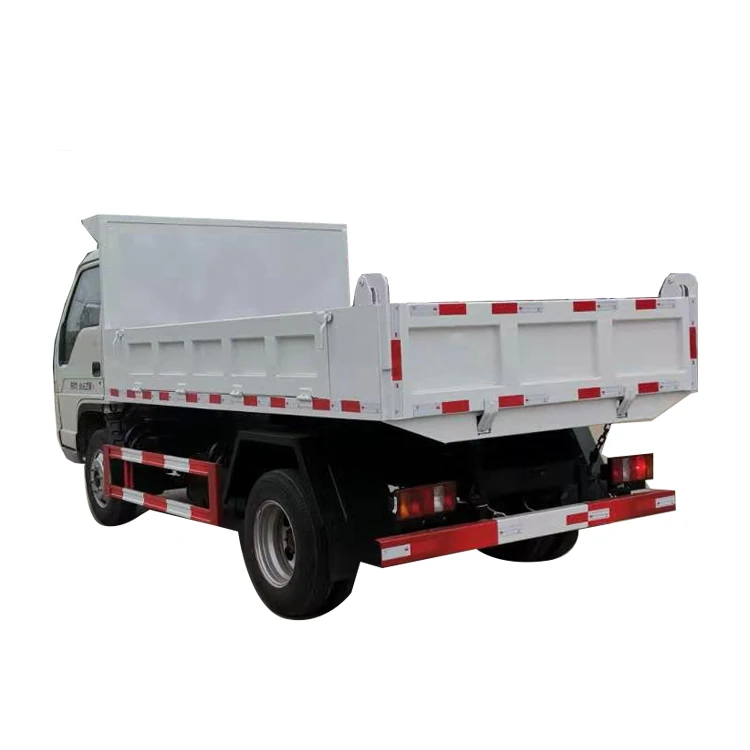

| name | 3-4 ton dump truck |
| model | QLG3046DZX1 |
| overall dimension | 5995*2050*2250 |
| overall G.W | 6750 |
| curb weight | 2750 |
| Van specification | |
| capacity | 3-4T |
| dimension | 4100*1910*400 |
| front portal | Huaqi reinforced 1 standard |
| material | Q235B Carbon steel |
| thickness | platform is 3 mm. Side door is 2mm |
| lifting system | double cylinders. with middle lifting type |
| Chassis specification | |
| Chassis brand | FOTON BJ3043V9JBA-FD1 |
| drive type | Manual, left hand drive |
| drive wheel | 4*2 |
| max payload | 3000-4000kgs |
| cab | QILIN cab, double cab, 2+3 passengers, with A/C |
| transmission | WLY brand, Five speed levers, 5 speed forward with 1 reverse |
| tire | 6.50R16 / 6+1 pcs |
| front/rear axle | 1485/2760 |
| front/rear tread | 1475/1435 |
| front/rear suspension | 1120/1515 |
| wheelbase | 3300 |
| approach/departure angle | 21/17 |
| leaf spring number | 7/7+5 |
| engine | model:N490aQB |
| emission | euro 3 |
| horse power | 57hp |
| braking system | without ABS system |
| max speed | 95 |
| fuel type | diesel |
| electrical system | 24 voltage, 7 wire harness |
| light | LED type |
| painting | with shot blasting and 4 layers painting, color is optional. |
| remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
Company Information
Packaging & Shipping
Our Services
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer.
2. Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4. Can you supply some quick-wear parts?
Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
5. Do you have any used products for sale?
We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
6. What's the payment terms?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
7. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
8. How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
