Product Description
1,Advanced technology,equipment and production line.
2,Quality guarantee,best cost performance.
3,We are manufacture,provide customized service,design as the customers’ every request.
Advantage:It can improve the comprehensive economic benefit of road transportation. Transport efficiency can be increased by 30-50%, cost reduced by 30-40% and fuel consumption reduced by 20-30%. More importantly, the use of semi-trailers can also promote the organization of logistics in China to a certain extent.

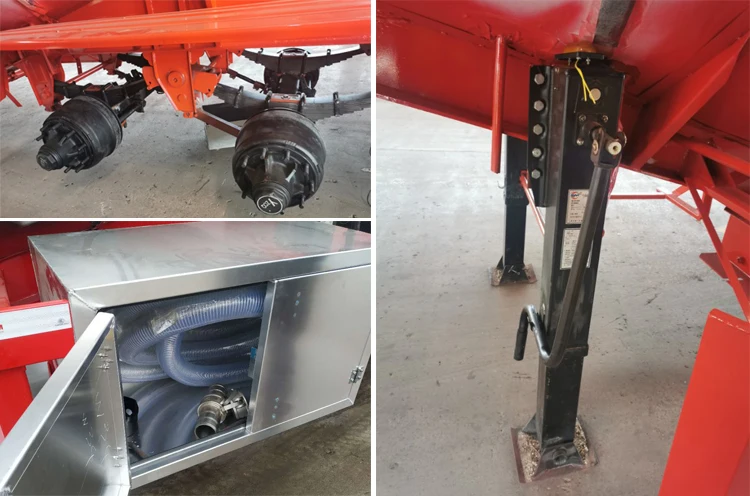

Tool box: 1 unit factory standard
Landing gear:Loading landing gear
Axle type:13-ton YUANZHENG axle
| Tanker brand | QILIN brand |

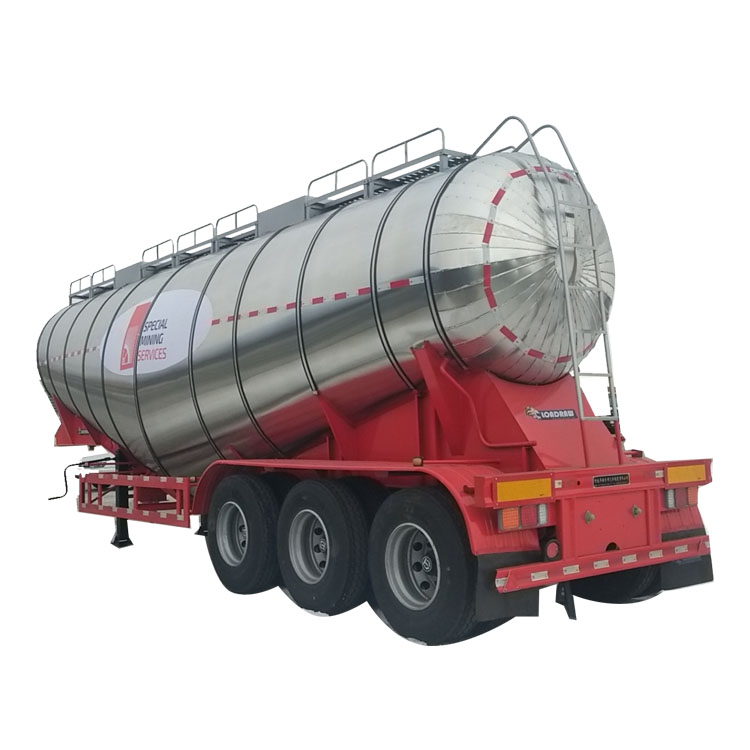

| Model name | 35CBM chemical emulsion tanker semi trailer |
| Trailer model | QLG9403GRYA |
| Loading material | Chemical emulsion |
| Overall dimension around | 10800mm*2500mm*3800mm |
| Tanker capacity | 35CBM |
| Tanker compartment | 1 unit |
| Tanker shape | Like cement semi trailer |
| “V”radian | 15 ° |
| Tanker heat preservation material | PU(Polyurethane) |
| PU(Polyurethane)thickness | 80 mm |
| Heat preservation covering material | Stainless steel ,0.55mm thickness |
| Tanker bottom heating trough material | Carbon steel |
| Heating Transfer groove number | 4 unit |
| Load tanker emulsion temperature | 95 ℃ |
| Main beam | Middle plate 6mm,down plate is 10mm,Carbon steel |
| Tanker body | Tank Body is 6mm,The front and end plate head is 6mm, baffle is 5 mm ,all material use 304 stainless steel. |
| Tanker baffle number | 5 piece |
| Tanker baffle gross hole diameter size | 400mm |
| Manhole cover | Diameter: 450-500mm (1 pieces) ,reinforced by factory |
| Manhole cover material | #304 stainless steel |
| Manhole cover number | 2 units |
| Axle type | 13 tons axle |
| Axle number | 3 pieces |
| Tyre | 12R22.5 |
| Tyre number | 12 units |
| Rim | 9.0/ carbon steel |
| Kingpin | 90# fabricated type |
| Landing gear | Loading landing gear |
| Suspension | Mechanical suspension |
| Leaf spring type | Width 90mm, 13 pieces, 10mm thickness /6 pieces |
| Discharge valve | 1 unit,install at the tanker bottom. |
| Discharge valve diameter | 3inch |
| Bottom water hole | 1 unit |
