• Fuel/Gasoline/Petrol/Water/Bitumen/Chemical/Liquid Loading and Transporation
• Finite Element analysis used in vehicle to promote product performance.
• high quality painting,High oxidation resistance, stronger adhesion.
• High Stength full thickness Steel, which ensure Beam and frame’s Toughness and strength.
• European System Optional,Oil and gas recovery.
• X-RAY room to test the overall welding effect.Ensure the safety of tanker in maximize.
Product Image
Product Description
Smart bitumen distributor smart asphalt distributor, bitumen distributor truck
ⅠOverview
Our Intellectualized Asphalt Distributor is used for spraying asphalt on the prime coat, the water-proof layer and tack coat in high-graded road construction. It also can be used for bituminous pavement with the construction techniques of spreading in layers. It can spray hot asphalt, emulsified asphalt, modified asphalt, etc. It is mainly composed of Truck Chassis, Asphalt Tank, Asphalt Pumping and Spraying System, Heating System, Hydraulic Circuit, Pneumatic Circuit, Auto control System and Operation Panel
ⅡMain performance
a) All operations can be performed in the cab.
b) Asphalt spraying rate kg/m2: 0.3-3
c) The width of spraying is adjustable. Each spraying nozzle can be controlled independently, and the maximum spraying width can reach 6 meters.
d) Spraying of asphalt is very even, and can realize to spray in three-overlapping.
e) Asphalt application rate is controlled by computer and independent of truck speed.
f) Heating and heat-preserving systems introduce full circulation of thermal oil, which is safe, reliable and full-automatic.
g) Thermal oil preserves heat of asphalt pump and spraying nozzles, which needn’t be washed by diesel oil after finishing spraying. It uses high-pressure air to drain the pipe and spraying nozzle or make use of thermal oil’s cycle to ensure pipelines and spraying nozzles not to be blocked.
h) Control System adopts modular design, which is very convenient to maintain and troubleshooting.
i) It is equipped with standby control system.
j) It can ensure machine to work normally when Main Control System failure.
k) It is equipped with flexible hand-spraying system.
l) Excellent heat-preservation and the average temp. Fall is less than 1 °C/h.
m) Loading and unloading asphalt is very convenient. Besides filling asphalt through manhole, asphalt can also be sucked into tank and drained by own pump.
n) See the table for the parameter
heated asphalt tank semi trailer,liquid asphalt tanker trailer used for big tons loading capacity.

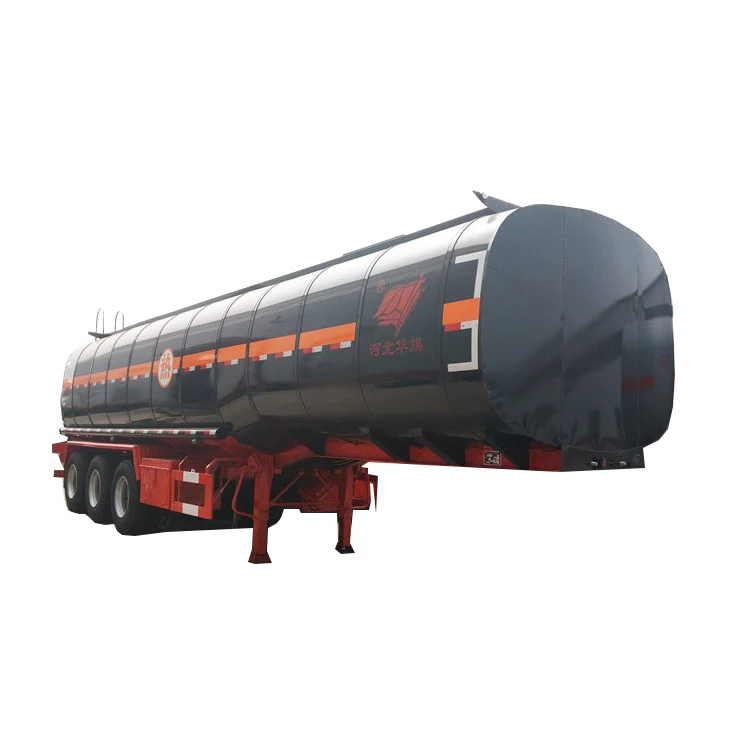

| 38cbm 3 axle Bitumen Tanker Trailer | |||||||||
| Trailer Model | QLG9403GRYA | ||||||||
| Function | Load ASPHALT | ||||||||
| Overall dimension | 11350*2500*3900mm | ||||||||
| Tank Body | 10850*2490*2000mm | ||||||||
| Max payload | 38cbm | ||||||||
| Curb weight | 10 Ton | ||||||||
| Tank | Carbon steel ,6mm Tanker body/shell end/ washboard | ||||||||
| Main Beam | down plate is 12mm,middle plate is 6 mm, | ||||||||
| Compartment | silo | ||||||||
| Bottom valve | carbon steel 1 pcs | ||||||||
| Running constructon | |||||||||
| Axle | Fuwa 13T | ||||||||
| Axle Number | 3 pieces | ||||||||
| tyre | 11.00R20 | ||||||||
| Number of Tyre | 13 pieces ( 1 spare tire included) | ||||||||
| rim | 8.0-22.5/13 | ||||||||
| Twist lock | 12 pieces | ||||||||
| leaf-spring | 90width*10pieces*13mm/6 sets | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| Landing gear | 28T Made in China | ||||||||
| suspension | Mechanical suspension | ||||||||
| Tool box | 1 pcs standard | ||||||||
| Braking system | with ABS system made in China | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||
Other products
Product Multi-model
Our Factory Provide all types Fuel/Water/Liquid Tanker Trailer for customer.
If below model satisfied to you,please contact us.
STAINLESS STEEL TANKER TRAILER--36CBM(customizable)
aluminium alloy TANKER TRAILER--42CBM(customizable)
Carbon Steel TANKER TRAILER--42CBM(customizable)
Semitrailer diagram
Feature List
Advanced material parts create excellent products,
Ensure trailer high performance quality.
Company Information
Packaging & Shipping
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer.
2. Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4. Can you supply some quick-wear parts?
Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
5. Do you have any used products for sale?
We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
6. What's the payment terms?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
7. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
