Product Description
Features of Product
* Made of high quality carbon steel Tanker Trailer with its certificate for its Worldwide customer. This trailer is suitable for to carrying chemical liquids and any other similar materials. We offer 2-6 compatments with a high volume.
* High Loading Capacity
* Pnemautic Valve System
* ABS System
* Air suspension optionl
Brand | Qi Lin |
Model | QLG9403GHYK |
Usage | Load Chemical liquid and dangerous Goods |
Total weight | 40000kg |
Tare weight | 5700kg |
Max payload | 34300kg |
Tank volume | 40 cbm |
Overall dimension | 12000×2500×3900mm |
Tank dimension | 11400×2490×2150mm |
Tank shape | Gooseneck type |
Side protective device | Q235 steel,screw bolt connection |
Rear protective device | Q235 steel,welding connection |
Bottom edge height | 520mm |
Axle | 24000kg payload/3pcs |
Tire | 11.00R20 12PR,12R22.5 12PR |
Leaf spring number | -/10/10/10,-/9/9/9,-/13/13/13 |
Wheelbase | 5530mm+1310mm+1310mm |
Rear tread | 1840mm/1840mm/1840mm |
Rear suspension | 1650mm |
Departure angle | 22° |
Braking system | With ABS system(CM2XL-4S/2M) |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. |

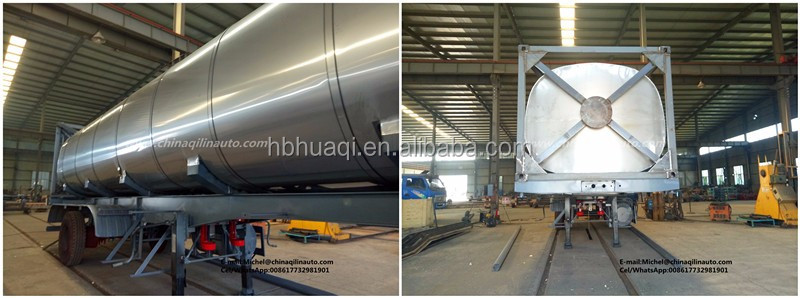

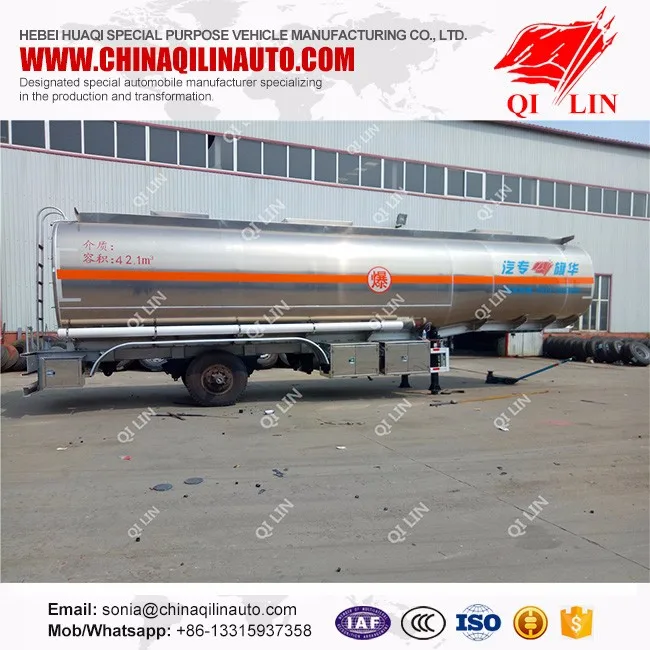

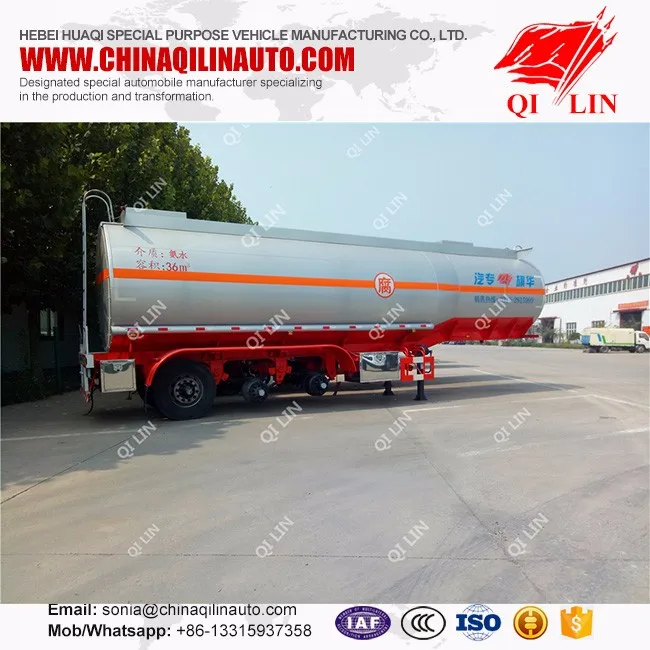

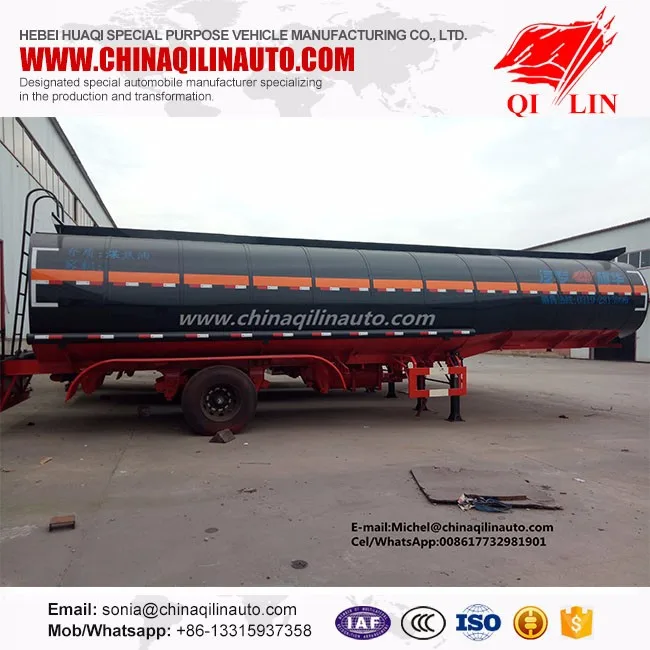

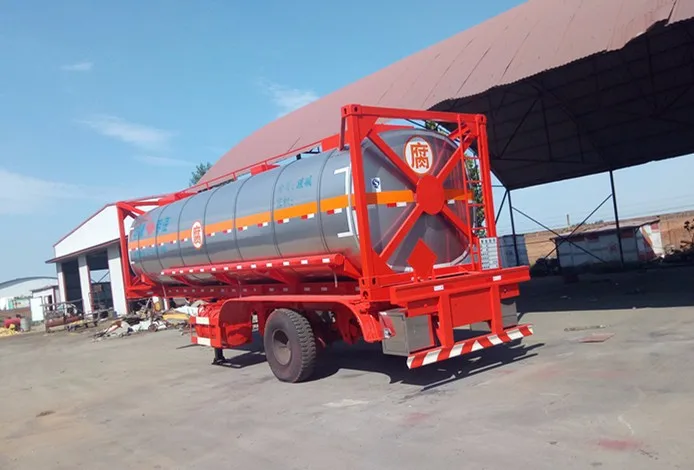

Detailed Images
Packing & Delivery

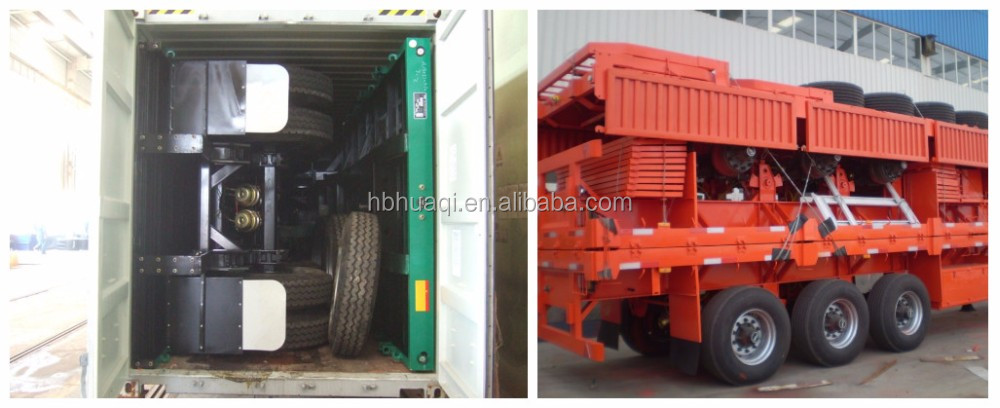

Packaging & Shipping
1.Nude,polish with water wax before shipment.
2. 40HQ ,Ro-Ro ship and bulk ship transport.

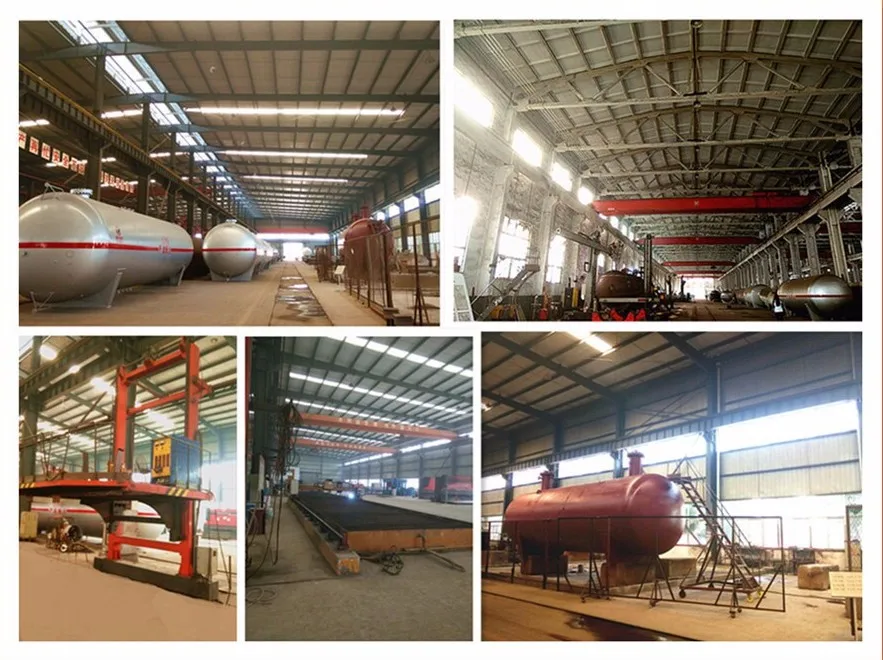

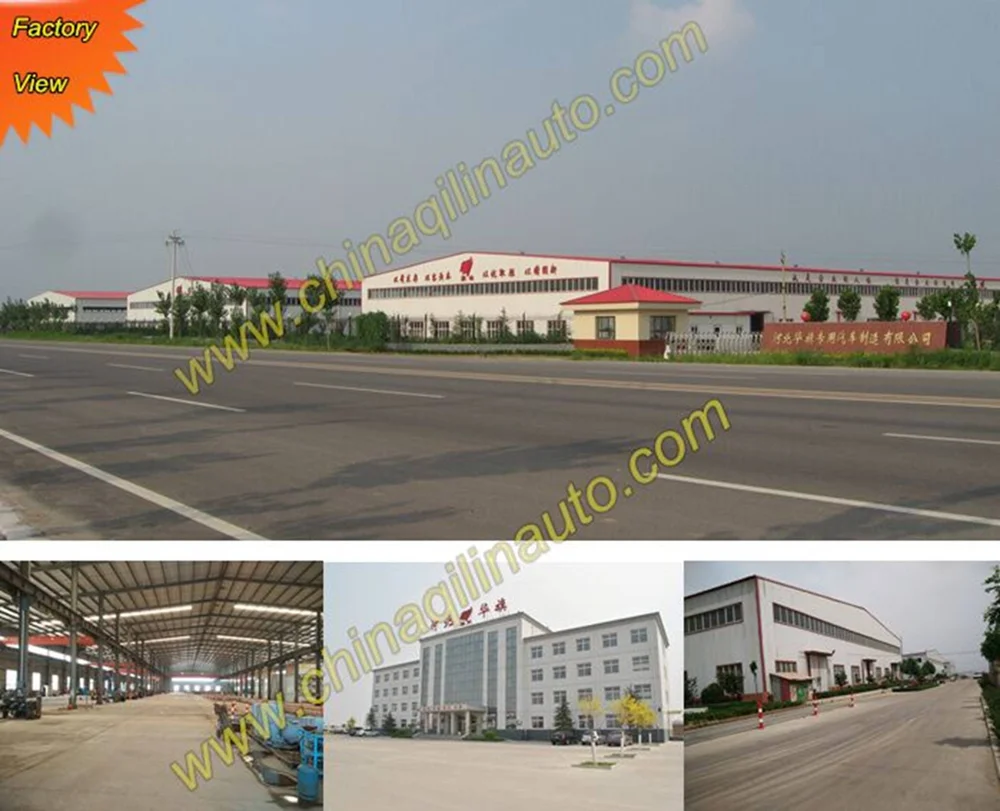

Our Company
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years trailer making experiences.
2.We have more than 300 employees,including 24 technical engineers,18 senior engineers .
3.We are one of the largest manufacturers in China,we have passed ISO9001:2008,CCC National Compulsory Certificate.
4. "Qi Lin" Brand is a famous brand in Hebei province ,China.
Welcome you to visit our factory !
1.We can pick up you in the airport port;
2.Book the hotel for you;
3.Show you around the workshop and production line;
4. We can supply the truck parts;
5. We can supply the stock trucks if you need the trucks urgently.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
1.Our engineer will go to your side when the semi trailer goes something wrong.
2.Any parts of the semi trailer will be send to you as soon as possible.
3.Technology consulting are appreciated all the time.
FAQ
1. Can I have a trailer sample to test the quality?
Yes, you can buy any sample to test the quality, our starting unit is 1 unit.
2. How much can the delivery time be reduced?
It depends on the order. The delivery time is usually within 20 business days after receive your prepayment. If you have a big order, the price can benefit.
3. Can you provide some trailer parts?
Yes, we can provide trailer accessories such as traction, traction pin, balance beam and semi-trailer spring, suspension accessories, turntable, all kinds of trailer brakes, brake discs, bearings and so on.
4. What is the payment method?
TT 30% as deposit, the rest settled before shipment.
5. Do you have any used trailers for sale?
We have a lot of trailers in store from 2012 ton 2016, the price is economical.
6. How can ensure the delivery after customer's prepayment?
Don't worry. We've joined Alibaba's trade guarantee. If we do not provide trailers, the deposit will be returned.
7. How can ensure the quality?
Don't worry. We have joined Alibaba's trade guarantee. If the product presents quality defects, customer will get compensation.
