• Fuel/Gasoline/Petrol/Water/Bitumen/Chemical/Liquid Loading and Transporation
• Finite Element analysis used in vehicle to promote product performance.
• high quality painting,High oxidation resistance, stronger adhesion.
• High Stength full thickness Steel, which ensure Beam and frame’s Toughness and strength.
• European System Optional,Oil and gas recovery.
• X-RAY room to test the overall welding effect.Ensure the safety of tanker in maximize.

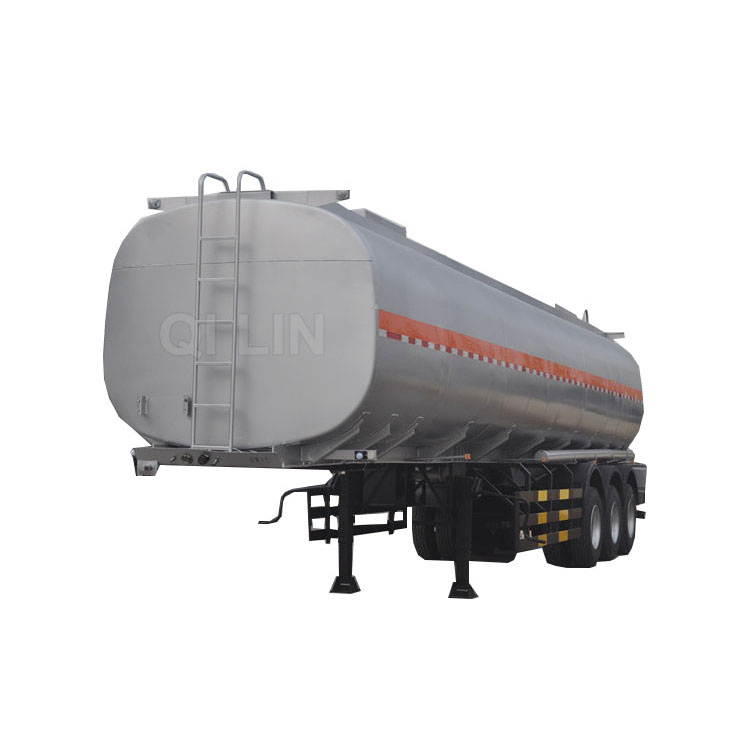

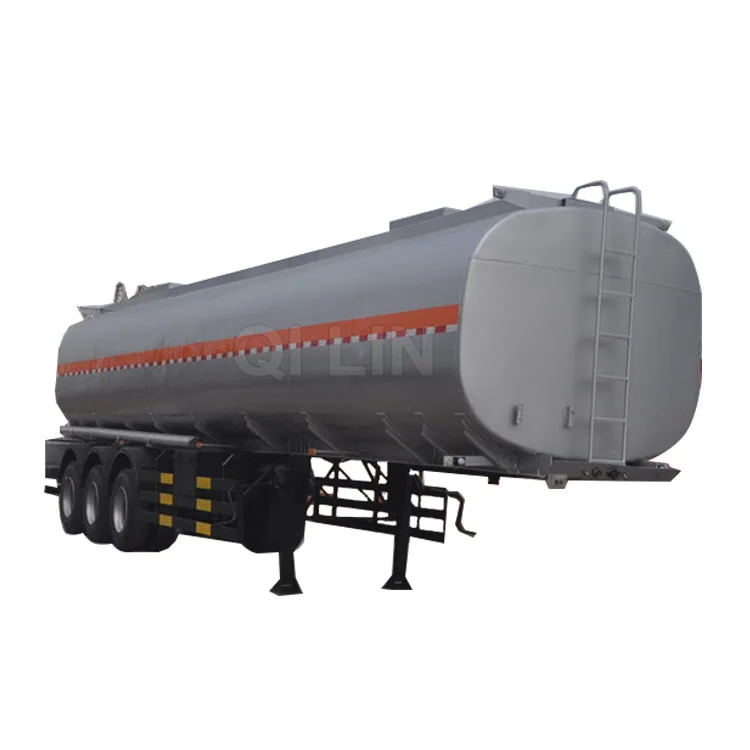

Product Image
Product Description
Chinese manufacturers supply 12700*2500*3980mm tri-axle fuel tank truck trailer
| Trailer Model | QLG9400GHY | ||||||||
| Function | Load Fuel | ||||||||
| Overall dimension | 127000*2500*3980mm | ||||||||
| Tank Body | 12000*2460*1960mm | ||||||||
| Max payload | 48cbm(33ton) | ||||||||
| Curb weight | 6.9Ton | ||||||||
| Tank | aluminum alloy ,6mm Tanker body/shell end/ washboard | ||||||||
| Main Beam | down plate is 12mm,middle plate is 6 mm, | ||||||||
| Compartment | silo | ||||||||
| Bottom valve | aluminuim alloy 1 pcs | ||||||||
| Running constructon | |||||||||
| Axle | BPW 13T | ||||||||
| Axle Number | 3 pieces | ||||||||
| tyre | 11.00R20 | ||||||||
| Number of Tyre | 13 pieces ( 1 spare tire included) | ||||||||
| rim | 8.0-22.5/13 | ||||||||
| Twist lock | 12 pieces | ||||||||
| leaf-spring | 90width*10pieces*13mm/6 sets | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| Landing gear | 28T Made in China | ||||||||
| suspension | air suspension/mechanical suspension | ||||||||
| Tool box | 1 pcs standard | ||||||||
| Braking system | with ABS system made in China | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||
Other products
Product Multi-model
Our Factory Provide all types Fuel/Water/Liquid Tanker Trailer for customer.
If below model satisfied to you,please contact us.
STAINLESS STEEL TANKER TRAILER--36CBM(customizable)
aluminium alloy TANKER TRAILER--42CBM(customizable)
Carbon Steel TANKER TRAILER--42CBM(customizable)
Semitrailer diagram
Feature List
Advanced material parts create excellent products,
Ensure trailer high performance quality.
Company Information
Packaging & Shipping
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer.
2. Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4. Can you supply some quick-wear parts?
Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
5. Do you have any used products for sale?
We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
6. What's the payment terms?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
7. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
8. How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
