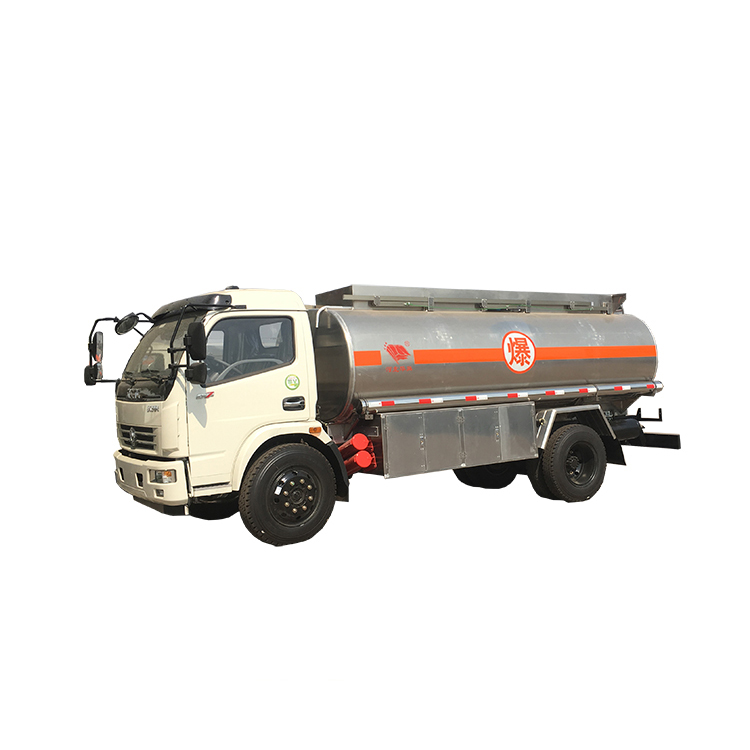

Model

QLG5111GJY

Usage

For fuel transportation and refilling

Total weight

11495kg

Tare weight

4800kg

Max payload

6500kg

Tank Material

Aluminium alloy 5083 , 4mm thickness

Tank volume

8.2cbm

Overall dimension

7000mmX2150mmX2650mm

Tank dimension

4800mmX1920mmX1280mm

Protective device

Q235-A steel,screw bolt connection

Bottom edge height

470mm

Axle

4600kg/6895kg payload/2pcs

Tire

8.25R20 14PR/6pcs

Leaf spring number

8/10+7

Front/rear tread

1903mm/1640mm

Front/rear suspension

1130mm/2070mm

Wheelbase

3800mm

Approach/departure angle

20°/17°

Braking system

With ABS system (ABS/ASR-24V-4S/4M)

Emission

Euro 3 , 140 HP , YC4E140 -33

Fuel consumption

23.6L/100Km

Fuel type

Diesel

Max speed

80km/h

Cab passenger number

3 persons

Electrical system

24 voltage,7 wire harness.

Light

LED type

Painting

With shot blasting and 4 layers painting,color is optional.

Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.
