Product Description

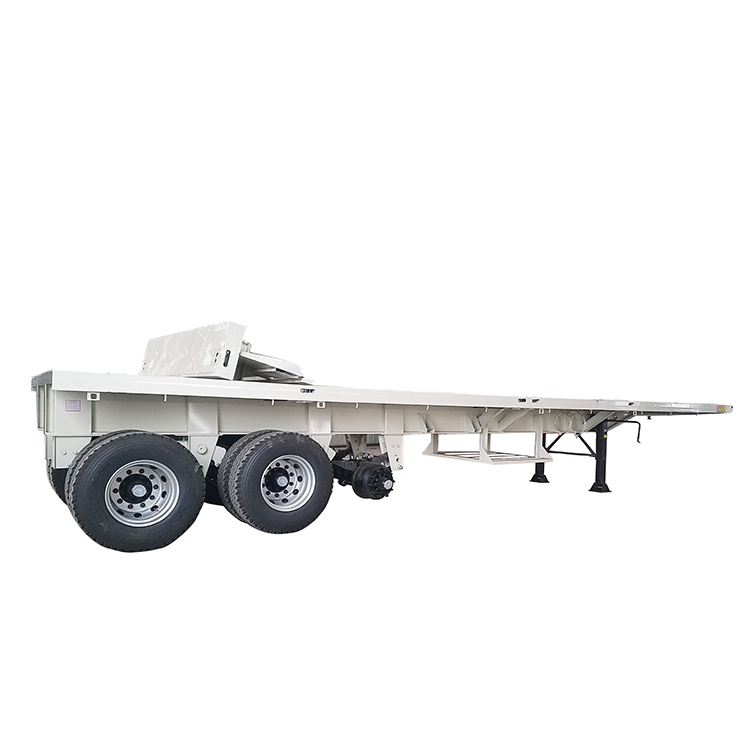

Flatbed semi trailer
The flatbed trailer can be used to transport containers ,bulk cargo and other goods , HUAQI can make this trailer according to your requirements .HUAQI produce the flatbed trailer with different configurations and accessories used in domestic and oversea markets. Our main beam material use Q345b steel, which has high-strength and strong stiffness features. we also focus on other type flatbed trailers , such as extendable flatbed trailers , flatbed trailers for transporting logs , and side wall flatbed trailers ,etc .
Function | Load 2*20ft and 1 *40ft container | ||
Overall dimension | 12350*2480*1600mm | ||
Max payload | 50Ton | ||
Curb weight | 7.5Ton | ||
Main Beam | Q345b 500mm height, upper/down plate is14/16mm, middle plate is 8mm | ||
Side beam | 160mm channel steel (140mm channel steel) | ||
Cross beam | 100*50*6mm I-beam steel | ||
Platform | 3 mm checkered plate | ||
Axle | BPW/FUWA 13T /3 Pieces | ||
Tyre | Triangle 315/80R22.5 -T668 /13pcs | ||
Rim | Zhengxin brand 8.5-20/13 pcs | ||
Twist lock | 12 pieces -screw type | ||
Leaf-spring | 100width*12pieces*11mm/6 sets | ||
Kingpin | interchangeable 90# &50# | ||
Landing gear | JOST C200 (Optional) | ||
suspension | German Mechanical suspension | ||
Tool box | 1 pcs standard | ||
Spare tyre carrier | 2 piece standard | ||
Water tank | 30L | ||
Fuel tank | 800L | ||
Braking system | with WABCO ABS system | ||
Electrical system | 24 voltage, 7 ways(7 wire harness) | ||
Light | LED type | ||
Packing | Nude,Polish with Wax before Shipment | ||
Painting | Color is optional |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High efficiency to load and unload container and bulk goods easily.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly matched with Truck head .
Detailed Images
Braking parts
Name: Air chamber/ABS
Brand: WABCO
Original: Germany
worldwild famous brand, strong driving force, low fuel consumption, high economic benefits .good quality.
Runing parts
Name: 13T Axle
Brand: BPW
Original: China(optional)
Domestic famous brand, strong driving force, low fuel consumption, high economic benefits. competitive price
Main features
Name: Cutted rear parts
Brand: HUAQI
Original: African style
our rear cutted parts can be connected by bolts in order to be loaded in 40HQ container to save sea freight cost .
Main Features
Name: German Suspension
Brand: HUAQI
Original: African market
German suspension is very widely used in African Market , which is easy to find the spare parts in custmer local market ,
