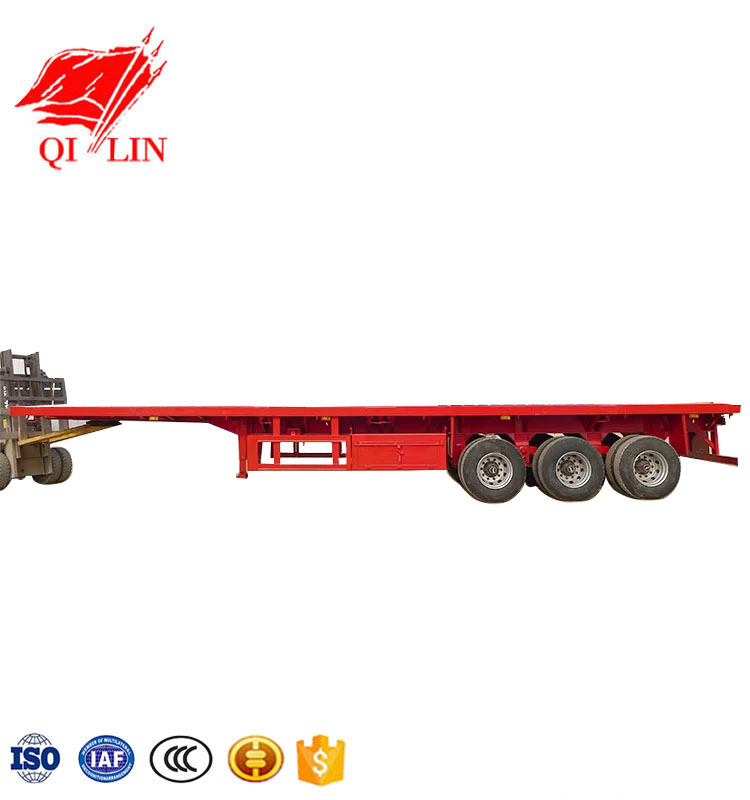

3 axles 40 feet container fifth wheel flatbed semi trailer
Trailer model | QL9400TJZ |
Function | Load 2*20ft or 1*40ft container |
Overall dimension | 12500mm*2500mm*1600mm |
Max payload | 50 tons |
Curb weight | 7 tons |
Platform | 3mm steel checkered plate |
Main beam | The height of the beam is 500mm,upper plate is 20mm, down plate is 20mm,middle plate is 10 mm. |
Cross beam | 100mm channel steel |
Side beam | 160mm channel steel |
Axle | Fuwa 13T/3 pcs |
Tire | Triangle 315, 65R22.5/12 pcs |
Rim | 8.5-22.5 /12 pcs |
Twist lock | 12 pcs |
Kingpin | Interchangeable 50# /90# |
Leaf spring | 100mm*11mm*12cs/6sets |
Landing gear | 28T made in China |
Suspension | Mechanical or Air suspension |
Diesel tank | 1000L |
Tool box | 1 piece |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage, 7 ways(7 wire harness) |
Light | LED type |
Packing | Nude,polish with wax before Shipment. |
Painting | With shooting blasting,and 4 layers painting. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
Packaging & Shipping
1 Nude , Polish with water wax before shipment .
2 40HQ ,Ro-Ro ship and Bulk Ship Transport .
