Product Description

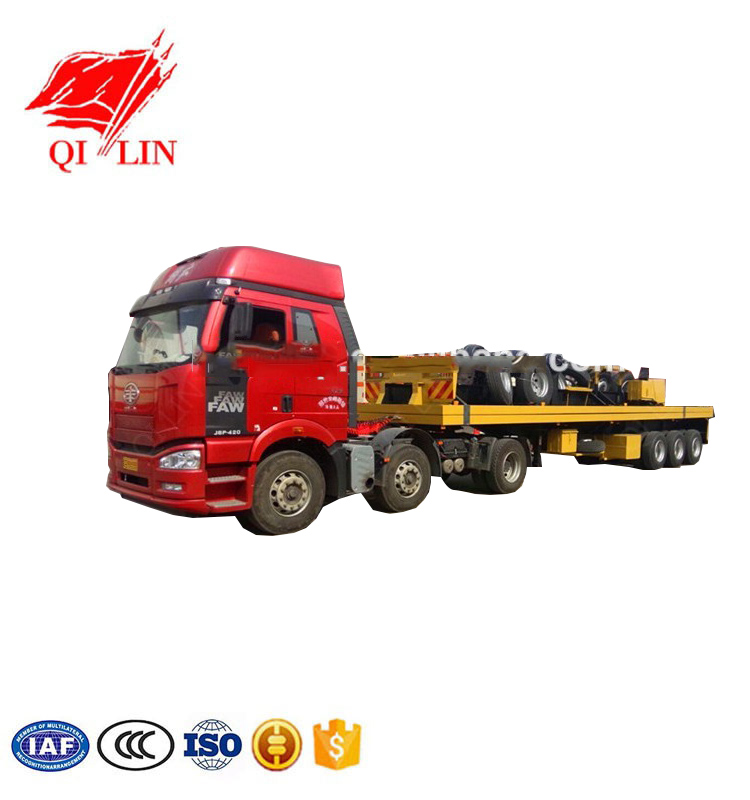

China manufacture 40tf flatbed truck chassis bodies for sale
Trailer model | QL9400TJZ |
Function | Load 2*20ft or 1*40ft container |
Overall dimension | 12350mm*2500mm*1550mm |
Max payload | 35000kg |
Curb weight | 7000kg |
Platform | 3mm steel checkered plate |
Main beam
| The height of the beam is 500mm,upper plate is 14mm, down plate is 16mm,middle plate is 8 mm. |
Cross beam | 100mm channel steel |
Side beam | 160mm channel steel |
Axle | YLT 12T/3 pcs |
Tire | Triangle 12R22.5/12 pcs |
Rim | 8.5-22.5 /12 pcs |
Twist lock | 12 pcs |
Kingpin | Interchangeable 90#/50# |
Leaf spring | 90mm*13mm*10pcs/6sets |
Landing gear | 28T made in China |
Suspension | Mechanical suspension |
Diesel tank | 1000L |
Tool box | 1 pc |
Braking system | With WABCO ABS system |
Electrical system | 24 voltage,7 ways(7 wire harness) |
Light | LED type |
Packing | Nude,polish with wax before Shipment. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark
| The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
