Product Description
| cement tank Model | QLG9401GFL | ||||||||
| Overall dimension(mm) | 14500*2500*3990mm | ||||||||
| Tare weight | about 12000kg | ||||||||
| Volume | 70m3 | ||||||||
| Thickness of Tank | tank body 5mm,the front and rear parts are 5mm. | ||||||||
| Max Payload | 84Tons | ||||||||
| frame and running constructon | |||||||||
| Engine | 4102 weichai diesel engine | ||||||||
| Axle | FUWA16T /3 | ||||||||
| tyre | Zhaoyang zhengba 12R22.5/12 | ||||||||
| rim | 9.0-22.5/12 | ||||||||
| leaf-spring | 90width*10pieces*13mm/6 sets | ||||||||
| Main beam | the height of the beam is 500mm. | ||||||||
| side beam | according to our design | ||||||||
| Kingpin | JOST Brand 90# or 50# | ||||||||
| Landing gear | 28T standard, two side operation | ||||||||
| suspension | Mechanical suspension | ||||||||
| Silo | single silo | ||||||||
| Air compressure | 12 M3 | ||||||||
| Manhole number | 3, diameter is 500mm | ||||||||
| Tool Box | 1 standard | ||||||||
| Electrical and braking system | |||||||||
| Electrical system | 24 volt electrical system. LED lights, 7 pin electrical connector. Parking .stop,reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors | ||||||||
| Paint (shoot blasting ) | Chassis is completely short blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),third and forth layers international alkyd finish top coat.total 100 microns. Seawater proofed painting, whole trailer waxed, | ||||||||
| Packing | Nude,Polish with Wax before Shipping | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||

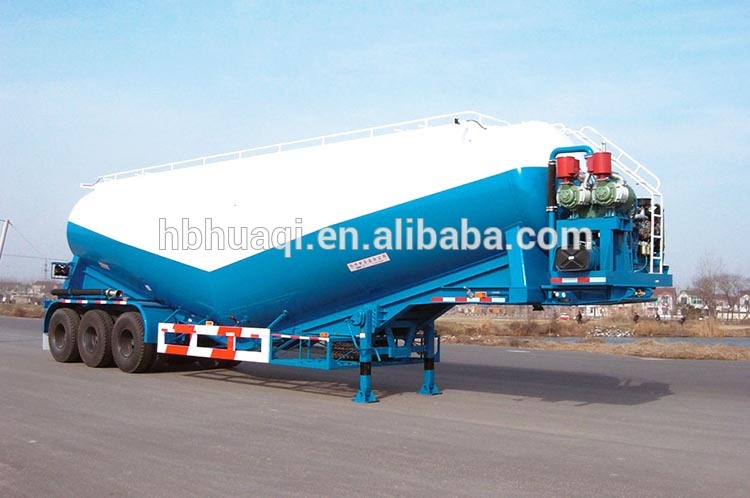

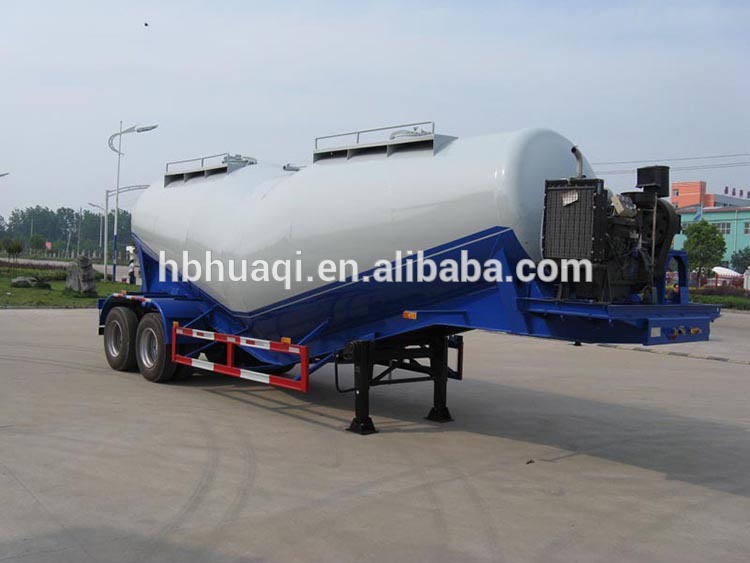

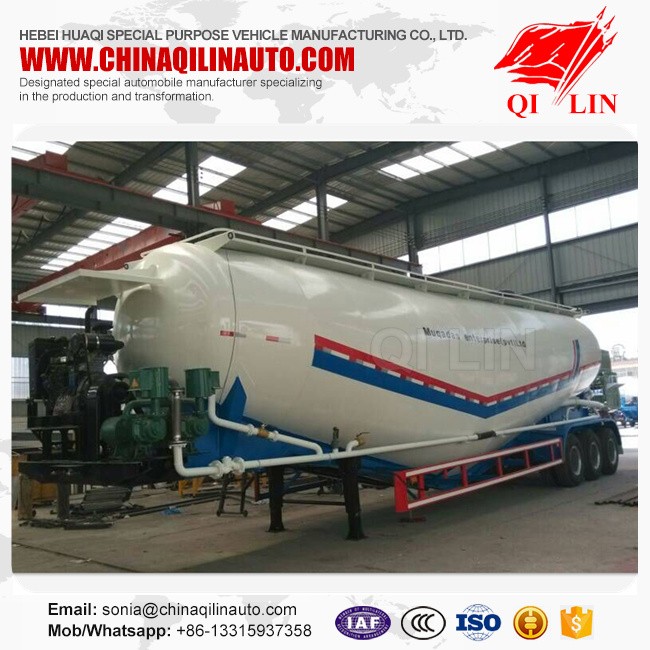

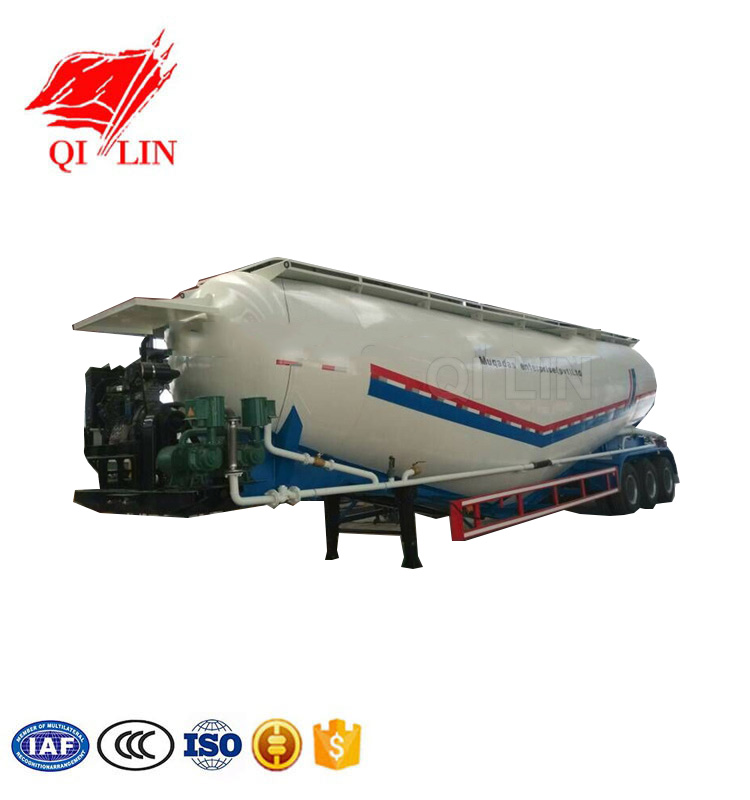

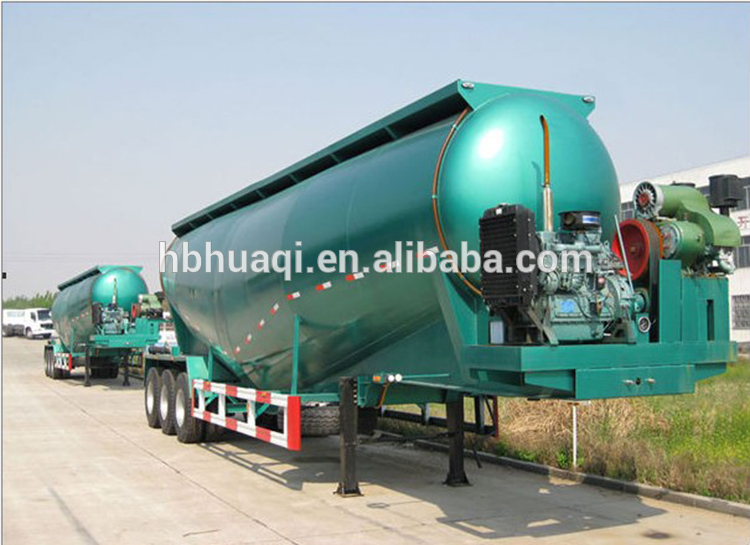

Product Image
Other Products
 |  |  |
 |  |  |

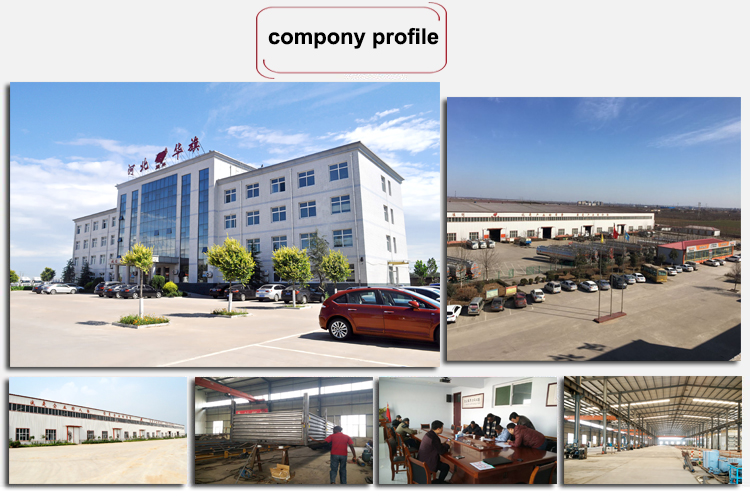

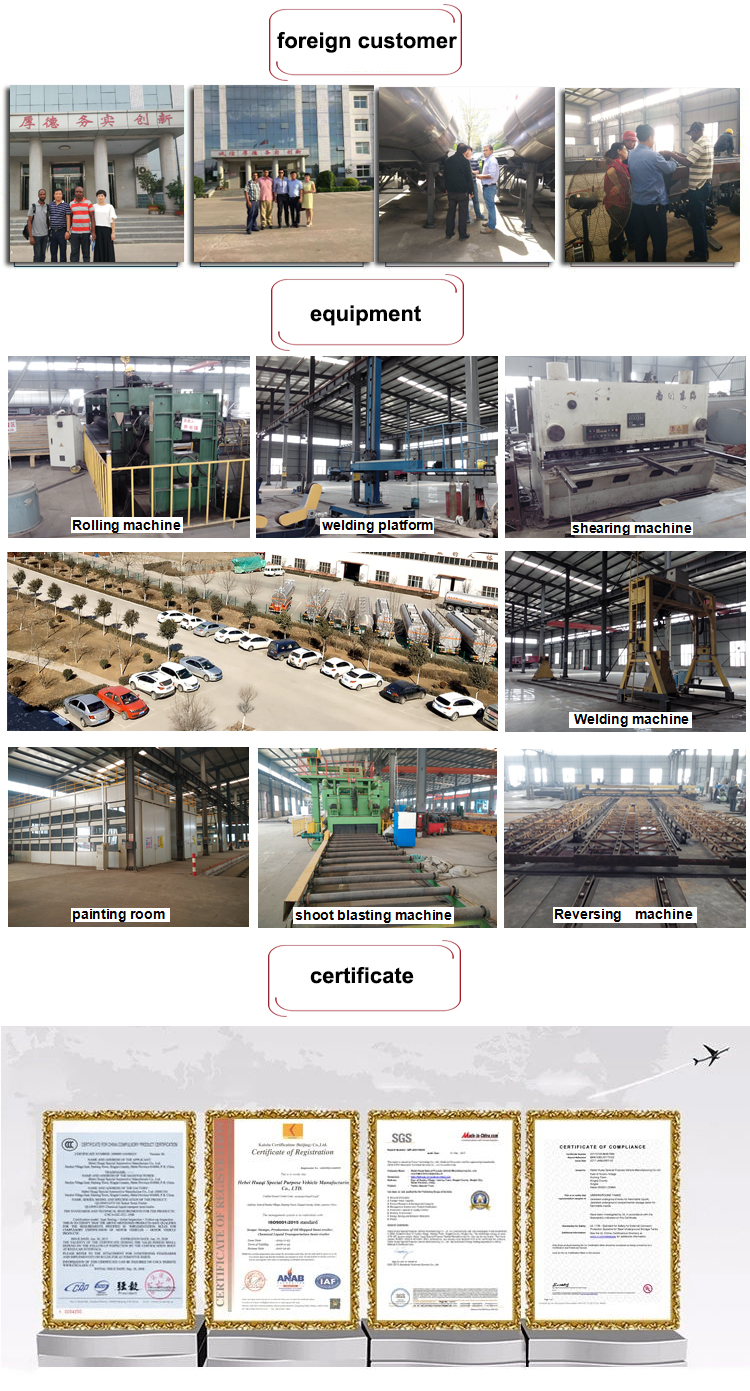

Company Information
