Product Description

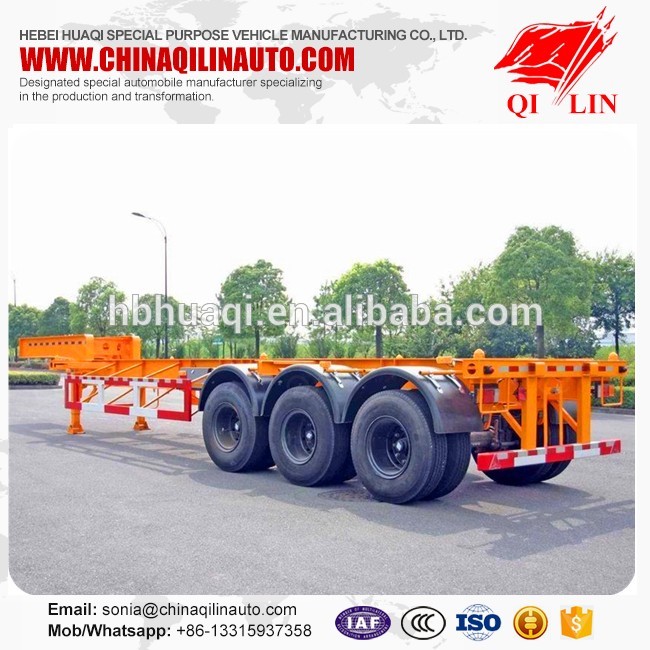

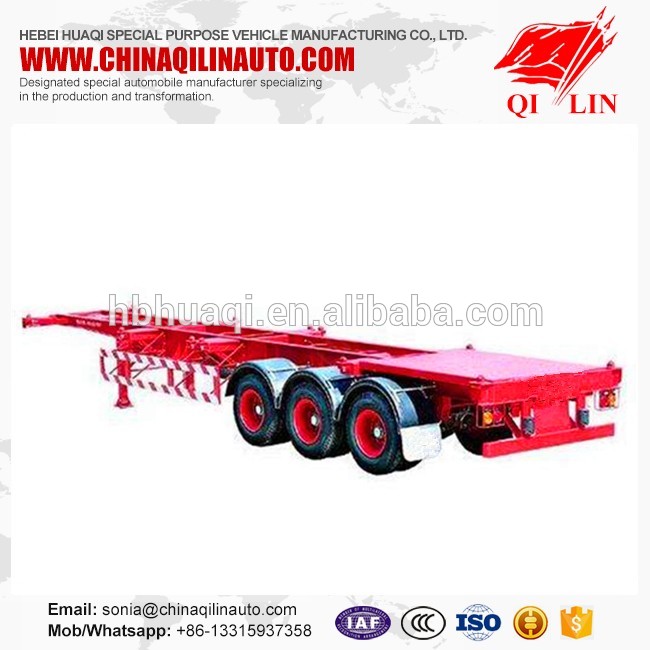

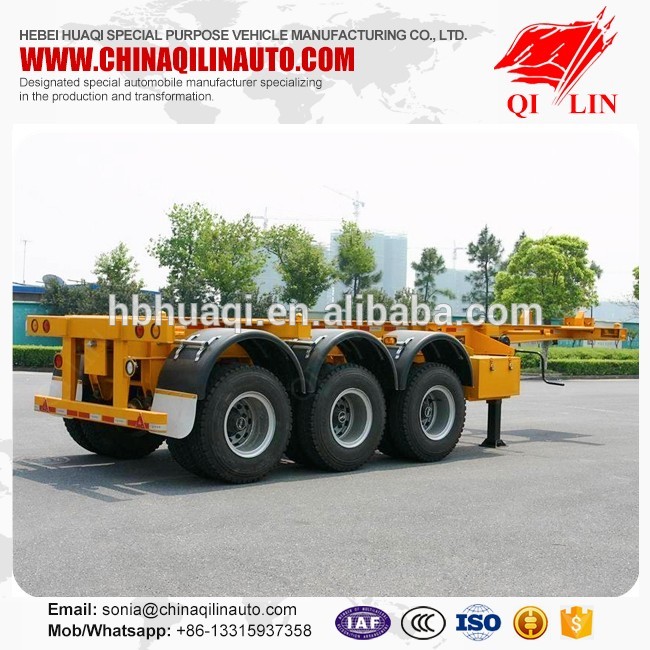

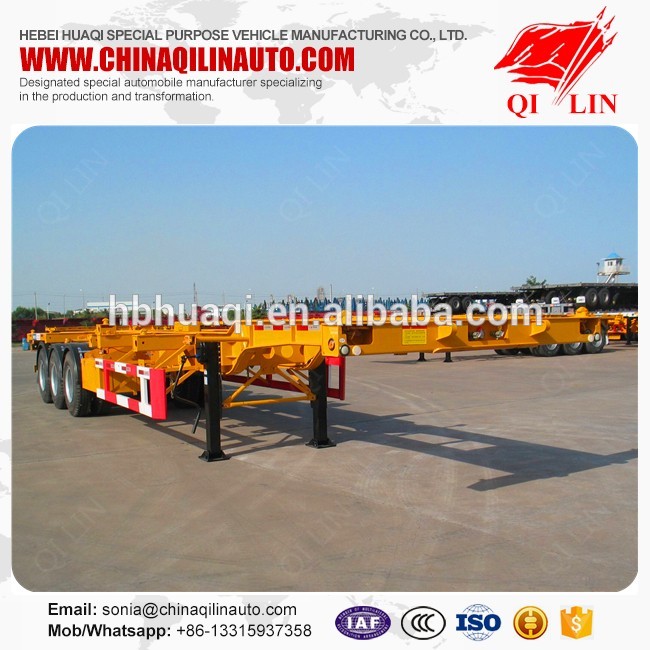

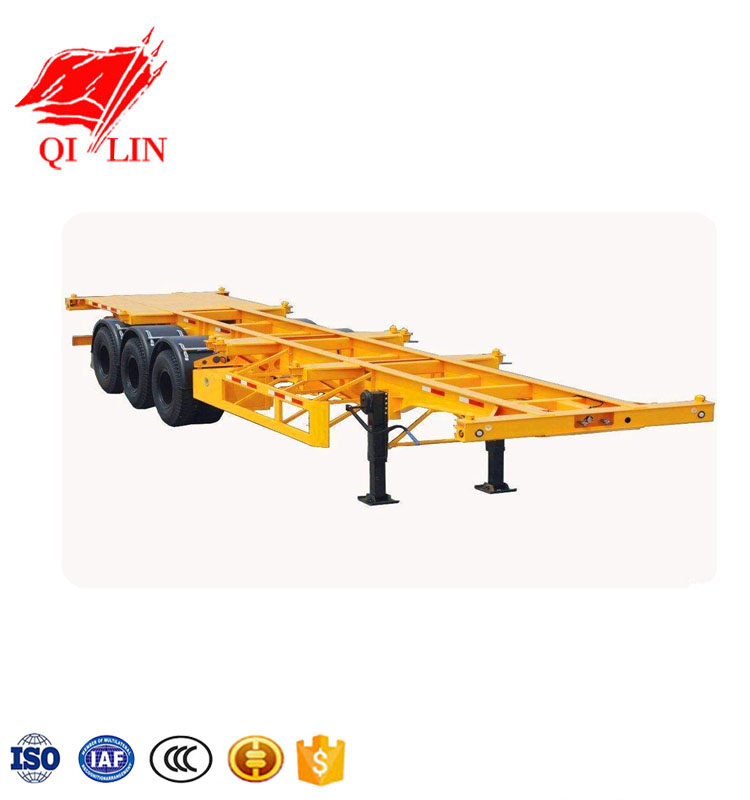

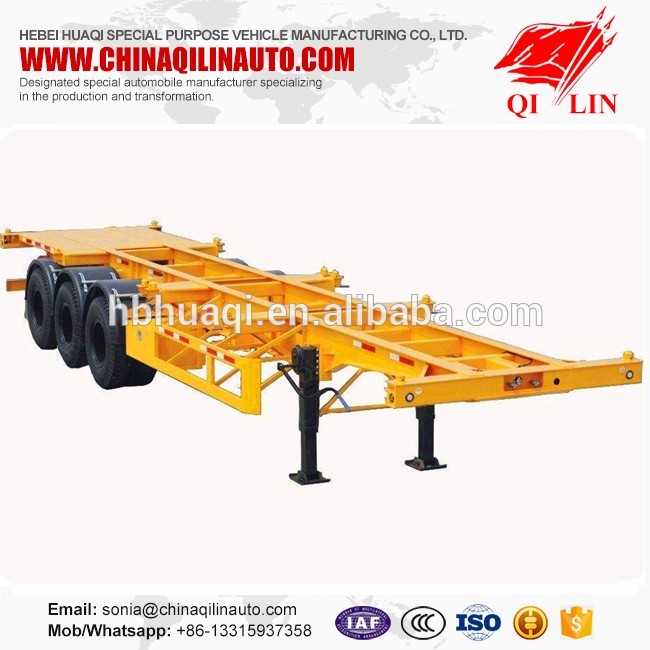

3 axles 40ft skeleton semi trailer with competitive price
Brand | Qi Lin |
Model | QLG9401TJZ |
Function | Load 2*20ft / 1*40ft container |
Overall dimension | 12500mm*2500mm*1600mm |
Max payload | 50000kg |
Tare weight | 6500kg |
Main beam | 500mm height ,upper/down plate is 14mm/14mm,middle plate is 8mm. |
Axle | Fuwa 13T/3pcs |
Tire | 11.00R20/12pcs |
Rim | 8.0-22.5/12pcs |
Twist lock | 12pcs |
Leaf spring | 90mm width*10pcs*13mm/6 sets |
Kingpin | Interchangeable 50#/90# |
Landing gear | 28T standard made in China |
Suspension | Mechanical suspension |
Tool box | 1pc standard |
Braking system | with ABS system made in China |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Packing | Nude,polish with wax before shipment. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |

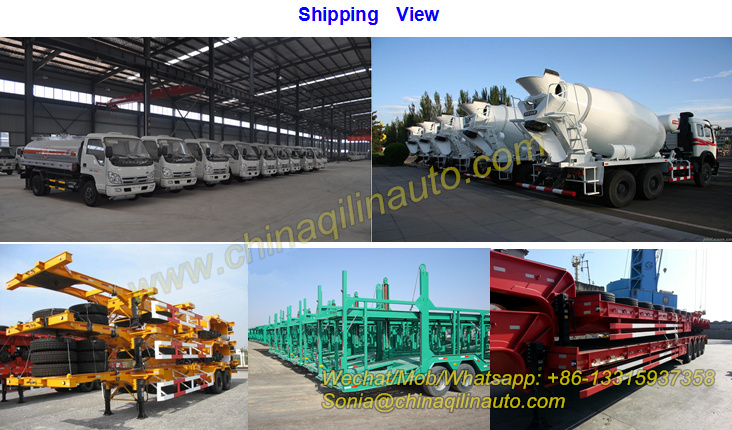

Packaging & Shipping
1 Nude , Polish with water wax before shipment .
2 40HQ ,Ro-Ro ship and Bulk Ship Transport .
Our Services
Our engineer will go to your side when the semi trailer goes something wrong;
Any parts of the semi trailer will be send to you as soon as possible;
Technology consulting are appreciated all the time!
Company Information
1.Hebei Huaqi was established in 1956 . more than 60 years trailer making experiences .
2.We have more than 300 emplyee . with 24 technical engineers , 18 senior engineers .
3.We are one of the largest manufacturer in China , have passed ISO9001:2008 , CCC National Compulsory Certificate.
4. "Qi Lin" Brand is Famous brand in Hebei Province ,China .
Welcome you to visit our factory !
1.We can pick up you in the airport port ,
2 book the hotel for you,
3. show around the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stock trucks if you need the trucks urgently.
Factory View

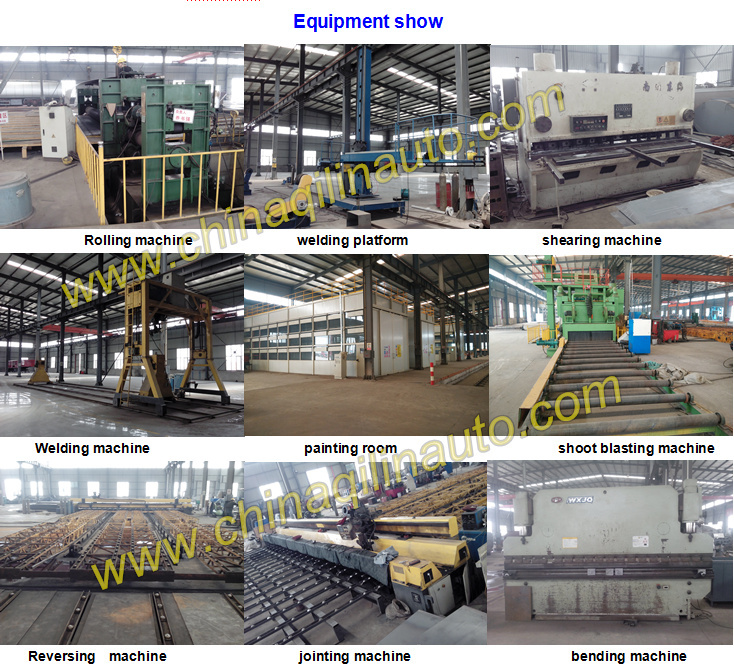

Production line

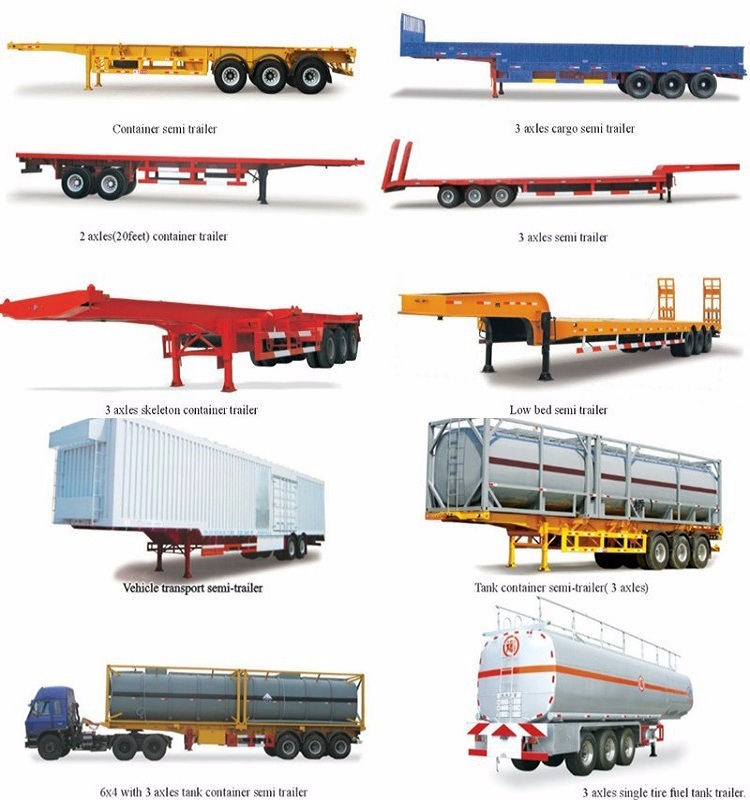

Other Products
