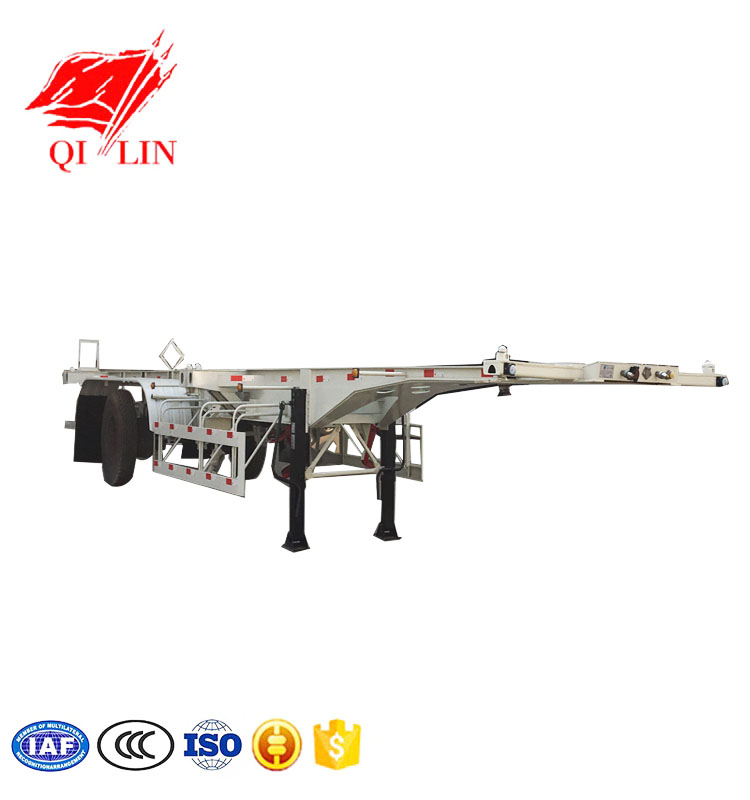

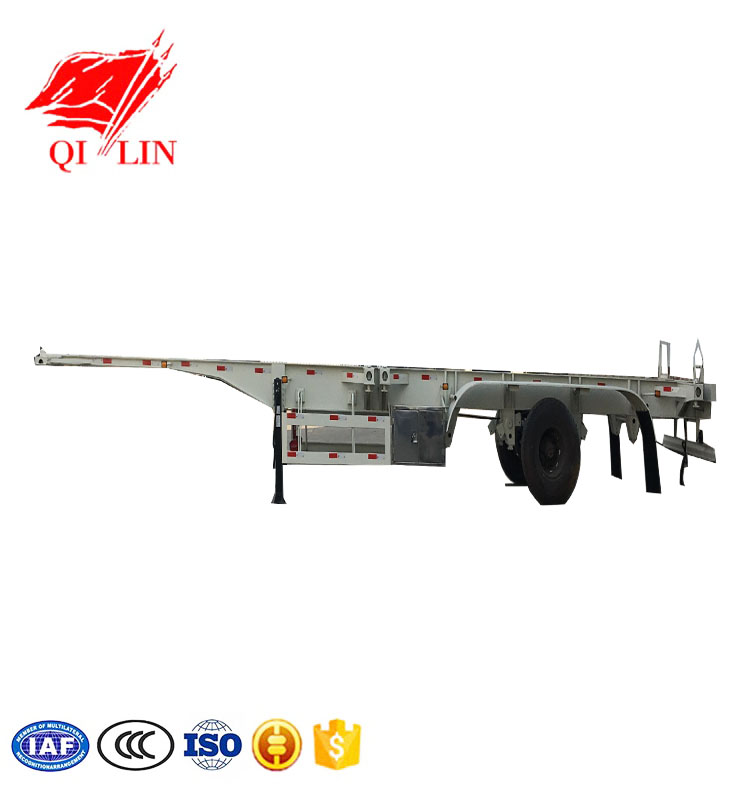

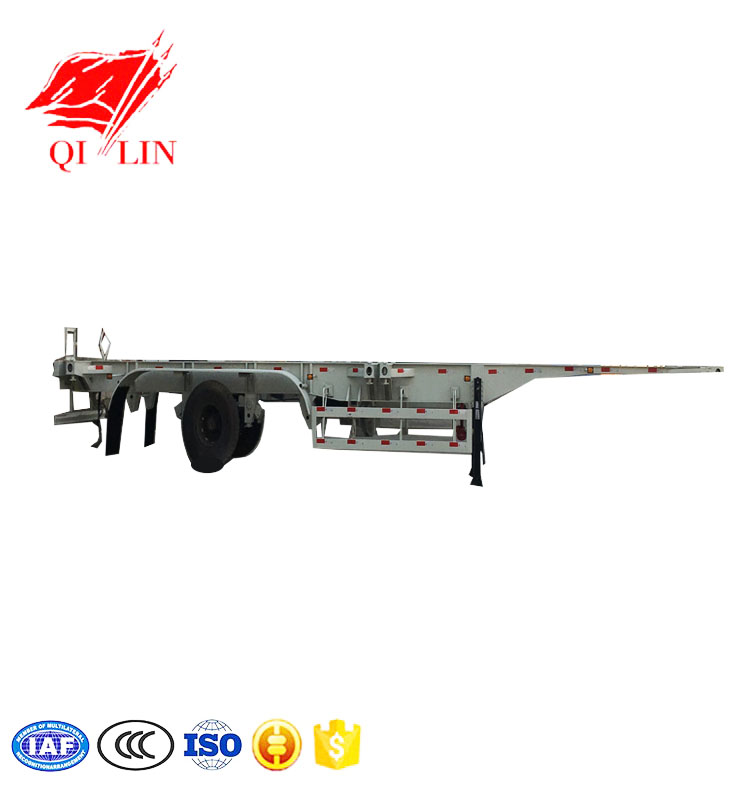

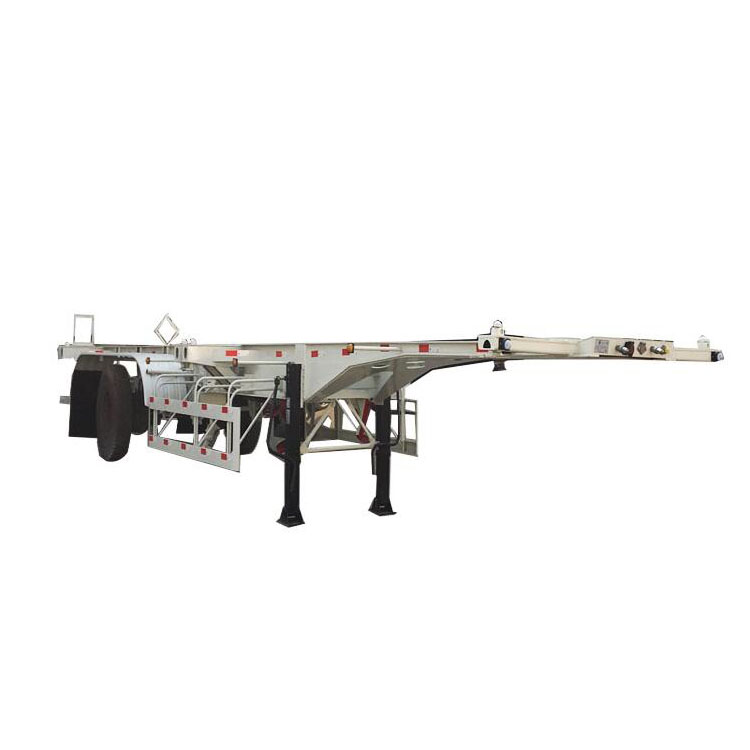

Model

QLG9402TWY

Function

Load one 40ft container or two 20ft container

Overall dimension

Max payload

Curb weight

5700kg

Gross weight

40000kg

Wheelbase

Rear suspension

1250mm

Rear tread

1840mm

Axle

24000kg payload/3pcs

Tire

12R22.5 12PR/12pcs

Leaf spring number

-/10/10/10

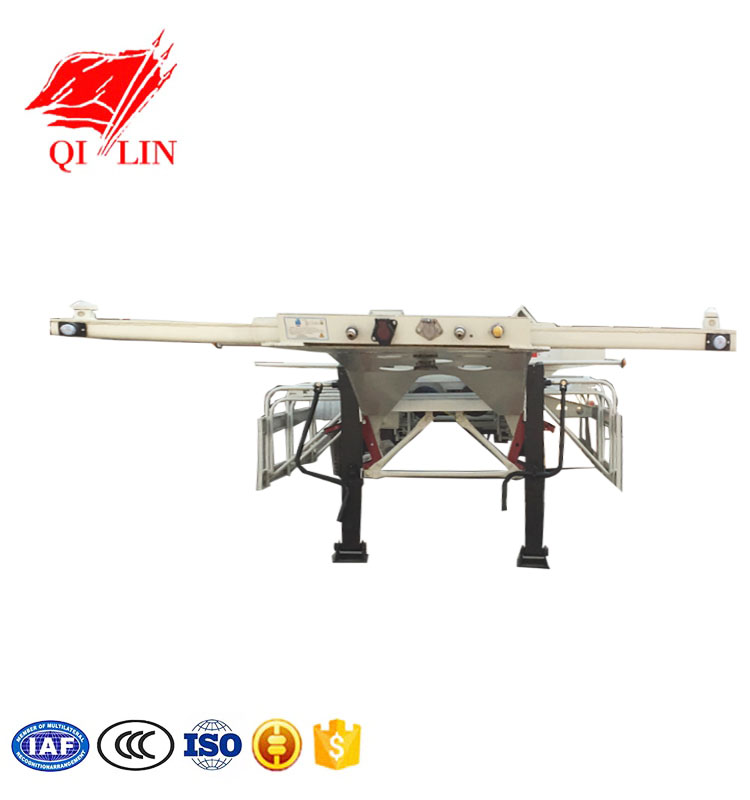

Kingpin

Interchangeable 50#/90#

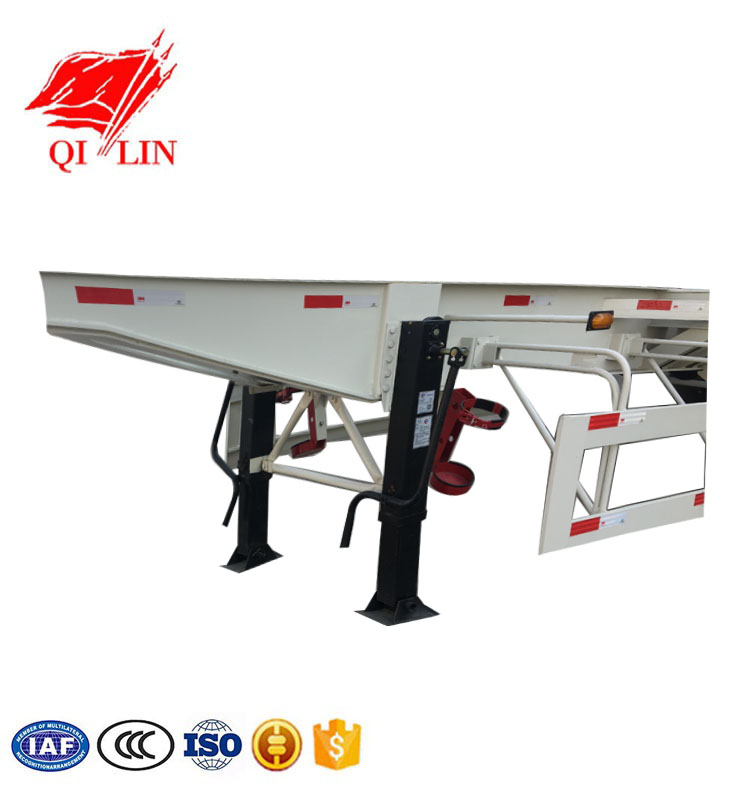

Landing gear

28T standard

Suspension

Mechanical suspension

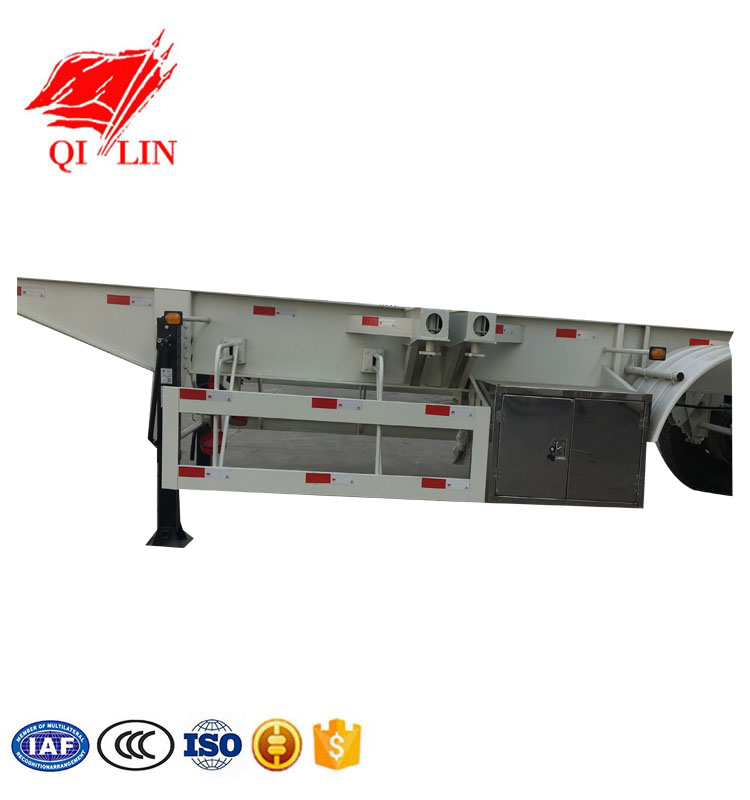

Tool box

1pc standard

Braking system

with ABS system

Electrical system

24 voltage,7 wire harness,LED lights.

Painting

With shot blasting and 4 layers painting,color is optional.

Packing

Nude,polish with wax before shipment.

Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.
