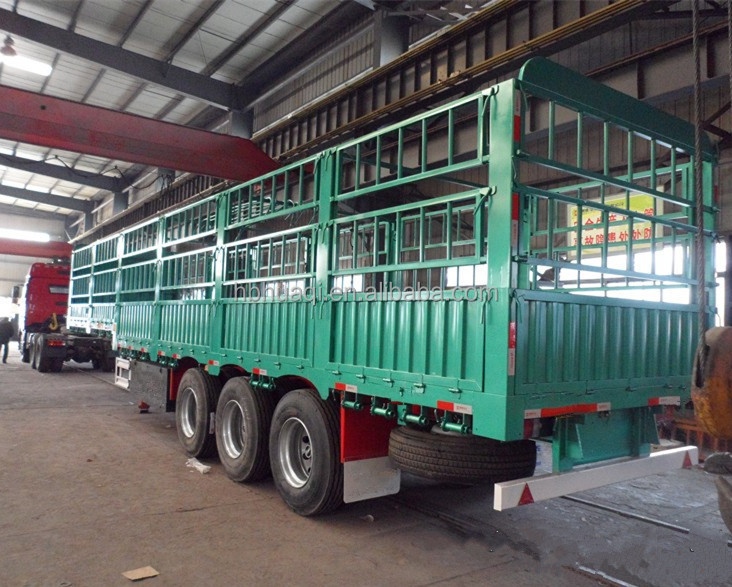

Storage Semi trailer can be used widely in transport food , coal , vegetables ,wood , etc , It is very easy to be loaded by 40HQ , we made the rear part of the trailer fixed by bolts . you can save the freight cost
storage semi Trailer | |||||||||
Trailer Model | QLG9400CCY | ||||||||
Function | Load container or bulk cargo | ||||||||
Overall dimension | 12340*2500*3800mm | ||||||||
Max payload | 80Ton | ||||||||
Curb weight | 8 Ton | ||||||||
Main Beam | Q345560mm height, upper/down plate is 20mm, middle plate is 10mm | ||||||||
side beam | 160mm channel steel , 100mm cross beam | ||||||||
Platform | 3 mm checkered plate | ||||||||
box plate | 940mm height , Q235 carbon steel 1.5mm thickness | ||||||||
Running constructon | |||||||||
Axle | BPW 14T | ||||||||
Axle Number | 3 pieces | ||||||||
tyre | Triangle 315/80R22.5 | ||||||||
Number of Tyre | 13 pieces ( 1 spare tire included) | ||||||||
rim | Zhengxin brand9.0-22.5/13 | ||||||||
Twist lock | 12 pieces | ||||||||
leaf-spring | 100width*12pieces*11mm/6 sets | ||||||||
Kingpin | interchangeable 90# /50# | ||||||||
Landing gear | JOST C200 linkage | ||||||||
suspension | German Mechanical suspension | ||||||||
Tool box | 1 pcs standard | ||||||||
Braking system | with WABCO ABS system | ||||||||
Electrical system | 24 voltage | ||||||||
7 ways(7 wire harness) | |||||||||
Light | LED type | ||||||||
Packing | Nude,Polish with Wax before Shipment | ||||||||
Painting | Color is optional | ||||||||
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||
