| 3 axle 40Ton Factory low price dump semi trailer | |||||||||
| Trailer Model | QLG9403GNR | ||||||||
| Overall dimension | 10000*2500*3900mm | ||||||||
| Main Beam | The main Beam height is 500mm,upper/down plate is 14/16mm,middle plate is 6mm | ||||||||
| Side Beam | 200mm bending plate/180mm channel steel | ||||||||
| Max payload | 40-50 Ton | ||||||||
| Plate Thickness | Bottom :5mm. side : 4mm | ||||||||
| Running constructon | |||||||||
| Axle | Fuwa 13T | ||||||||
| Axle Number | 3 pieces | ||||||||
| tyre | 11.00R20 | ||||||||
| Number of Tyre | 13 pieces ( 1 spare tire included) | ||||||||
| Rim | 8.0-22.5/13 | ||||||||
| leaf-spring | 90width*10pieces*13mm/ 6 sets | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| Lifting | HYVA Brand ,196*7350mm | ||||||||
| Landing gear | 28T Made in China | ||||||||
| suspension | Mechanical suspension | ||||||||
| Tool box | 1 pcs standard | ||||||||
| Braking system | with ABS system made in China | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||

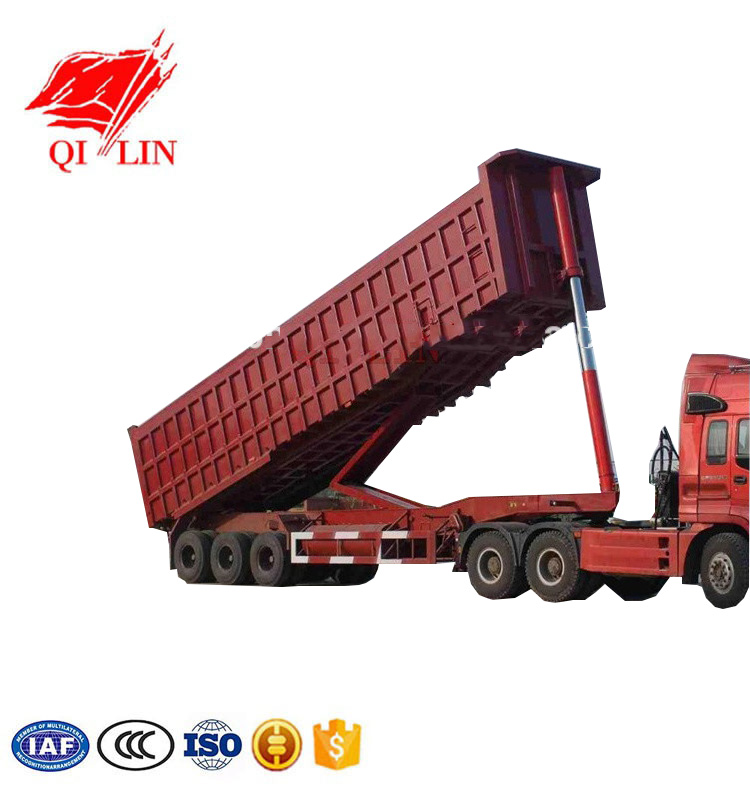

Product Image
