3 axles 60t hydraulic self discharge van dumper trailer
Brand | Qi Lin |
Model | QLG9403GNR |
Function | Load bulk cargo |
Overall dimension | 10000mm*2500mm*3900mm |
Max payload | 60000kg |
Main beam | Main beam height is 500mm, upper/down plate is 14mm/16mm,middle plate is 6mm. |
Side beam | 200mm bending plate/180mm channel steel |
Plate thickness | Bottom 5mm,side 4mm |
Axle | Fuwa 13T/3pcs |
Tire | 11.00R20/12pcs |
Rim | 8.0-22.5/12 |
Leaf spring | 90width*10pcs*13mm/6 sets |
Kingpin | Interchangeable 90#/50# |
Lifting | HYVA Brand,196mm*7350mm |
28T made in China | |
Suspension | Mechanical suspension |
Tool box | 1pc standard |
Braking system | with ABS system made in China |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |

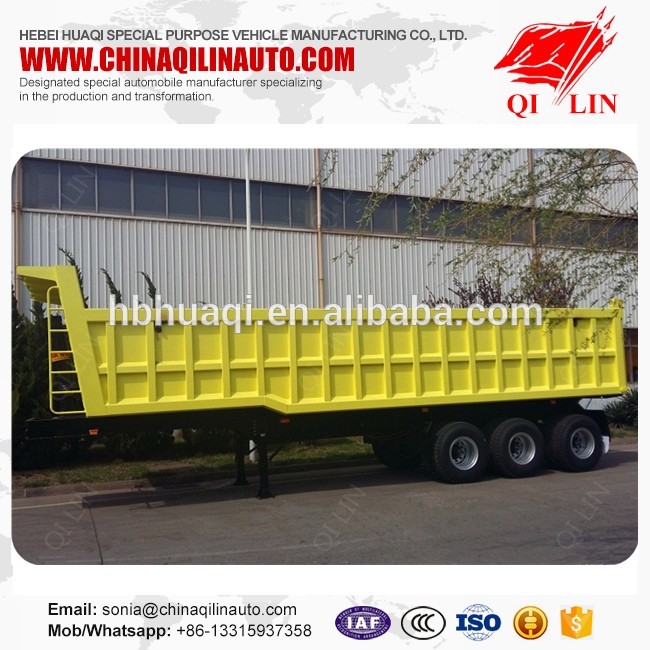

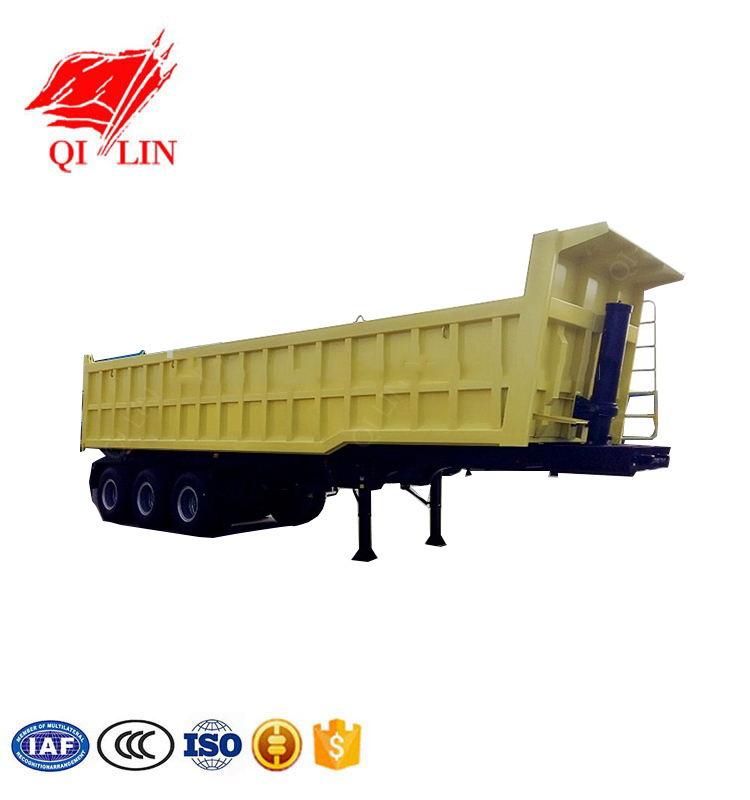

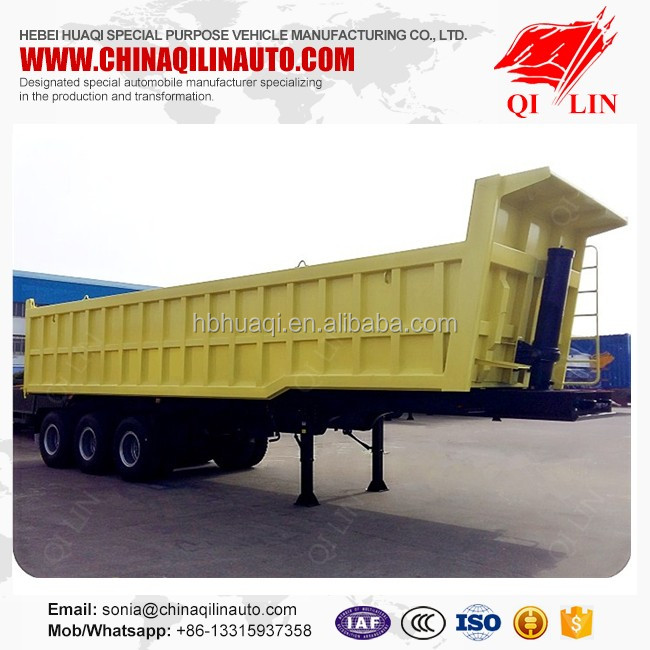

Product Image
