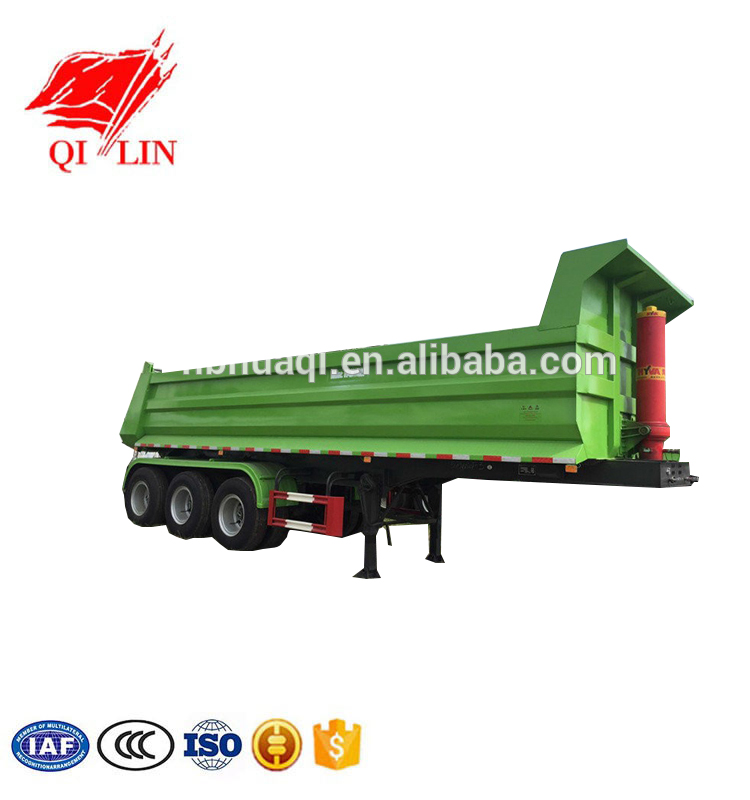

Product Description
Characteristics
· Round design for easy loading and unloading.
· Transport sand, gravel and construction materials.
· Completely smooth in its interior without polishing and without grinding.
· High strength steel or Hardox Steel.
· With lower center of gravity.
· Capacities from 20 to 30 M³.
SPECIFICATIONS | |
BODY OF TRAILER | Carbon steel 3/16 and 1/4 |
FRAMEWORK | Carbon steel |
CHASSIS | Integral to the center of fifth wheel. |
Front and suspension | Made of Carbon Steel |
KING PIN | Carbon steel, interchangeable 2"/3.5" |
TIRE HOLDER | In Carbon Steel, basket type behind the landing gear. |
LODERA | Made of rigid plastic back and front with supports |
SUSPENSION | Mechanical |
AXELS | 3 axles lubricated with oil. BPW or FUWA brand |
BREAKS | Self-adjusting racks without dust cover, ABS brake system. |
RINES | In Steel, pre-painted white |
TIRES | Optional |
HYDRAULIC SYSTEM | Cylinder of FUWA |
PNEUMATIC SYSTEM | Pneumatic system for rear door opening. |
STAIRS | Carbon steel, located one on each side of the van. |
LANDING GEAR | 1 set , 2 speeds. |
MUDGUARD | Aluminum / plastic on suspension |
WIRING | Exposed Harness |
LIGHTS | Type LEDS with reflectors and directional lights |
PAINTING | Epoxy |
DRIVING HOOK | Optional |
OPTIONAL EQUIPMENT | KIT HYDRAULIC: PTO installation, pneumatic drive, direct coupled, hydraulic pump direct coupling, tank for hydraulic oil type backpack, console to operate PTO pump. |
Detailed Images

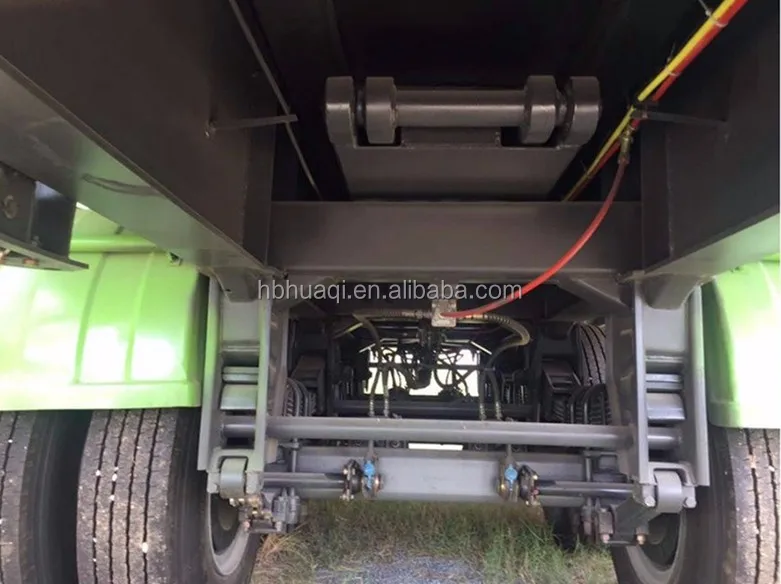

Chassis and Frame
Adopted high quality Q345 carbon steel/T700 steel to ensure the loading capacity and stable working performance
Axles
Adopted BPW/FUWA/china brand axles, to meet diffrents demanda and ensure working security.

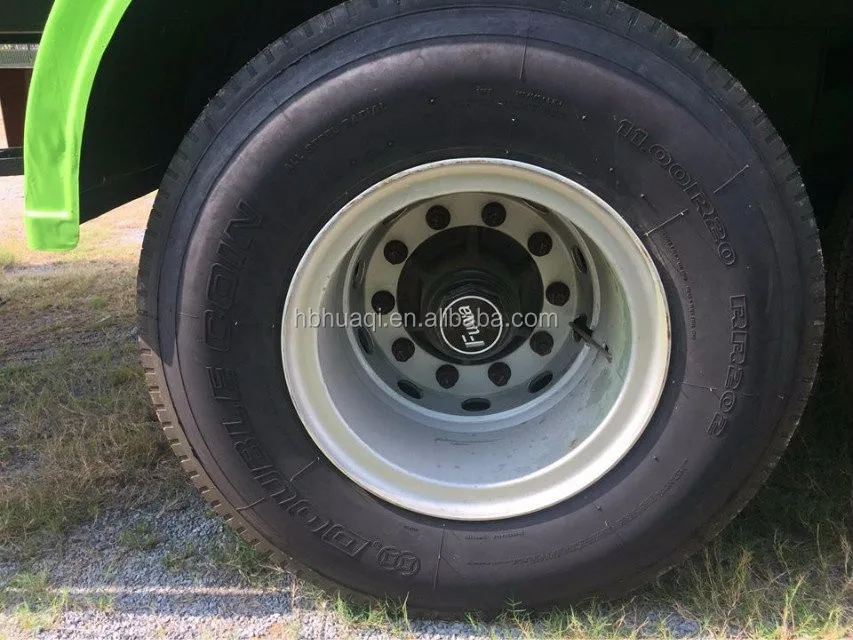

Tires
Adopted Chinese well-known tires to meet different requests of road conditions, brands optional.
Packing & Delivery
Packaging | |
Method | By bulk cargo ship or Ro-ro ship |
Size | 13500x3050x2700mm |
Packaging Details | By nude packing and waxed before shipment. |
Packaging | |
Method | By 40HQ |
Size | 13500x3050x2700mm |
Packaging Details | By nude packing and waxed before shipment. |
Our Service
Pre-Sales Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
After-Sales Service
1. Our engineer will go to your side when the semi trailer goes something wrong.
2. Any parts of the semi trailer will be send to you as soon as possible.
3. Technology consulting are appreciated all the time.
