| Factory low price dump semi trailer | |||||||||
| Overall dimension | 9000*2550*1800mm | ||||||||
| Max payload | 40 Ton | ||||||||
| Axle | Fuwa 13T | ||||||||
| Axle Number | 3 pieces | ||||||||
| tyre | 12R22.5 | ||||||||
| Number of Tyre | 12 pieces | ||||||||
| Kingpin | interchangeable 90# /50# | ||||||||
| suspension | Four leaf springs | ||||||||
| Tool box | 1 pcs standard | ||||||||
| Girder material | T700L | ||||||||
| Longitudinal beam height | 480mm | ||||||||
| On the wing | 10mm | ||||||||
| The wing | 12mm | ||||||||
sternum | 6mm | ||||||||
| leg material | aluminium | ||||||||
| Braking system | with ABS system made in China | ||||||||
| Electrical system | 24 voltage | ||||||||
| 7 ways(7 wire harness) | |||||||||
| Light | LED type | ||||||||
| Packing | Nude,Polish with Wax before Shipment | ||||||||
| Painting | Color is optional | ||||||||
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||||||||

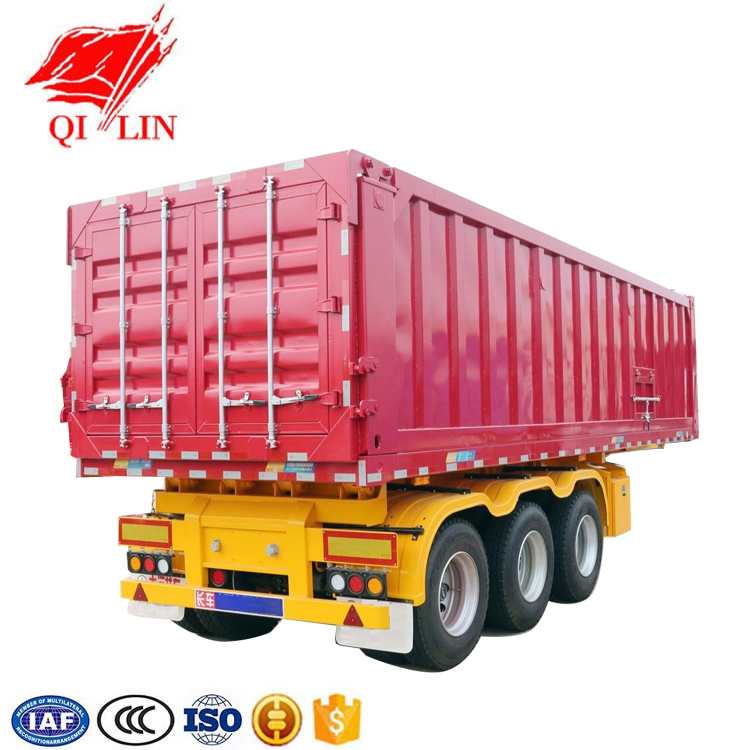

Product Image
