Brand

Qi Lin

Name

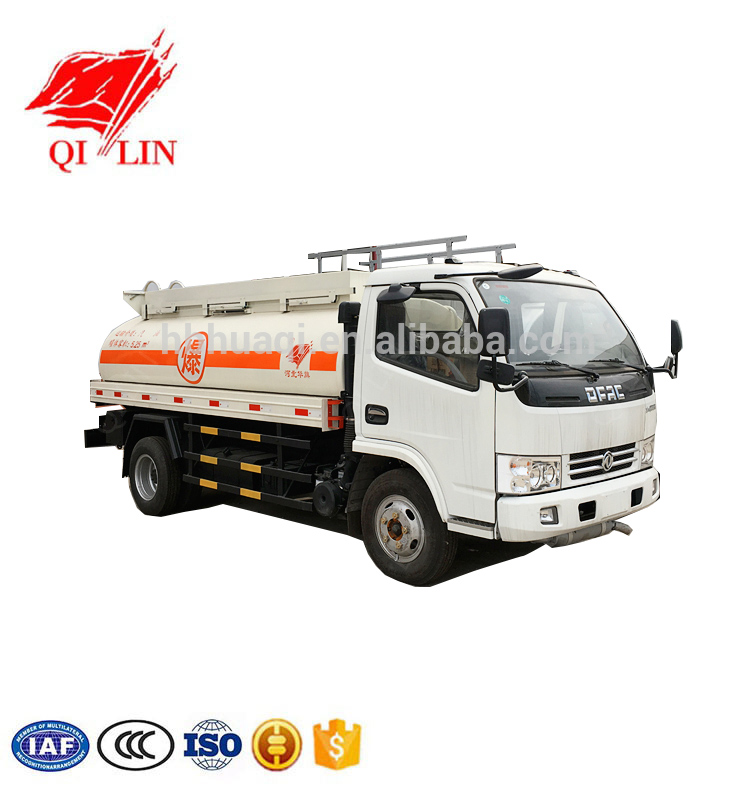

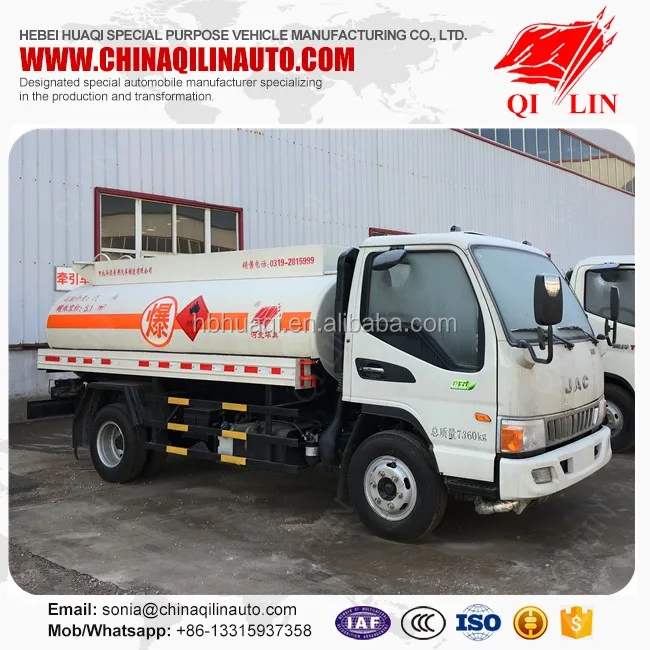

Refuel tank truck

Model

QLG5071GJY

Overall dimension

5995mmX1990mmX2430mm

Overall gross weight

7360kg

Curb weight

3730kg

Tank specifications:

Tank volume

5100 liters

Tank Shape

Oval

Compartment

Single

Tank material

Q235b carbon steel

Tank dimension

3940mmX1700mmX1140mm

Tank thickness

4mm/4mm/4mm

Discharge valve

2.5 inch

Manhole

1pc standard

Refueling machine

1 unit,10m reel

Painting

With shot blasting and 4 layers painting,color is optional.

Chassis specifications:

Chassis brand

JAC HFC1071P92K5C2ZV

Drive type

Left/right hand drive optional

Chassis dimension

5773mmX1900mmX2180mm

Drive wheel

4X2

Max payload

3435kg

Transmission

5 speed forward levers,1 reverse lever.

Tire

7.00R16/6pcs

Cab

3 passengers , without air-conditioner

Front/Rear tread

1620mm/1395mm

Front/Rear suspension

1085mm/1602mm

Wheelbase

3308mm

Approach/Departure angle

18°/17°

Leaf spring number

4/9+7,3/9+7

Engine

Model: WP3Q130E50

Emission

Euro 3

Horse power

128hp

Braking system

With ABS system

Max speed

80km/h

Fuel type

Diesel

Electrical system

24 voltage,7 wire harness.

Light

LED type

Remark:

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.
