3000 liters oil tank truck for diesel gasoline kerosene loading
Brand | Qi Lin |
Model | QLG5080GJY |
Usage | Load diesel/gasoline/kerosene |
Total weight | 7695KG |
Tare weight | 5295KG |
Max payload | 3000KG |
Tank volume | 3 cbm |
Overall dimension | 5950mm×1930mm×2230mm |
Tank dimension | 3800mm×1800mm×800mm |
| Medium | Diesel |
Tank form | Ellipse |
Axle | 1700kg/2795kg load/2pcs |
Tire | 7.00R16 10PR/6pcs |
Leaf spring number | 3+1/6+7 |
Wheelbase | 3360mm |
Front/rear tread | 1530mm/1485mm |
| Displacement
| 2771ml |
| Power
| 81kw/h |
Fuel type | Diesel oil |
Passenger number | 2 persons |
Max speed | 95km/h |
Braking system | With ABS system |
Electrical system | 24 voltage,7 wire harness. |
Light | LED type |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |

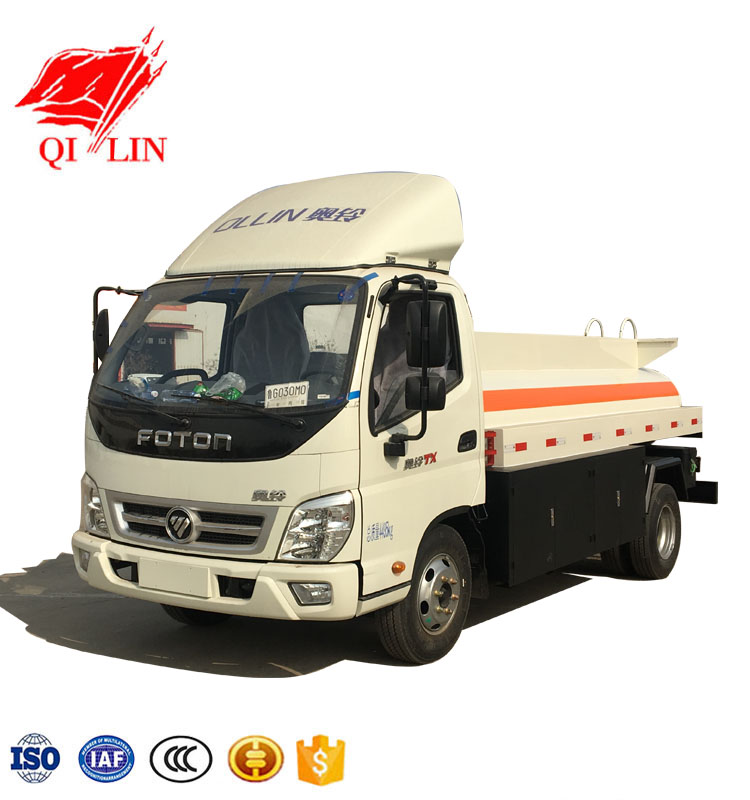

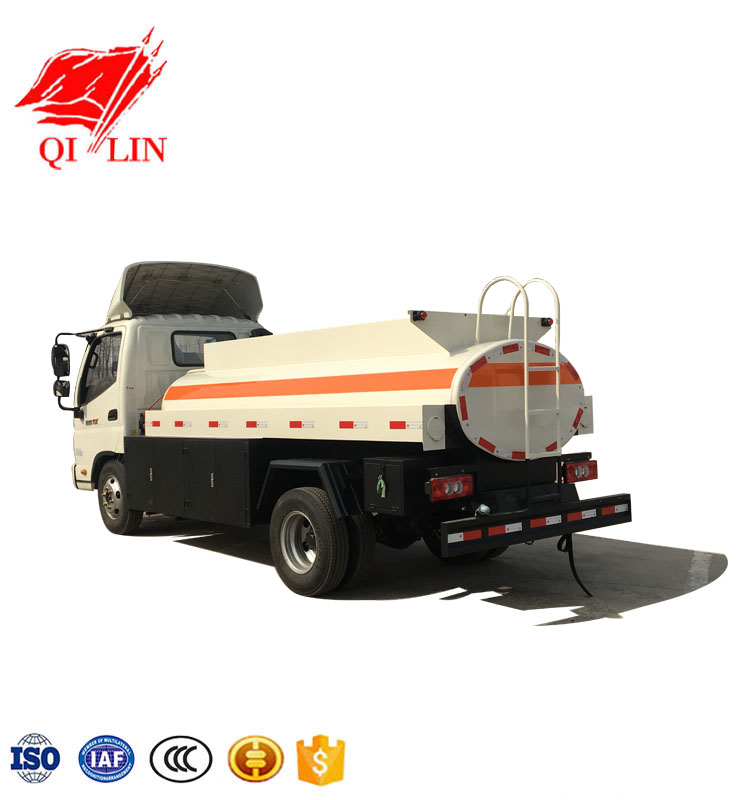

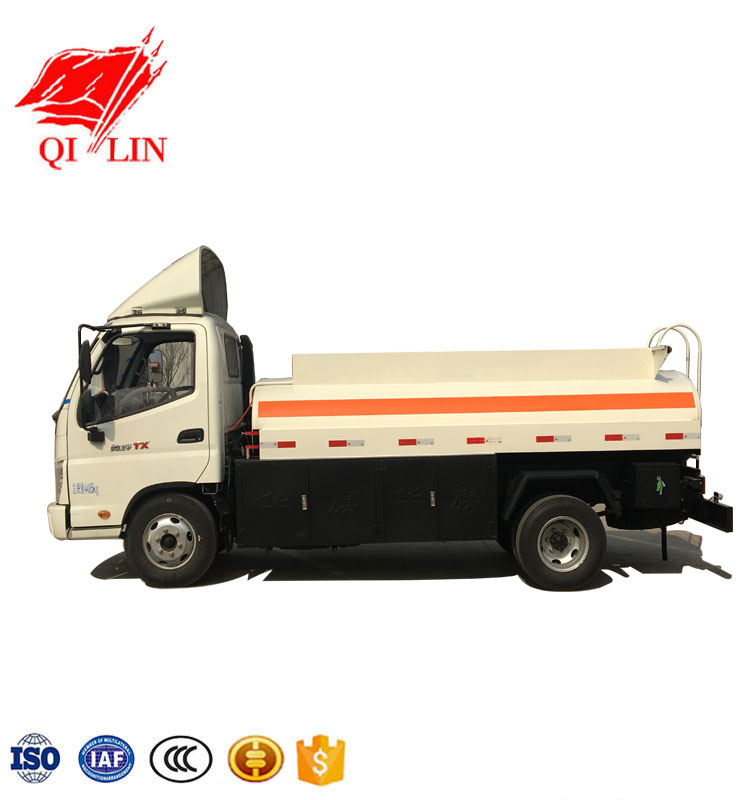

Product picture
