| Brand | Qi Lin |
| Model | QLG5115GYY |
| Usage | Load diesel/gasoline/kerosene |
| Tare weight | 4800kg |
| Max payload | 6500g |
| Overall dimension | 6950×2200×2800mm |
| Tank size | 4800×1950×1300mm |
| HorsePower | 156hp |
| Maximum output | 115kw |
| Engine Capacity | 3.856L |
| Tire | 8.25R20 14PR,245/70R 19.5 |
| Leaf spring number | 8/10+7 |
| Front/rear tread | 1903mm/1640mm |
| Wheelbase | 3800mm |
| Fuel type | Diesel |
| Front/rear suspension | 1130/2020mm |
| Max speed | 80km/h |
| Volume of tank | 8.2m³ |
| wheelbase | 3800mm |
| Electrical system | 24 voltage,7 wire harness. |
| Light | LED type |
| Painting | With shot blasting and 4 layers painting,color is optional. |
| Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation |

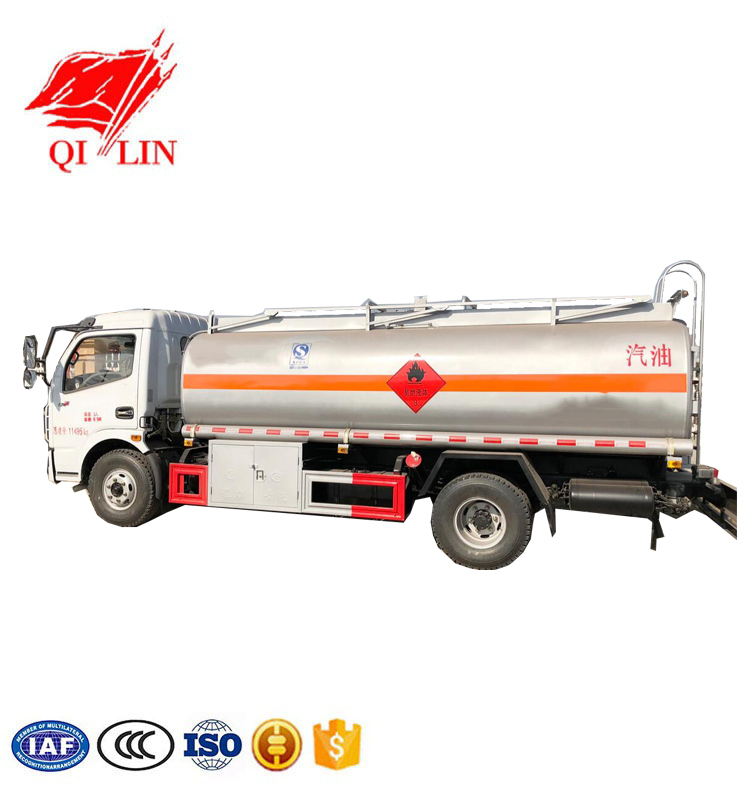

Product Image
