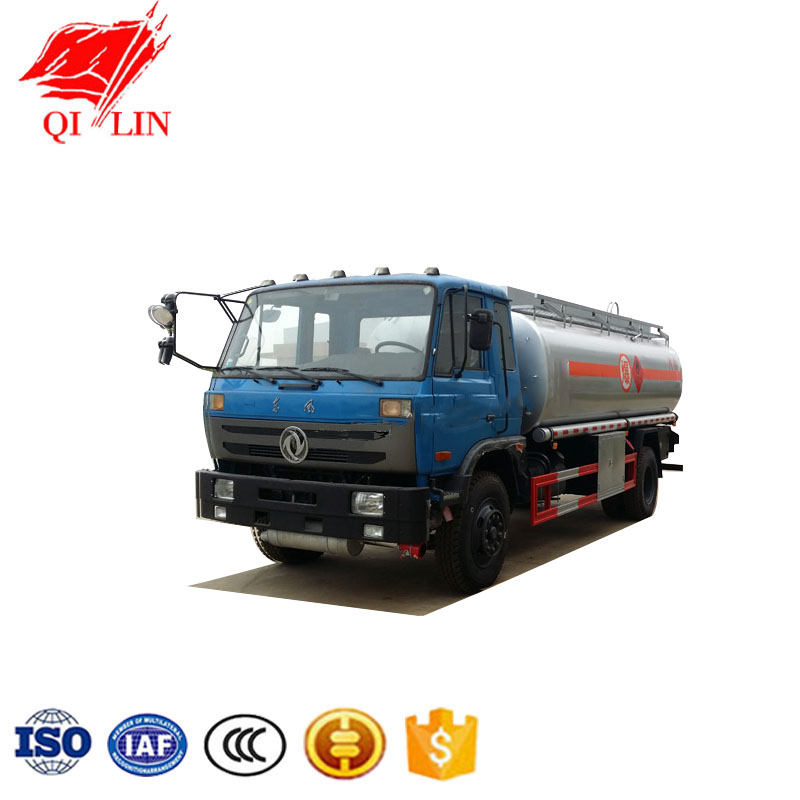

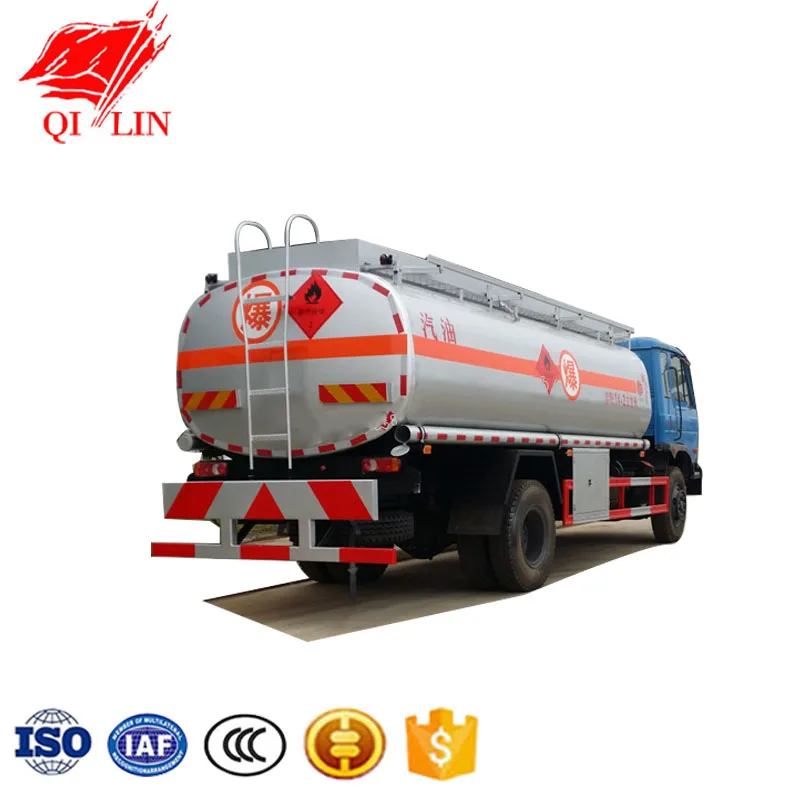

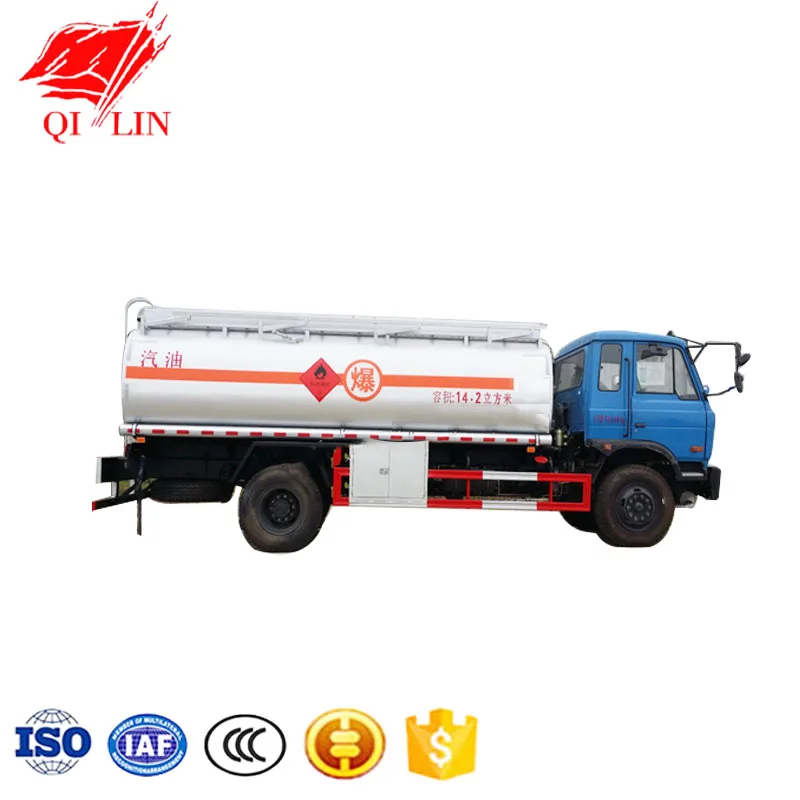

Product details

Chassis brand

DONGFENG /FOTON/DAYUN/FAW optional

Drive form

LHD or RHD optional

Emission standard

Euro 2/3/4/5 optional

Drive model

4*2

Drive form

LHD or RHD  optional

Cab type

One and a half cabin ,with a sleeper

Overall dimension

8500mm×2480mm×3180mm

Tanker dimension

5800mm×2250mm×1400mm

Tanker capacity

14.2 CBM

Tanker material

Carbon steel

Engine brand

CUMMINS engine

Engine model

ISB170 30/33/40  YUCHAI 6J180-42 optional

Horsepower

180hp/190hp

Displacement

5900ml  /6500ml

Emission standard

Euro 2/3/4/5

Total weight

15900kg

Tare weight

7205kg

Rated payload

8500kg

Wheelbase

4700mm

Max speed

80km/h

Tyre type

10.00R20 steel wire tire

Tyre number

6+1 (with a spare tire )

Transport medium

Gasoline, diesel ,kerosene,

Electrical system

24 voltage,7 wire harness,LED lights.

Painting

With shot blasting and 4 layers painting,color is optional.

Packing

Nude,polish with wax before shipment.

Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.

1.Price is valid within 10 days.

2.Payment terms:by T/T 30% as deposit,70% balance before shipment.

3.Delivery time:within 25 days after received deposit.
