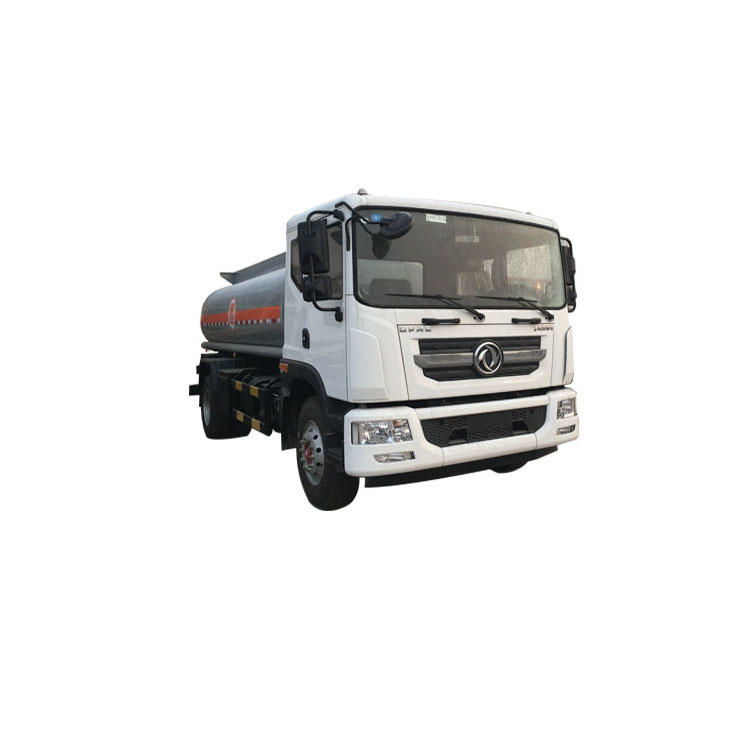

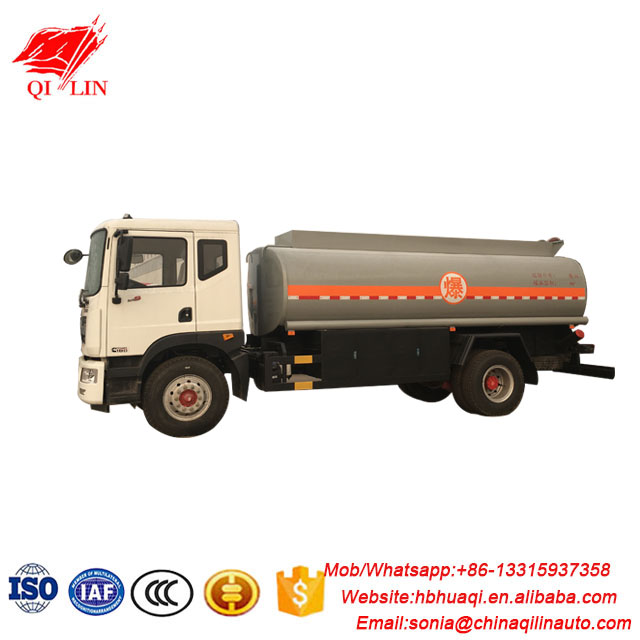

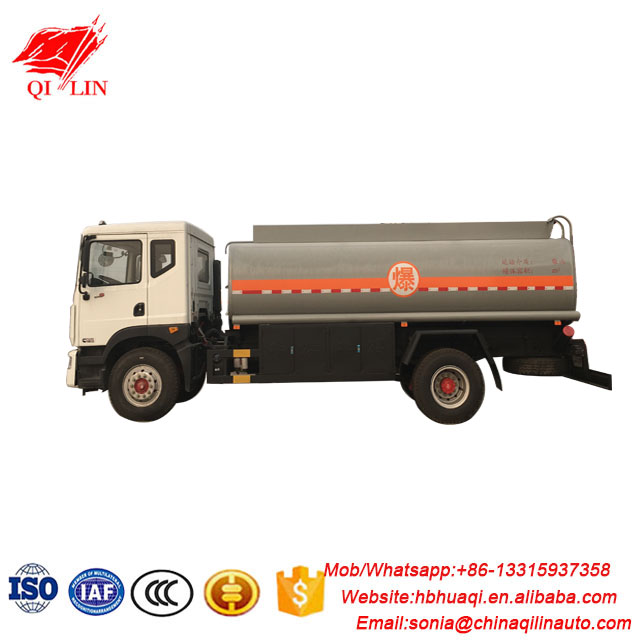

Model

QLG5110GYY

Usage

Load diesel/gasoline/kerosene

Total weight

11495kg

Tare weight

4890kg

Max payload

6410kg

Tank volume

8.1cbm

Overall dimension

Tank dimension

4760mm*1900mm*1270mm

Protection device connect type

Screw bolt

Bottom edge height

470mm

Axle

4595kg/6900kg load/2pcs

Tire

8.25R20 14PR/6pcs

Leaf spring number

8/10+7,11/9+7

Wheelbase

3800mm

Front/rear tread

1770mm/1640mm

Front/rear suspension

1210mm/1990mm

Approach/departure angle

24°/14°

Fuel type

Diesel oil

Passenger number

3 persons

Max speed

80km/h

Braking system

With ABS system(36BG13-30010)

Electrical system

24 voltage,7 wire harness.

Light

LED type

Painting

With shot blasting and 4 layers painting,color is optional.

Remark

The above mentioned data is for your reference only.

The detailed specification will be subject to our final confirmation.
