8X4 tractor head excavator transport 25 tons low bed truck
Vehicle dimensions | |
Brand | QI LIN |
Name | Low bed truck |
Model | QLG5311TDP |
Overall dimension | 11100mmX2495mmX3450mm |
Payload platform length | 7200mm |
Rear ramp length | 1000mm |
Gross weight | 30950kg |
Curb weight | 16000kg |
Max payload | 14755kg |
Chassis specifications | |
Chassis brand | Dongfeng/Foton/JAC/Hino(optional) |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 8X4 |
Transmission | Manual,9 forward gears,1 backward gear. |
Cab | 3 passengers |
Tire | 10.00R20 18PR/12pcs |
Axle payload | 6500kg/6500kg/17950kg |
Axle number | 4pcs |
Front/rear tread | 2040mm/1860mm |
Front/rear suspension | 1495mm/2655mm |
Wheelbase | 1800mm+3800mm+1350mm |
Approach/departure angle | 27°/12° |
Leaf spring number | 9/9/12 |
Engine | Commins/Yuchai/Chaocha/Hino(optional) |
Emission | Euro 2/3/4/5(optional) |
Displacement | 9726ml |
Horse power | 300hp |
Braking system | With ABS system |
Max speed | 80km/h |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. |

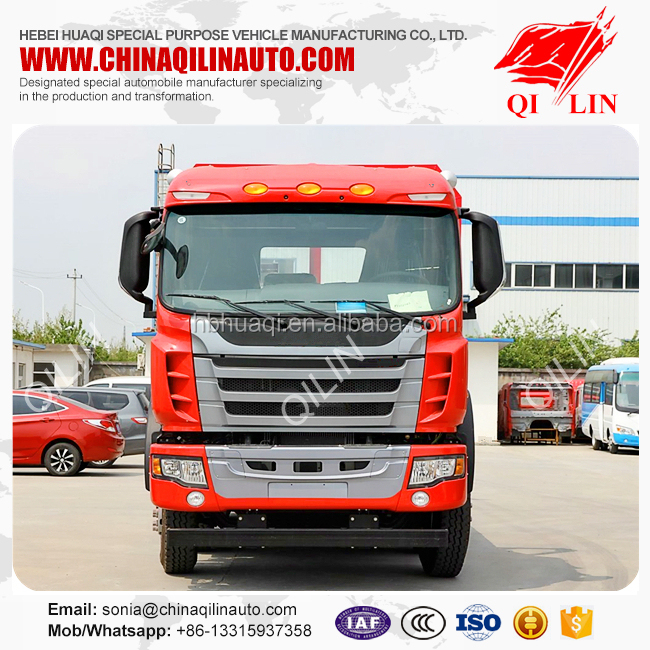

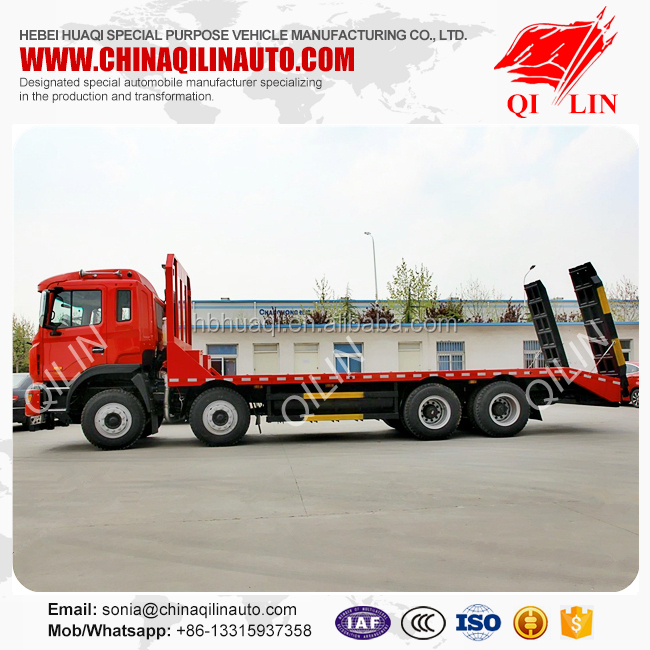

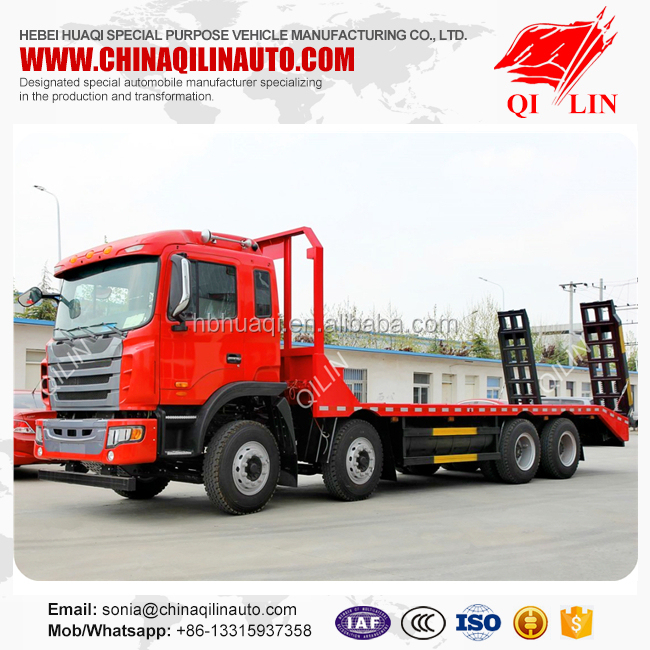

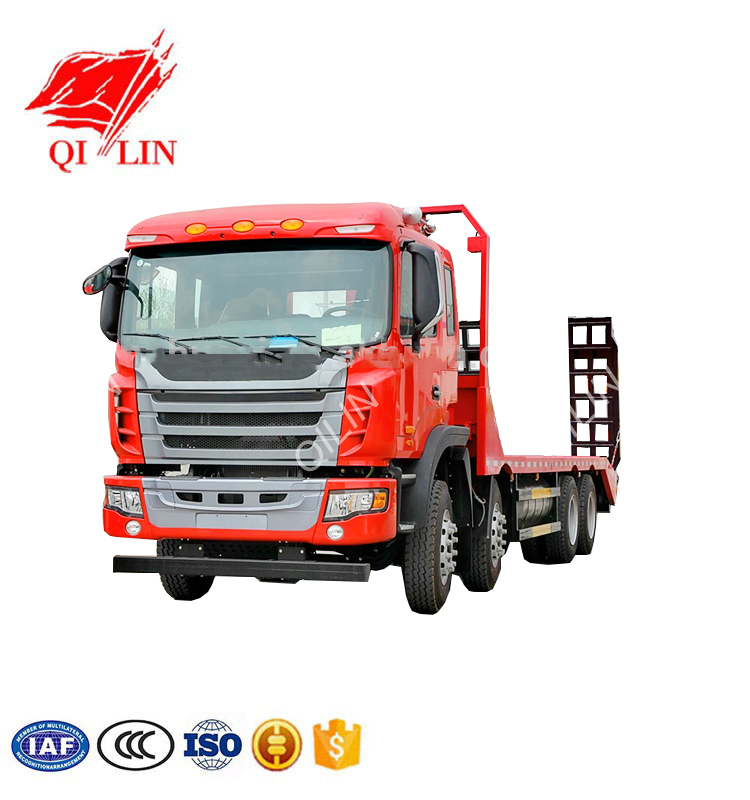

Product Image
