Brand

QI LIN

Name

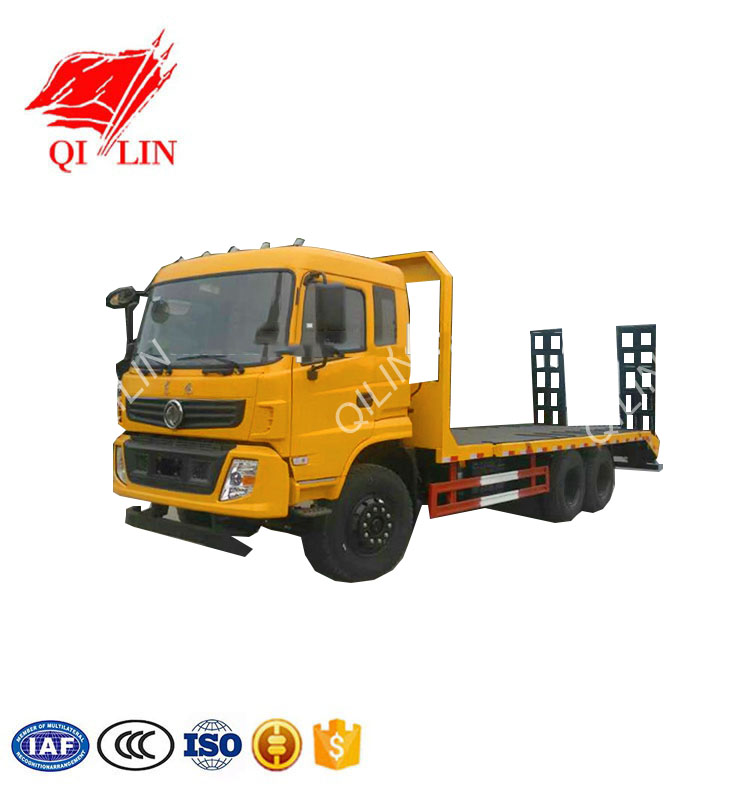

Low bed truck

Model

QLG5250TDP

Overall dimension

11900mmX2500mmX3110mm

Bottom edge height

500mm

Gross weight

25000kg

Curb weight

9980kg

Max payload

14825kg

Chassis specifications

Chassis brand

Dongfeng/Foton/JAC/Yuejin(optional)

Drive type

Left/Right hand drive(optional)

Drive wheel

6X4

Transmission

Manual,5 forward gears,1 backward gear.

Cab

3 passengers

Tire

10.00-20 18PR/10pcs

Axle

7000kg/18000kg payload/3pcs

Front/rear tread

1950mm/1860mm

Front/rear suspension

1250mm/3250mm

Wheelbase

4600mm+1350mm

Approach/departure angle

32°/10°

Leaf spring number

9/10

Engine

Commins/Yuchai/Chaocha/Weichai(optional)

Emission

Euro 2/3/4/5(optional)

Displacement

7255ml

Horse power

256hp

Braking system

With ABS system

Max speed

90km/h

Fuel type

Diesel

Electrical system

24 voltage,7 wire harness,LED lights.

Painting

With shot blasting and 4 layers painting,color is optional.

Remark

1.The above mentioned data is for your reference only.

2.The detailed specification will be subject to our final confirmation.
