PRODUCTS
Brand | QI LIN |
Name | Low bed truck |
Model | QLG5180TDP |
Overall dimension | 9000×2550×3240mm |
total weight | 18000kg |
Curb weight | 10305kg |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 4X2 |
Tire | 10.00R20 |
Front/rear tread | 1800mm/1810mm |
Front/rear suspension | 1400mm/2300mm |
Wheelbase | 4700mm |
Leaf spring number | 9/9+7 |
Engine | YC6JA180-30 |
Emission | Euro 3 |
Displacement | 6870ml |
Horse power | 180hp |
Maximum output | 132kw |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. |

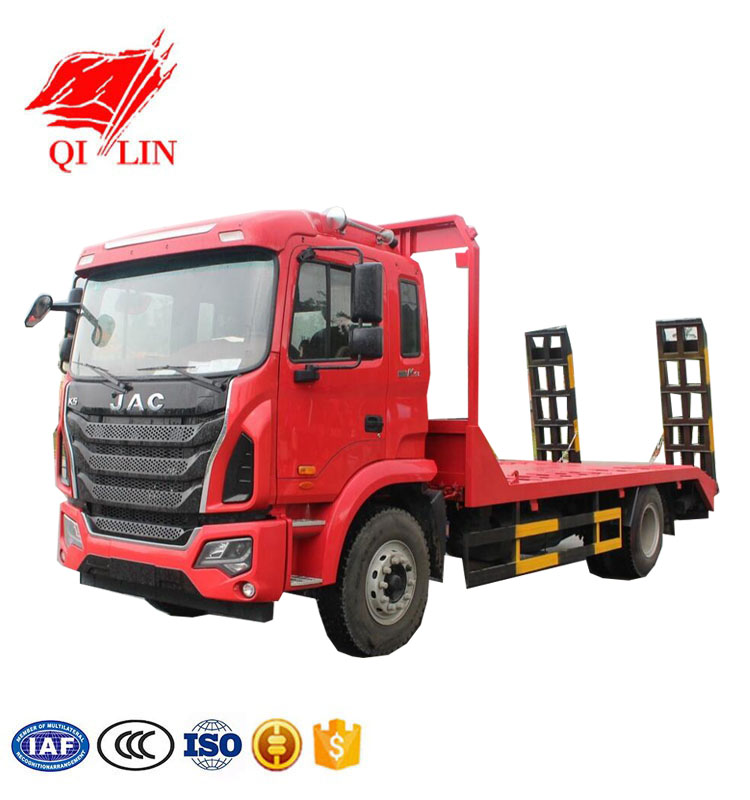

Product Image
