Brand | QI LIN |
Name | Low bed truck |
Model | QLG5040TDP |
Overall dimension | 5995x2350x2530mm |
total weight | 4495kg |
payload | 745kg |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 4X2 |
Tire | 7.50R16 6PR,8.25R16 6PR,7.00R16LT 8PR |
tire number | 6 |
Front/rear suspension | 1190mm/1405mm |
Wheelbase | 3400mm |
Leaf spring number | 9/10+8,3/9+7 |
Engine | YN38CRE1 |
Emission | Euro 3 |
Displacement | 3760ml |
Horse power | 129hp |
Maximum output | 95kw |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. | |

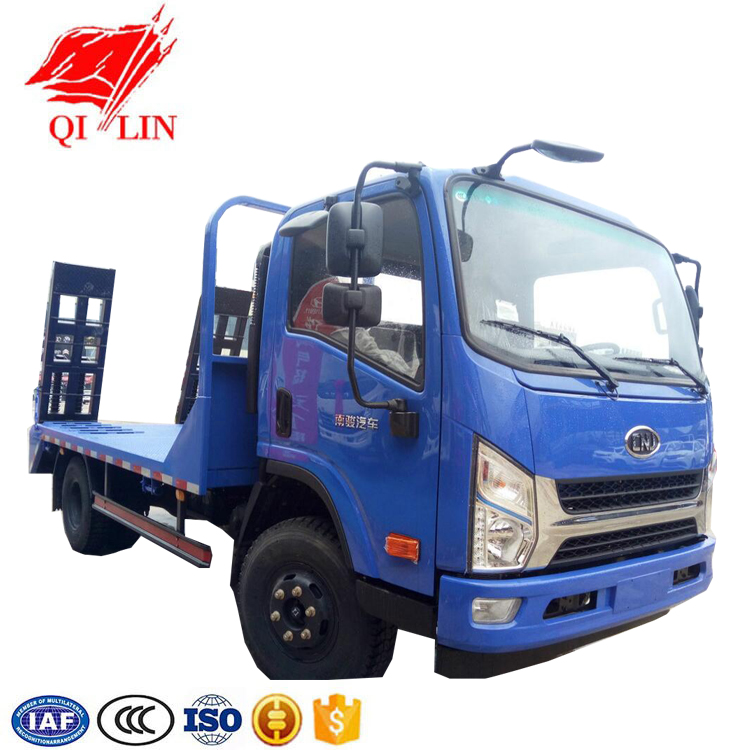

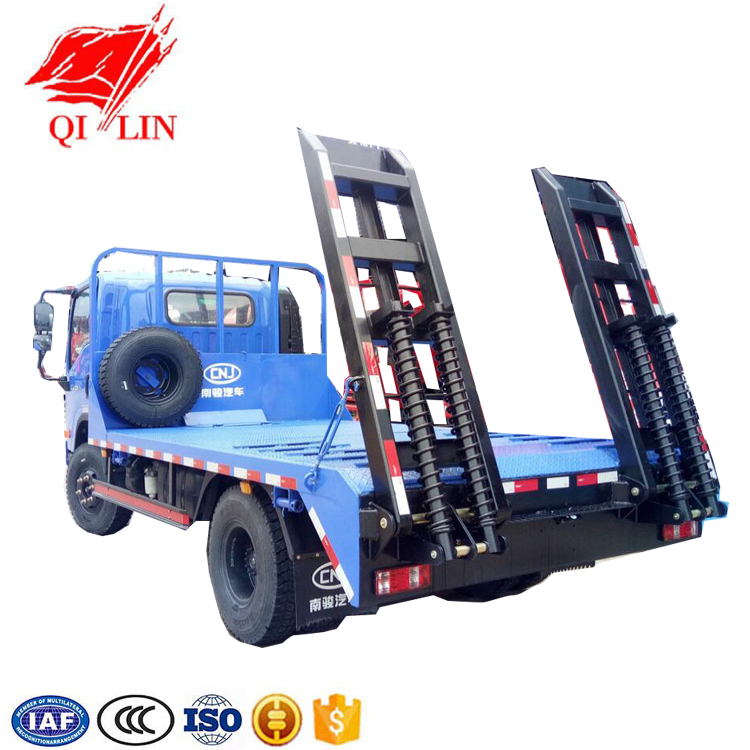

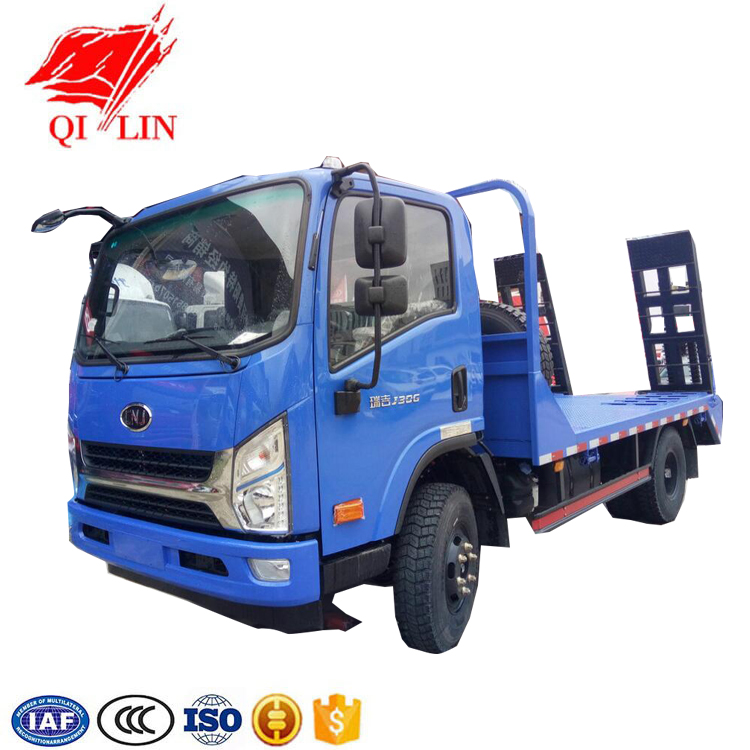

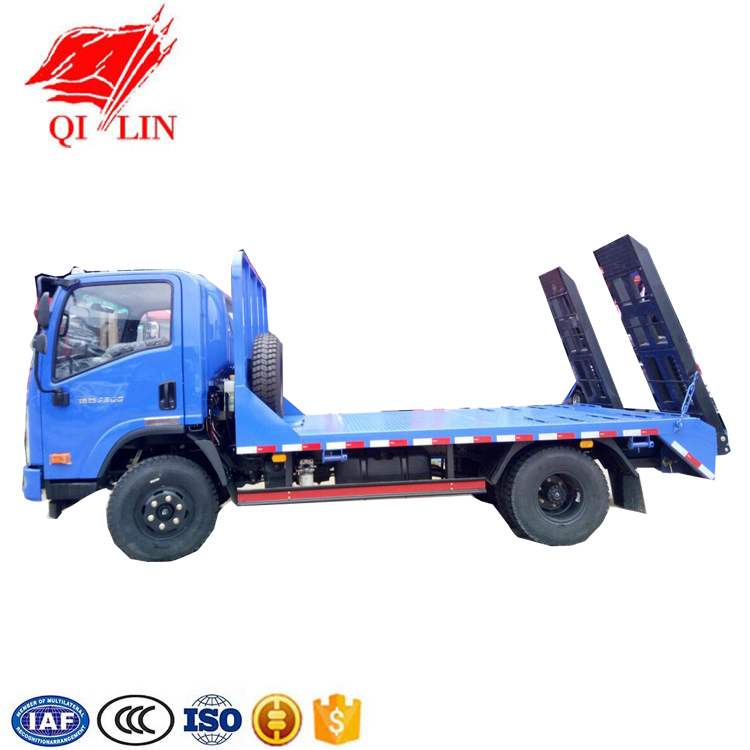

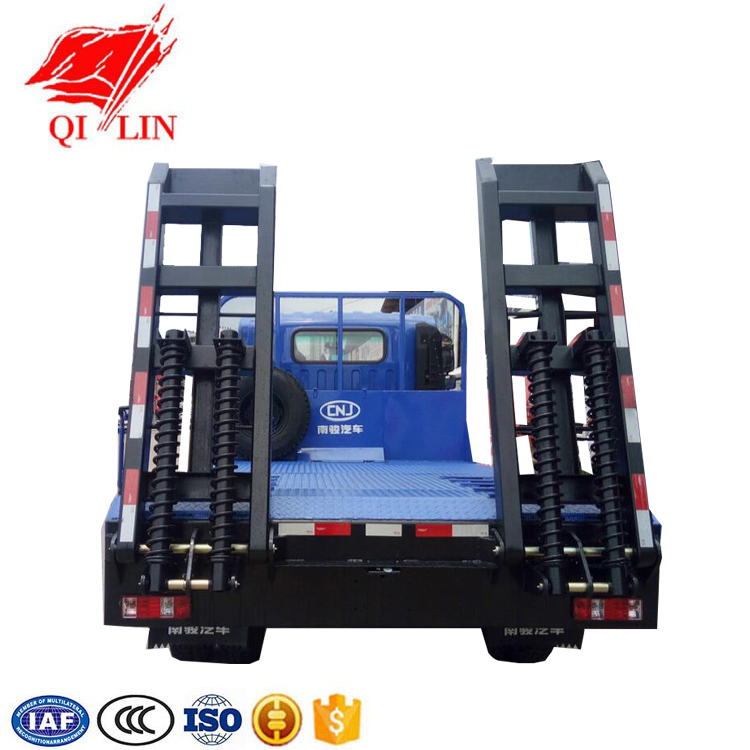

Product Image
