Brand | QI LIN |
Name | Low bed truck |
Model | QLG5140TDP |
Overall dimension | 7875x2310x2800mm |
total weight | 14060kg |
payload | 7995kg |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 4X2 |
Tire | 8.25R20 |
tire number | 6 |
Front/rear suspension | 1200mm/2625mm |
Front/rear tread | 1738mm;1650mm |
Wheelbase | 4050mm |
Leaf spring number | 12/12+9 |
Engine | 4DX23-140E3 |
Emission | Euro 3 |
Displacement | 3857ml |
Horse power | 143hp |
Maximum output | 105kw |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. |

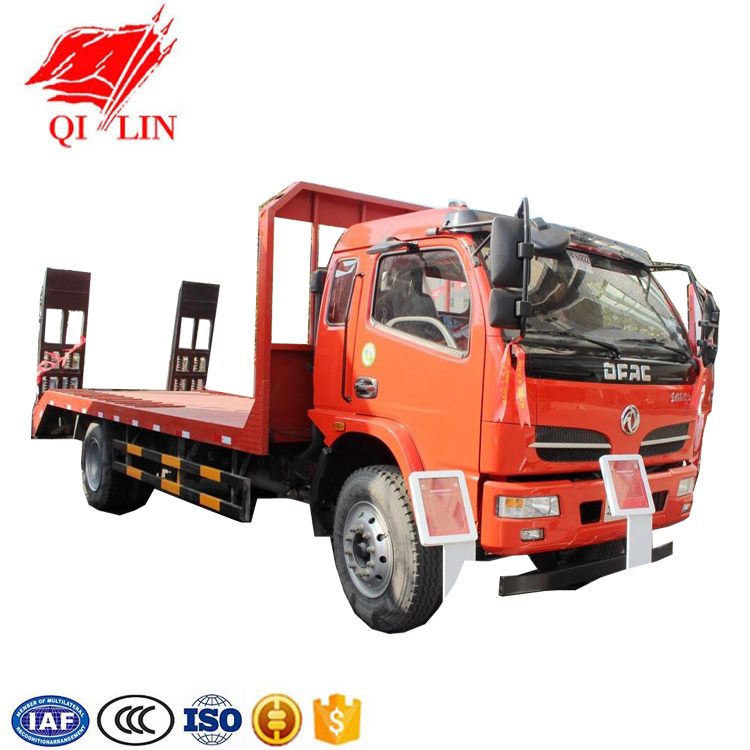

Product Image
