Overall Dimension | 9000mm*2500mm*3050mm | |||
Gross weight | 15800kg | Max Payload | 10000kg | |
Tires | 10.00R20 18PR/12pcs | |||
Brake system | With ABS system Customer’s Optional | |||
Leaf spring number | 9/9/12 | |||
Approach/departure angle | 27°/12° | |||
Transmission | Manual,9 forward gears,1 backward gear | |||
Axle payload | 6500kg/6500kg/17950kg | |||
Wheelbase | 1800mm+3800mm+1350mm | |||
Front/Rear Tread | 2040mm/1860mm | |||
Engine | Commins/Yuchai/Chaocha/Hino | |||
Emission | Euro 2/3/4/5(optional) | |||
Displacement | 9726 ml | |||
Painting | With shot blasting and 4 layers painting, Color is optional | |||
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |

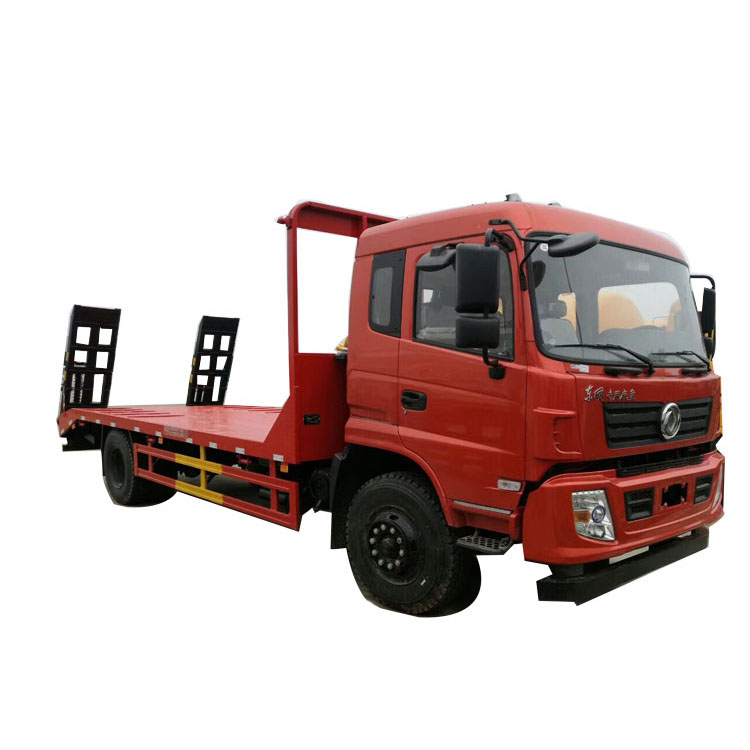

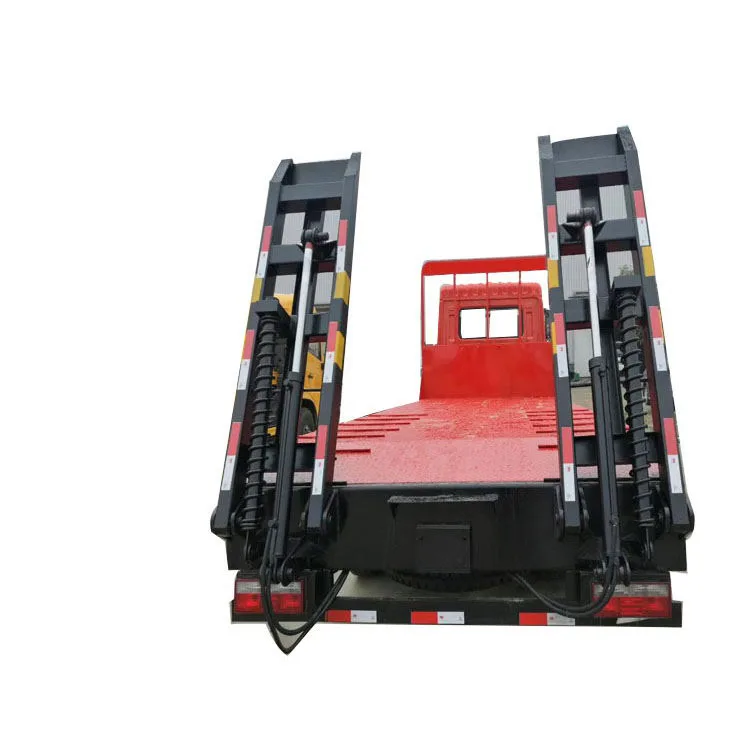

Product Image
