Brand | QI LIN | ||

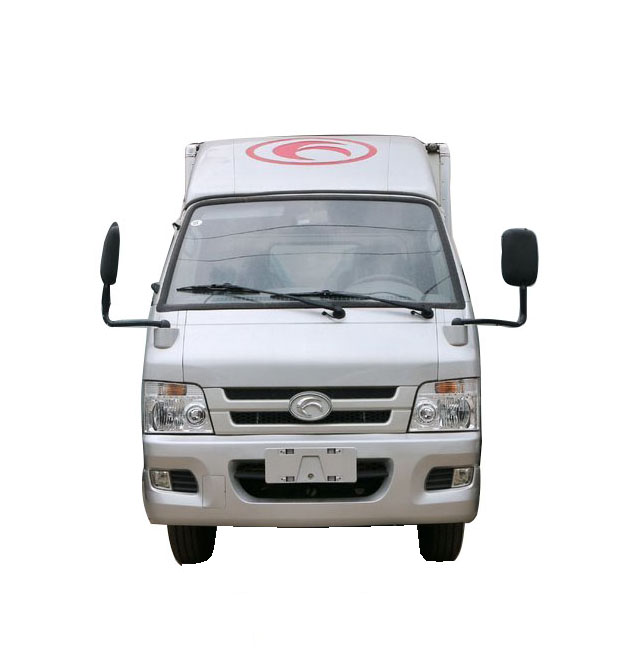

Name | mini van cargo trucks | ||
Model | BJ5032XXY-B4 | ||
Overall dimension | 5510mm*1760mm*2505mm | ||
Van dimension | 3670mm*1610mm*1700mm | ||
Gross weight | 3499kg | ||
Curb weight | 1619kg | ||
Max payload | 1750kg | ||
Chassis brand | FOTON /DONGFENG /optional | ||
Drive type | Left/right hand drive (optional) | ||
Drive form | 4*2 | ||
Transmission | Manual,5forward gears,1backward gears | ||
Cab | single row can 2 passengers | ||
Tire | 185R15LT 6 pcs tires | ||
Front/rear tread | 1345mm/1280mm | ||
Approach /departure angle | 16°/18° | ||
Wheelbase | 2600mm | ||
Cylinder number | 4 | ||
Engine model | QUANCHAI A15G | ||
Gear box | MR70 | ||
Displacement | 1.5L | ||
Fuel type | gasoline | ||
Horse power | 114hp | ||
Max speed | 110km/h | ||
Cab | single row cab 2 passengers | ||
Max output power | 84kw | ||
Front /rear axle payload | 1330kg/2169kg | ||
Transmission | manual | ||
Painting | With shot blasting and 4 layers painting,color is optional | ||
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. |
