Brand | QI LIN |

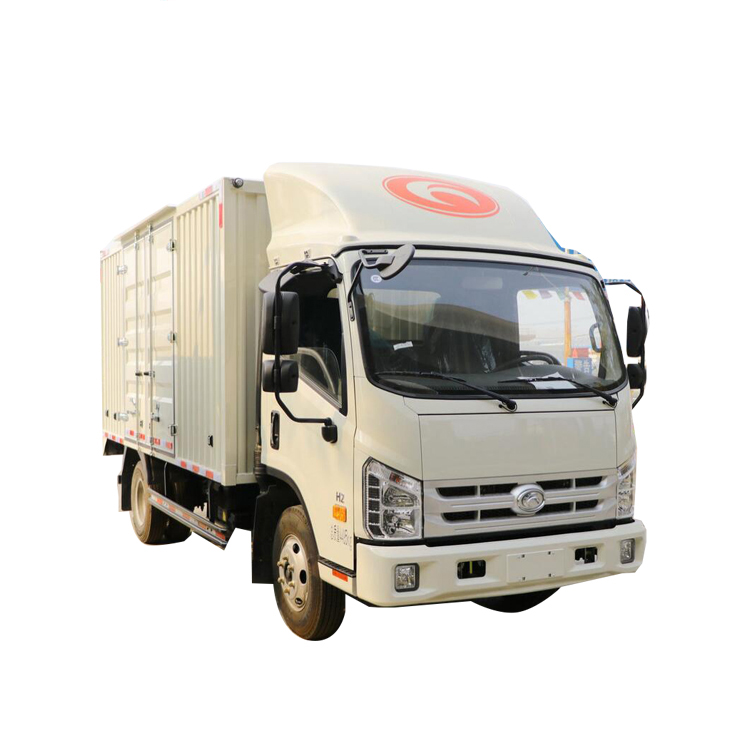

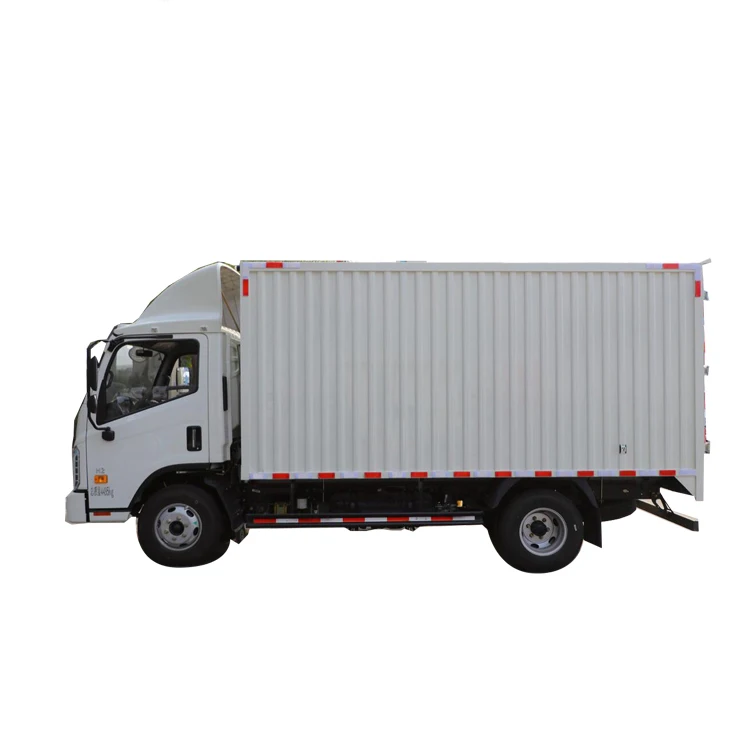

Name | Van cargo truck |
Model | QLG5043XXY-J7 |
Overall dimension | 5995mmX2180mmX3070mm |
Van dimension | 4150*2020*2000mm |
total weight | 4495kg |
Curb weight | 2805kg |
Max payload | 1495kg |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 4X2 |
Transmission | Manual,5 forward gears,1 backward gear. |
Cab | 3 passengers |
Tire | 7.00R16LT 8PR |
Front/rear tread | 1550mm;1590mm |
Front/rear suspension | 1150/1485mm |
Wheelbase | 3360mm |
Approach/departure angle | 21°/17° |
Leaf spring number | 4/6+7 |
Engine | 4B2-115C50 |
Emission | Euro 5 |
Displacement | 2545ml |
Horse power | 115hp |
Max speed | 90km/h |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation |
