Brand | QI LIN | ||

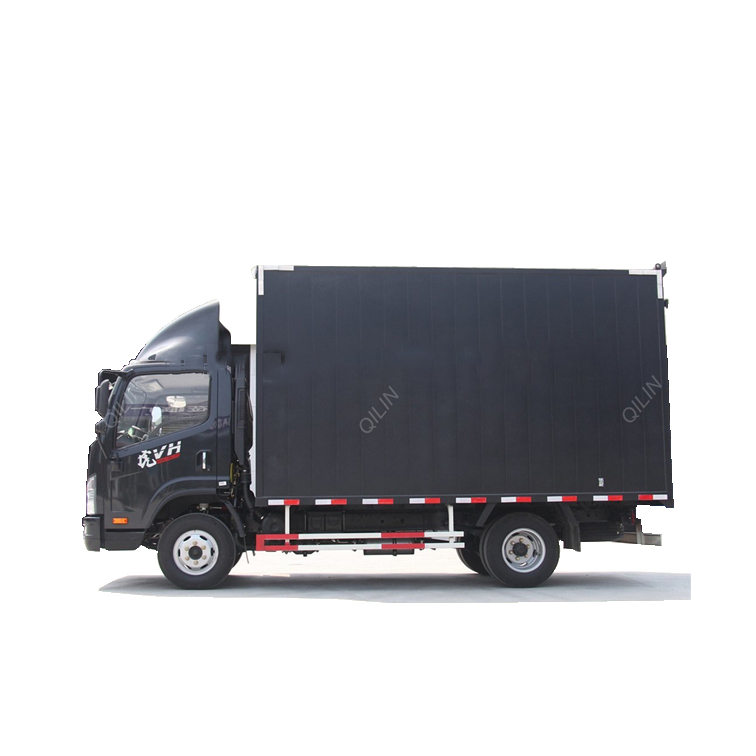

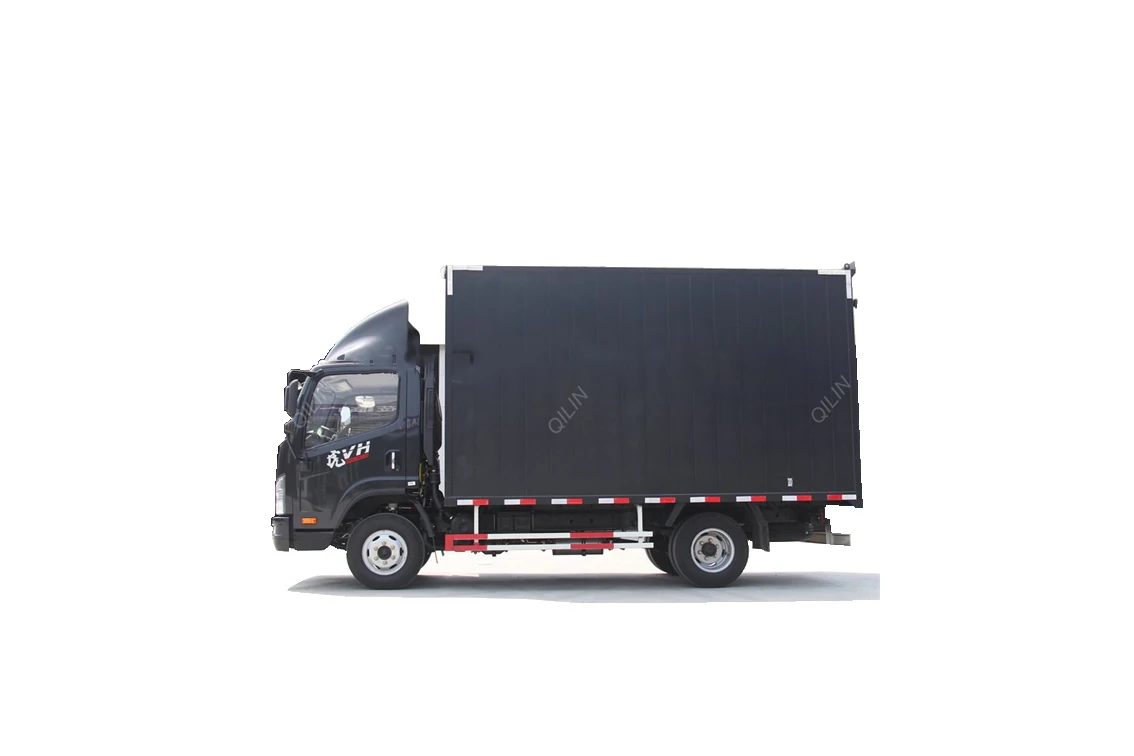

Name | Van cargo truck | ||
Model | QLG5041GSH | ||
Overall dimension | 5998mmX2470mmX3380mm | ||
Van dimension | 4210mmX2300mmX2300mm | ||
Gross weight | 4495kg | ||
Curb weight | 2805kg | ||
Max payload | 1495kg | ||
Chassis brand | FAW | ||
Drive type | Left/right hand drive (optional) | ||
Drive form | 4X2 | ||
Transmission | Manual,5 forward gears,1 backward gear | ||
Cab | Flat top,single row,3 passengers | ||
Tire | 7.00-16 10PR/6pcs | ||
Front/rear tread | 1650mm/1565mm | ||
Front/rear suspension | 1150mm/1548mm | ||
Wheelbase | 3300mm | ||
Approach/departure angle | 21°/17° | ||
Engine model | CA4DC3-12E5 | ||
Engine type | 4 cylinders,in-line,electronic control,water cooled | ||
Displacement | 3000ml | ||
Rated power | 91kw | ||
Horse power | 120hp | ||
Max speed | 110km/h | ||
Fuel type | Diesel | ||
Fuel tank | 120L | ||
Braking system | Air brake,ABS optional | ||
Electrical system | 24 voltage,7 wire harness,LED lights | ||
Painting | With shot blasting and 4 layers painting,color is optional | ||
Remark | The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation. | ||
