brand | QI LIN |

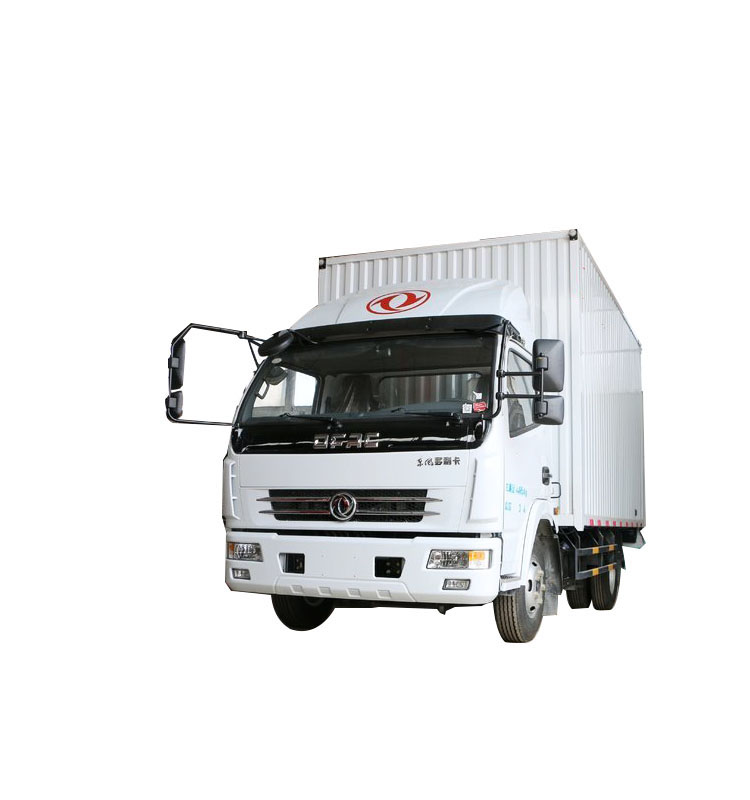

name | Van cargo truck |
model | EQ5041XXY88DBAC |
overall dimension | 5995*2420*3380 |
van dimension | 4170*2300*2300 |
gross weight | 4500 |
curb weight | 2805 |
max payload | 1500 |
chassis brand | DONGFENG |
drive type | left/right hand drive(optional) |
drive form | 4*2 |
transmission | manual,6 forward gears, 1 backward gears |
cab | one and a half cab |
tire | 7.50R16 7.00R16 |
front/rear tread | 1740/1610 |
front/rear suspension | 1130/1557 |
wheelbase | 3308 |
approach/departure angle | 20/14 |
engine model | QUANCHAI 4 B2-115C33 |
gear box | WANLIYANG 6 gears |
displacement | 2545 |
rated power | 85 |
horse power | 115 |
max speed | 103 |
fuel type | diesel |
axle number | 2 unit |
braking system | Air brake, ABS optional |
electrical system | 24 voltage,7 wire harness, LED lights |
painting | With shot blasting and 4 layers painting, color is optional. |
Remark
1.The above mentioned data is for reference only.
2.The detailed specification will be subject to our final confirmation.
