| brand | QI LIN |

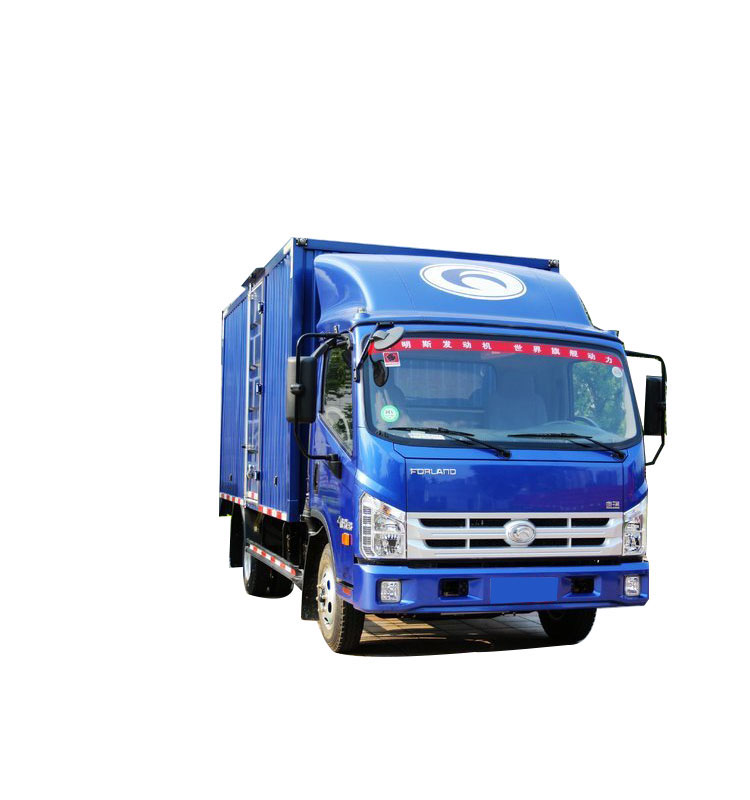

| name | van cargo truck |
| model | 8J5043XXY-J7 |
| overall dimension | 5995*2250*3175 |
| van dimension | 4150*2100*2100 |
| gross weight | 4500 |
| curb weight | 2805 |
| max payload | 2000 |
| chassis brand | FOTON/DONGFENG/JAC optional |
| drive type | left/right hand drive(optional) |
| drive form | 4*2 |
| transmission | manual, 5 forward gears, 1 backward gears |
| cab | single row cab 3 passengers |
| tire | 7.50R16 7.00R16 |
| front/rear tread | 1715/1630 |
| front/rear suspension | 1150/1485 |
| wheelbase | 3360 |
| approach/departure angle | 21/17 |
| engine model | FOTON CUMMINS ISF 2.8S5129T |
| gear box | WLY5TS32 |
| displacement | 2780 |
| rated power | 96 |
| horse power | 131 |
| max speed | 120 |
| fuel type | Diesel |
| axle number | 2 unit |
| braking system | Air brake, ABS optional |
| electrical system | 24 voltage, 7 wire harness, LED lights |
| painting | with shot blasting and 4 layers painting, color is optional |
Remark
1.The above mentioned data is for your reference only.
2.The detailed specification will be subject to our final confirmation.
