| brand | QI LIN |
| model | QLG5049GSH |

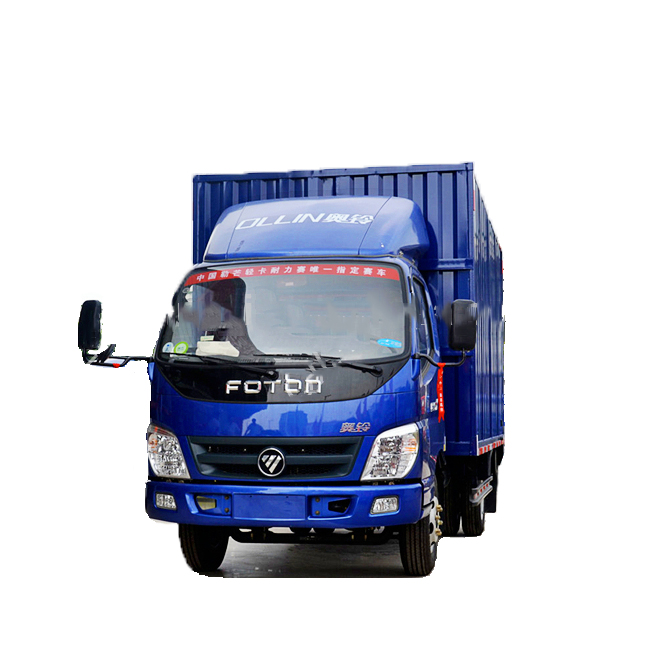

| name | van cargo truck |
| tonnage level | light duty |
| overall dimension | 5995*2200*2900 |
| van dimension | 4165*2050*2100 |
| gross weight | 4330 |
| curb weight | 2705 |
| max payload | 1495 |
| max speed | 95 |
| painting | with shot blasting and 4 layers painting, color is optional. |
| chassis brand | Foton |
| drive type | left hand drive |
| drive form | 4*2 |
| cab | 1995mm width, 3 passengers, air conditioner optional. |
| transmission | manual, 5 forward gears, 1 backward gear. |
| wheelbase | 3360 |
| front/rear suspension | 1120/1515 |
| front/rear tread | 1530/1485 |
| front/rear axle payload | 1320/3010 |
| rear axle speed ratio | 6.142 |
| tire | 7.00R16/6pcs |
| leaf spring number | 3+1/6+7 |
| approach/departure angle | 21/17 |
| braking system | with ABS system |
| electrical system | 24 voltage, 7 wire harness, LED lights. |
| engine brand | Foton |
| engine type | 4 cylinders, vertical, inline, water cooled. |
| displacement | 2771 |
| horsepower | 108 |
| torque | 280N.m |
| maximum torque speed | 1700-2300RPM |
| rated rotor speed | 3600RPM |
| fuel type | Diesel |
| fuel tank | plastic material, 80L |
Remark
1.The above mentioned data is for your reference only.
2.Our company will manufacture the produce according to your requirements.
3.The detailed specifications will be subject to our final confirmation.
