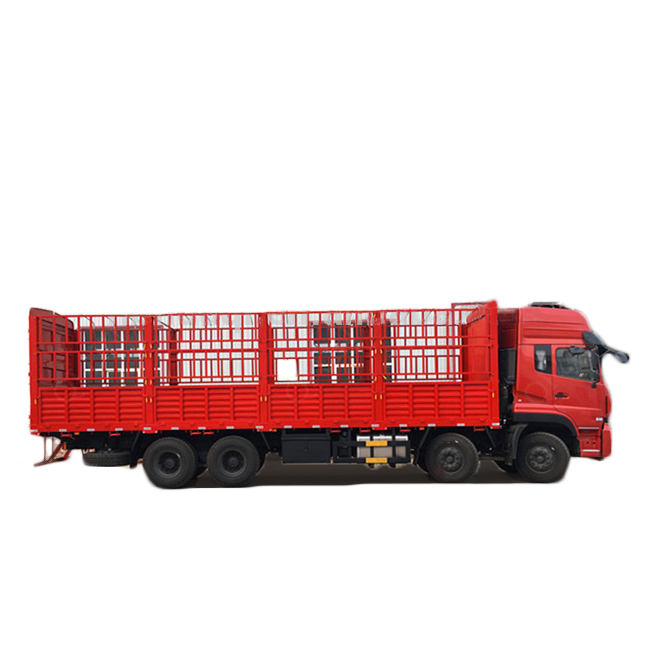

PRODUCTS
brand | QI LIN |
model | QLG5253CCY |
function | load light cargo |
total weight | 31000 |
curb weight | 13045 |
max payload | 17825 |
overall dimension | 12000*2500*3900 |
van dimension | 9600*2400*800 |
down edge height | 430 |
axle number | 4 pcs |
axle load | 6500/6500/18000 |
tire number | 12 pcs |
front/rear tread | 1965/1860 |
front/rear suspension | 1450/2100 |
wheelbase | 2050+4000+1350 |
approach/departure angle | 22/13 |
braking system | with ABS system |
max speed | 90 |
passenger limit | 3 persons |
fuel type | diesel |
electrical system | 24 voltage, 7 wire harness |
light | LED type |
painting | with shot blasting and 4 layers painting, color is optional |
remark | The above mentioned data is for your reference only The detailed specification will be subject to our final confirmation |
