| brand | QI LIN |

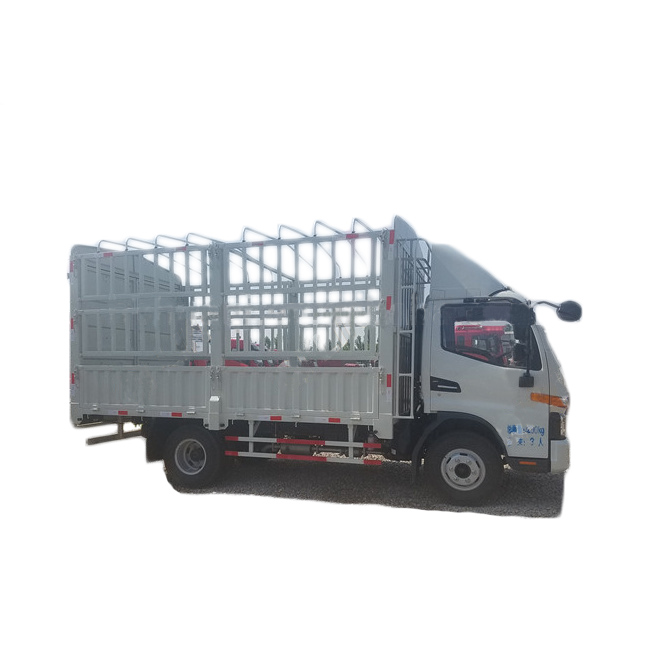

| name | stake van truck |
| model | QLG5046CCY |
| overall dimension | 5995*2180*3150 |
| van dimension | 4180*400*2080 |
| gross weight | 4290 |
| curb weight | 2600 |
| max payload | 1500 |
| chassis brand | dongfeng /foton/jac(optional) |
| dirve type | left/right hand drive(optional) |
| drive wheel | 4*2 |
| transmission | manual, 5 forward gears, 1 backward gear |
| cab | 3 passengers |
| tire | 8.25-16LT 6PR/6pcs |
| front/rear axle | 1540/2750 |
| front/rear tread | 1695/1705 |
| front/rear suspension | 1100/1495 |
| wheelbase | 3300 |
| approach/departure angle | 22/18 |
| leaf spring number | 9/10+8 |
| engine | Commins/Yuchai/Chaochai(optional) |
| emission | euro 2/3/4(optional) |
| displacement | 3184 |
| horse power | 140 |
| braking system | with ABS system |
| max speed | 95 |
| fuel type | diesel |
| electrical system | 24 voltage, 7 wire harness, LED lights |
| painting | with shot blasting and 4 layers painting, color is optional. |
| remark | The above mentioned data is for your reference only The detailed specification will be subject to our final confirmation |
