150 horsepower cargo truck for hot sale
Vehicle dimensions | |
Brand | QI LIN |
Name | Stake van truck |
Model | QLG5046CCY |
Overall dimension | 5998mm*2550mm*3310mm |
Van dimension | 4290mm*2380mm*1900mm |
Gross weight | 4495kg |
Curb weight | 2720kg |
Max payload | 1580kg |
Chassis specifications | |
Chassis brand | Jiefang/Dongfeng/Foton/JAC(optional) |
Drive type | Left/Right hand drive(optional) |
Drive wheel | 4X2 |
Transmission | Manual,5 forward gears,1 backward gear. |
Cab | 3 passengers |
Tire | 8.25-16LT 6PR/6pcs |
Front/rear axle | 1850kg/2645kg |
Front/rear tread | 1695mm/1705mm |
Front/rear suspension | 1100mm/1495mm |
Wheelbase | 3300mm |
Approach/departure angle | 22°/18° |
Leaf spring number | 9/10+8 |
Engine | Commins/Yuchai/Chaochai(optional) |
Emission | Euro 2/3/4/5(optional) |
Displacement | 3184ml |
Horse power | 115hp |
Braking system | With ABS system |
Max speed | 115km/h |
Fuel type | Diesel |
Electrical system | 24 voltage,7 wire harness,LED lights. |
Painting | With shot blasting and 4 layers painting,color is optional. |
Remark | |
1.The above mentioned data is for your reference only. | |
2.The detailed specification will be subject to our final confirmation. |

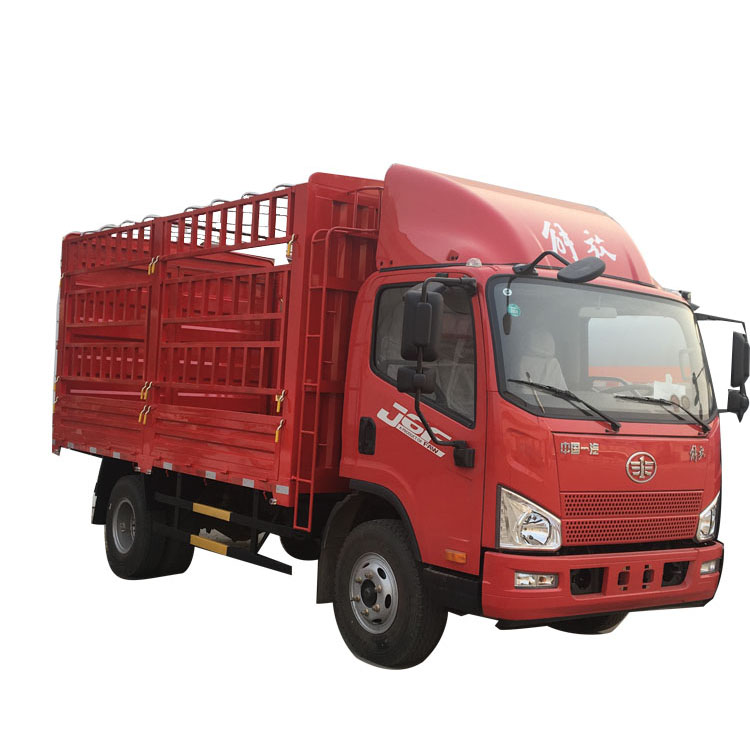

Product Images
